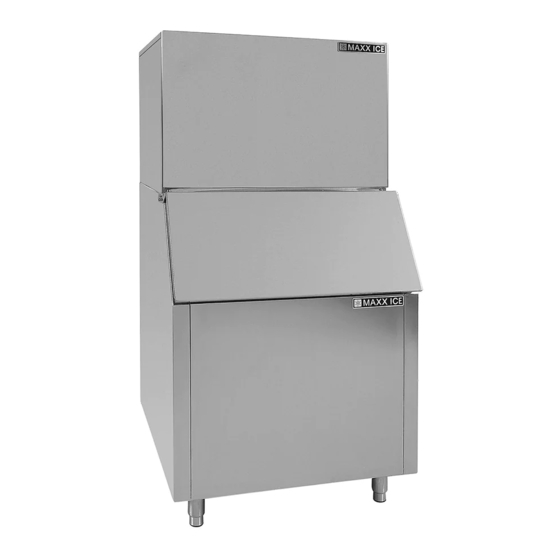

Maxx Ice MIM600 Service Manual
Automatic ice maker
Hide thumbs
Also See for MIM600:
- User manual (24 pages) ,
- Service, installation, and instruction manual (56 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Maxx Ice MIM600
Summary of Contents for Maxx Ice MIM600

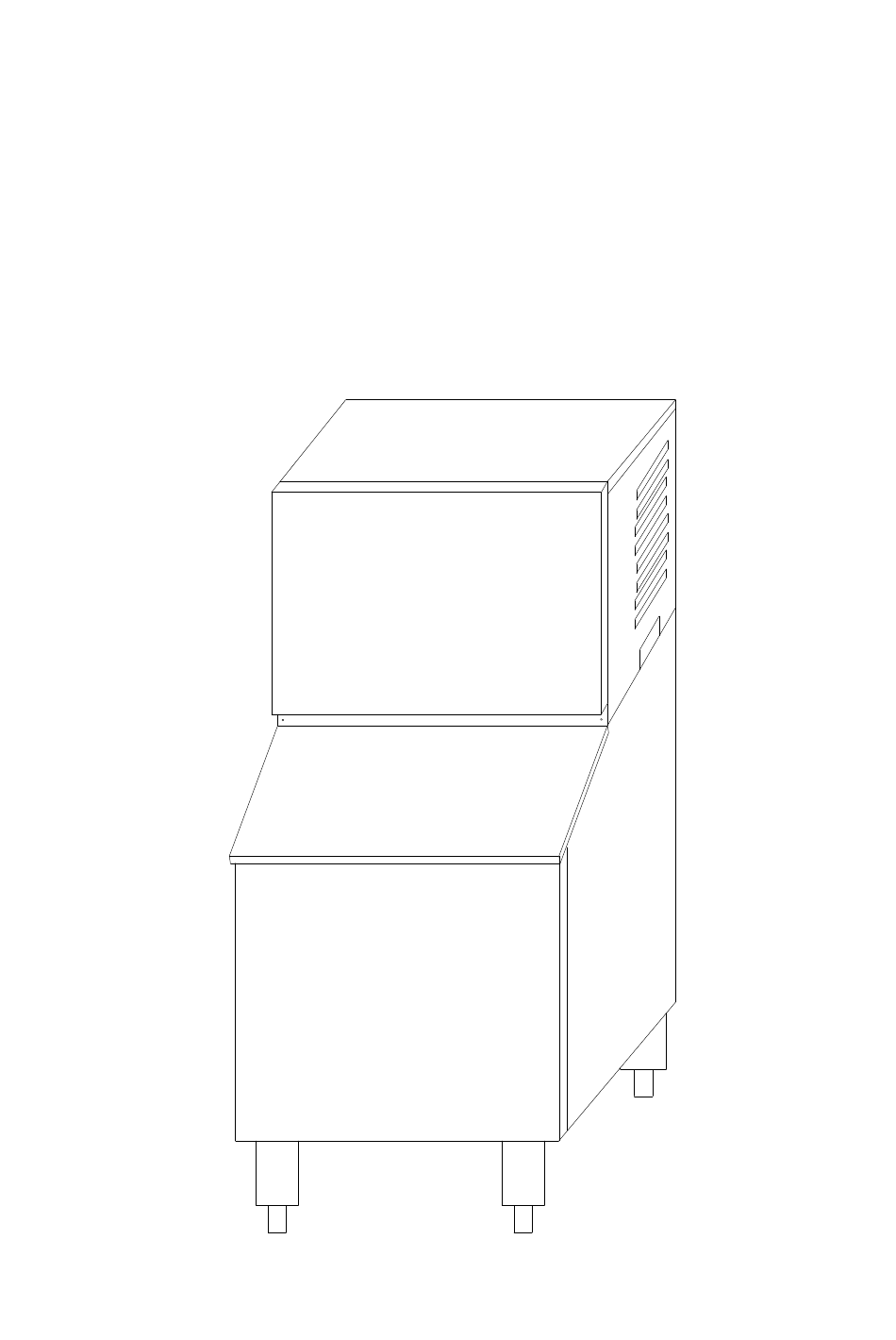

- Page 1 Automatic Ice maker Service manual MIM452 MIM600 MIM1000...
-
Page 2: Table Of Contents
Table of contents Installation Guidelines ---------------------------------------------------------3 How the Ice Maker Works ----------------------------------------------------4 Water System --------------------------------------------------------------------7 Wiring Connections and Controller ------------------------------------------9 Exploding Drawing -------------------------------------------------------------12 TroubleShooting ----------------------------------------------------------------14 Before Maintenance ------------------------------------------------------------14 Basic Checking ------------------------------------------------------------------14 TroubleshootingGuide ----------------------------------------------------------15 Adjustment and Replacement -------------------------------------------------20 Advanced component troubleshooting techniques --------------------------21 Spare parts list ------------------------------------------------------------------- 28... -
Page 3: Installation Guidelines
Installation Guidelines Note: Installation should be performed by a trained Service Technician. For proper operation of the ice machine, the following installation guidelines must be followed. Failure to do so may result in loss of production capacity, premature part failures, and may void all warranties. -
Page 4: How The Ice Maker Works
8. Oil the fan motor if the motor has an oil fitting. Cleaning and Sanitizing Harvest problems may occur if the following procedures are not performed every 6 months. 1. Remove the ice machine front panel. 2. Make sure that all the ice is off of the evaporator. If ice is being made, wait for cycle completion, then turn the machine “OFF”... - Page 5 Cooling System...
- Page 6 ITEM NO DESCRIPTION Compressor Discharge tube Cu three ways Condenser Drier and filter Capillary tube Connection tube Hot gas valve Hot gas tube Evaporator (Ice Mold) Fan blade(φ200X28°) Suction pipe Motor 5W Motor 10W Temperature sensor of the evaporator Temperature sensor of the condenser Controller During the icemaking stage, the hot gas solenoid valve is closed.
-
Page 7: Water System
Water System ITEM NO DESCRIPTION Water supply pipe Water inlet connector Nut of water inlet tube Supporting tube Water pump inlet tube Nut of water inlet tube Floater valve Water trough Water pump Water pump outlet tube Water distribution tube Evaporator (Ice Mold) Ice full sensor Drain pipe connector... - Page 8 float valve until the water level in the trough closes the valve. During the icemaking stage, water is pumped from the water trough to the water distribution tube. The distributed water flows over the surface of the cold evaporator where the purest water is converted to ice. The unfrozen water returning to the trough.
- Page 9 Wiring Connection :...
- Page 10 Circuit Description 1. Electrify Status For The First Time As the icemaker is properly installed. switch on the water tap, let the water trough full (reach on the level), then turn the Power switch to the ON position on the back panel. The icemaker will start working automatically In this status, the time is fixed about 3 minutes.
- Page 11 When green LED and yellow LED is lit, it means the unit is working in the cold preservation stage . 4.Red LED: power indicator light. The power is on when the red LED is lit. 5. Mode button: Mainly for service. When this button is pressed, it can change from ice making mode to ice harvest mode, or from ice harvest mode to ice making mode.
-
Page 12: Exploding Drawing
Exploding Drawing... - Page 13 ITEM DESCRIPTION front panel inner front panel Ice full probe inner foam front panel Ice full sensor evaporator water trough front inner right panel back inner right panel right panel Floater valve support fan motor capacitor (6uf) Condenser fan motor fan motor support Water inlet pipe Water outlet pipe screw...
- Page 14 Control box upper support control box lower support left back panel left front panel compressor base left panel knob compressor base support Water distributor tube Water out of pump water pump support Water pump Drain pipe Drain pipe connector Drain pipe hex nut Drain pipe stopple Drain pipe screw Evaporator sensor line...
-
Page 15: Troubleshooting
Troubleshooting ELECTRICAL SHOCK HAZARD Disconnect Electrical Power Before Beginning Removal of Parts Before Maintenance 1. Be sure the electrical supply is 115 VAC, 60Hz, 15A and is properly grounded to protect maintenance personnel against electrical shock. 2. Are any electrical leads loose? Danger of short circuit? If so, disconnect power. Basic Troubleshooting Some problems can be pinpointed through the service technician’s senses of hearing, sight and touch. -
Page 21: Adjustment And Replacement
Adjustment and Replacement Replace Control box, fuse and the sensor of temperature ELECTRICAL SHOCK HAZARD Disconnect Electrical Power Before Beginning Removal of Parts Replacing Control Box Fuse and Temperature Sensor Remove the rear cover and the louvered front panel or the side panel on a modular unit. Locate the electronic control box in the unit. -
Page 22: Advanced Component Troubleshooting Techniques
3. Replacing the hot gas valve, drier and evaporator Remove the top panel. Locate the drier and hot gas valve, open weld, replace the drier and hot gas valve, weld, recover refrigerant, evacuate and weigh in the charge on the nameplate. Reverse the above steps to reassemble. - Page 23 Compressor Check Compressor and Start Components The compressor should run during the entire cycle. If the machine is in the ON position but the compressor is not running, check the compressor contactor to see if it is engaged. If the contactor is not engaged, the problem is not with the compressor or the compressor start components.
- Page 24 Thermostatic Expansion Valve (TXV) The thermostatic expansion valve meters the flow of refrigerant into the evaporator changing its state from a highpressure liquid to a lowpressure liquid. This drop in pressure causes the refrigerant to cool. The cooled refrigerant absorbs heat from the water circulating over the evaporator. As the evaporator fills with liquid refrigerant, the evaporator becomes colder.
- Page 25 functioning properly. If the hot gas valve leaks during the freeze cycle, ice will not form on the top of the evaporator and suction pressure will be higher than normal. To check if the hot gas valve is leaking, let the machine run in the freeze cycle for approximately 5 minutes. Now feel the temperature between the inlet and outlet of the valve.
- Page 26 where the temperature and pressure of the vapor are increased. The high temperature, high pressure vapor flows to the condenser where the heat is removed, causing the vapor to return to the liquid form, making the refrigerant ready to flow back to the evaporator to pick up more heat. ice machine use R134a or R404a refrigerant.
- Page 27 Bin Control Operation The bin control is used to shut the machine off when the bin fills with ice. The bin control must be checked upon installation or initial startup and when performing maintenance. Adjustments are notcovered under warranty. There is one bin switch for each evaporator. The actuator arm of the bin switch comes in contact with the splash curtain.
-
Page 28: Spare Parts List
Spare parts list Material Code Item No. English Description 1864802401 Water trough 1880001701 Floater valve 1864600404 Water curtain 1858904400 Water pump 1880025700 Evaporator 1880002401 Water distributor tube 1854000600 Power switch 1854201200 Button control panel 1854202300 Main control panel 19.1 1854800300 Fuse 19.2 1851700700...
