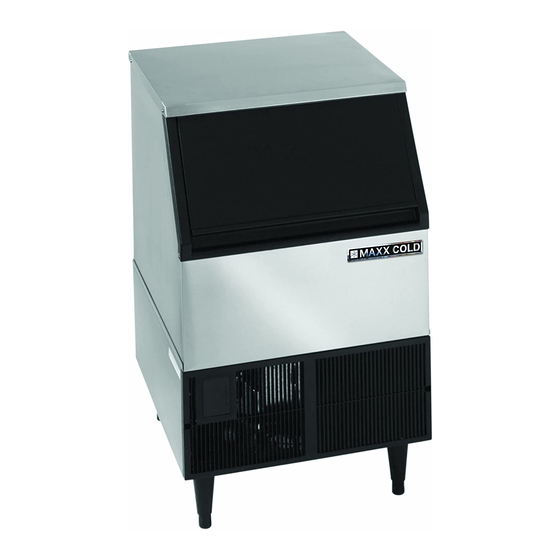

Maxx Ice MIM250 User Manual

Ice cube machine
Hide thumbs Also See for MIM250:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
A U T OMA T I C
I CE CU B E MA CH I N E
U s e r ' s Ma n u a l
Mo d e l s : MI M2 5 0
* B e s u r e t h e i c e ma c h i n e h a s b e e n s t a n d i n g u p r i g h t f o r a t l e a s t 2 4 h o u r s p r i o r t o p l u g i n .

Advertisement

Table of Contents
loading

Related Manuals for Maxx Ice MIM250

Summary of Contents for Maxx Ice MIM250

  • Page 1 A U T OMA T I C I CE CU B E MA CH I N E U s e r ’ s Ma n u a l Mo d e l s : MI M2 5 0 * B e s u r e t h e i c e ma c h i n e h a s b e e n s t a n d i n g u p r i g h t f o r a t l e a s t 2 4 h o u r s p r i o r t o p l u g i n .

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Page ICE MAKER SAFETY........................2 IMPORTANT SAFEGUARDS ....................2 - 4 TECHNICAL INFORMATION ....................5 INTRODUCTION .........................5 COMPONENT LOCATIONS ........................ICE MAKER INSTALLATION 7 - 11 ......................Unpacking ..........................7 Installing the Adjustable Feet ....................7 Installing the Stability Brackets ......................Location Requirements ....................

  • Page 4: Ice Maker Safety

    IMPORTANT SAFEGUARDS Before the ice maker is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. Maxx Ice strongly recommends that you have a professional install your new machine. The warranty may be affected or voided by an incorrect installation. To reduce...
  • Page 5  Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter, and do not use an extension cord.  It is recommended that a separate circuit, serving only your ice maker, be provided. Use receptacles that cannot be turned off by a switch or pull chain.

  • Page 6: Save These Instructions

    batch of cubes must be discarded.  If the ice maker will not be used for a long time, before the next use it must be thoroughly cleaned. Follow carefully any instructions provided for cleaning or use of sanitizing solution. Do not leave any solution inside the ice maker after cleaning.

  • Page 7: Technical Information

    Asbury Foodservice assumes no liability or responsibility of any kind for products manufactured by Maxx Ice that have been altered in any way, including the use of any parts and/or other components not specifically approved by Asbury Service Warranty & Parts. Maxx Ice reserves the right to make design changes and/or improvements at any time.

  • Page 8: Component Locations

    Component Locations Top panel Door Evaporator (ice mold) Bin full probe Water tank Water tank screw nut Ice storage bin Front bottom louver Control panel cover Adjustable foot Top view Back view Water inlet 3/8” FPT (Female Pipe Thread) Power supply line Ice maker drain 1/2”...

  • Page 9: Ice Maker Installation

    Ice Maker Installation Unpacking Remove packaging materials IMPORTANT: Do not remove any permanent instruction labels or the data label on your ice maker. Remove tape and glue from your ice maker before using,  To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers.

  • Page 10: Installing The Stability Brackets

    Installing the stability brackets This operation requires at least two persons. If you wish to install the ice maker in a free-standing mode rather than enclosed, it is necessary to attach the two metallic stability brackets that can be found packed inside the ice storage bin. Keeping the machine tilted to the right, but not more than 45˚, attach one bracket to the center of the underside of the ice maker with two screws (supplied).

  • Page 11: Electrical Requirements

     To ensure proper ventilation for your ice maker, the front of the unit must be completely unobstructed.  When installing the ice maker under a counter, follow the recommended spacing dimensions shown. Allow at least 6” (150 mm) clearance at rear, and 1” (25 mm) at the sides and at the top for proper air circulation.

  • Page 12: Leveling The Ice Maker

    Before you move your ice maker into its final location, it is important to make sure you have the proper electrical connection. A standard electrical supply, properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required. The ice maker should always be plugged into its own individual electrical outlet.

  • Page 13: Installation Types

    IMPORTANT: 1. All installations must be in accordance with local plumbing code requirements. Professional installation is recommended. 2. Water inlet fitting: 3/8” FPT (Female Pipe Thread); drain line connection: 1/2” FPT. 3. Make certain you have a suitable water supply hose and two suitable drain hoses, and that the hoses are not pinched, kinked or damaged during installation.

  • Page 14: Operation

    Operation Final Check List before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the ice maker? 2. Did you clean the ice storage bin? (See pages 15 - 17.) 3. Have the installation instructions been followed, including connecting the machine to water and electricity? 4.

  • Page 15: How The Machine Makes Ice

     Never turn the water supply tap off when the ice maker is working.  Never touch the evaporator when the machine is running.  Except to take ice from the unit, keep the door closed to reduce melting and insure proper ice formation.

  • Page 16: Preparing The Ice Maker For Long Storage

     You may hear air being forced over the condenser by the condenser fan.  During the Harvest cycle, you may hear the sound of ice cubes falling into the ice storage bin. Preparing the Ice Cube Machine for Long Storage If the ice cube machine will not be used for a long time, or it is to be moved to another place, it will be necessary to drain the system of water.

  • Page 17: Exterior Cleaning

    Exterior Cleaning Commercial grades of stainless steel are susceptible to rusting if not properly maintained. It is important that you properly care for the stainless steel surfaces of your ice machine and bin to avoid the possibility of rust or corrosion. Use the following recommended guidelines for keeping your stainless steel looking like new: 1.

  • Page 18: Interior Cleaning

    Interior Cleaning It is the USER’S RESPONSIBILITY to see that the unit is properly maintained. It is always preferable and less costly in the long run, to avoid possible down time by keeping it clean and adjusted as needed; and by replacing worn components before they can cause failure. The following is a list of recommended maintenance that will help keep the machine running with a minimum of problems.

  • Page 19: Sanitizing The Ice-Making System

    machine splash areas, plus the interior surfaces of the bin, deflector and door with the remaining sanitizing solution. Inspect to insure that all functional parts, fasteners, thermostat bulbs (if used), etc. are in the correct position. 12. Press the Clean button for 6 seconds and the water will be purged and the green and yellow LEDs will be blinking together.
  • Page 20 Push the control panel cover to open it. The control panel includes one power switch, one button, one adjustable screw and four indicator lights. Operation of the control panel: 1. When the unit is plugged in and the power switch is turned on, the power indicator and the other three indicator lights are all on.
  • Page 21 5. Power Switch: This is the main switch. When it is turned on, the unit goes into Stand-by mode for about 3 minutes, with all LEDs on, then starts to make ice cubes automatically, switching between ice-making and ice harvest modes. 6.

  • Page 22: Troubleshooting

    Troubleshooting Before Calling for Service If the unit appears to be malfunctioning, read through the OPERATION section of this manual first. If the problem persists, check the Troubleshooting Guide below and on the following page. The problem may be something very simple that can be solved without a service call. Possible Cause Probable Solution Problem...
  • Page 23 Possible Cause Probable Solution Problem The electricity is off. Reconnect the power supply line. Cut off the electricity; let the ice The room temperature is out of the maker stop working until the The ice maker stops stated temperature range. temperature returns within the suddenly while stated range.
  • Page 24 MA X X I C E 3 3 5 5 E n t e r p r i s e A v e n u e , S u i t e 1 6 0 We s t o n , F l o r i d a 3 3 3 3 1 T e l : 9 5 4 - 2 0 2 - 7 4 1 9 - F a x : 9 5 4 - 2 0 2 - 7 3 3 7...
