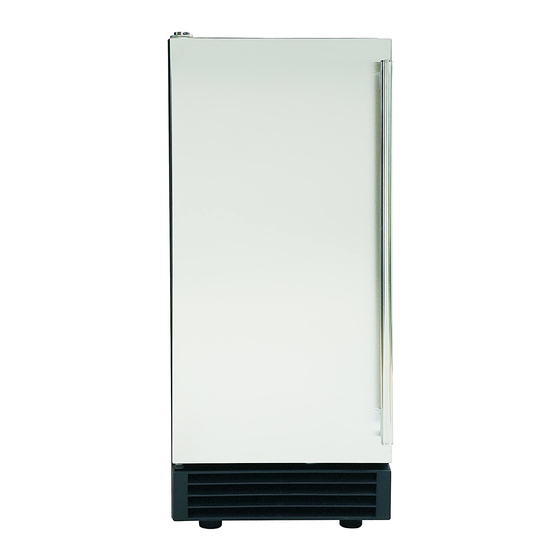

Maxx Ice MIM50 Instruction Manual
Hide thumbs
Also See for MIM50:
- Service manual (19 pages) ,
- Instruction manual (71 pages) ,
- Service, installation, and instruction manual (60 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maxx Ice MIM50
Summary of Contents for Maxx Ice MIM50
- Page 1 MI M5 0 I N S T R U C T I ON MA N U A L...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page ICE MAKER SAFETY ..................... 2 IMPORTANT SAFEGUARDS ..................3 - 5 TECHNICAL INFORMATION ..................5 INTRODUCTION ......................6 COMPONENT LOCATIONS ..................6 - 7 ICE MAKER INSTALLATION .................7 - 14 Unpacking ......................7 - 8 Location requirements ..................8 - 9 Electrical requirements ..................9 - 10 Leveling the ice maker ................... -
Page 3: Ice Maker Safety
ICE MAKER SAFETY Your safety and the safety of others are very important We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can injure or kill you and others. -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Before the ice maker is used, it must be properly positioned and installed as described in this manual, read the manual carefully. Maxx Ice strongly recommends that you have a professional install your new machine. The warranty may be affected or voided by an incorrect installation. To... - Page 5 It is important for the ice maker to be leveled in order to work properly. Otherwise water may not flow properly through the evaporator (ice mold). The ice production will be less than normal. You may need to make several adjustments to level it. ...
-
Page 6: Technical Information
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this ice maker. TECHNICAL INFORMATION Model: MIM50 Electrical power: 120VAC ~ 60Hz Power consumption: 13.2 kWh per100 lbs of ice Ice-making /-harvest rated current: 3.7A/4.8A... -
Page 7: Introduction
Asbury Foodservice assumes no liability or responsibility of any kind for products manufactured by Maxx Ice that have been altered in any way, including the use of any parts and/or other components not specifically approved by Asbury Foodservice or Asbury Service Warranty &... -
Page 8: Ice Maker Installation
Ice scoop Power cord Water inlet Drain outlet Drain hose Water supply hose ICE MAKER INSTALLATION Unpacking Excessive Weight Hazard Use two or more people to move and install ice maker. Failure to do so can result in back or other injury. Remove packaging materials NOTE Do not remove any permanent instruction labels or the data label on your ice maker. -
Page 9: Location Requirements
using it. See the "Interior cleaning" in the Cleaning and Maintenance section. Location requirements INSTALLATION CLEARANCES: SIDE VIEW TOP VIEW 1” 4” Top of unit Rear of unit 1” 1” Side Side Front of unit This ice maker should be properly installed by qualified personnel. ... -
Page 10: Electrical Requirements
Normal operating ambient temperature should be between 50°F (10°C) to 100°F (38°C). Normal operating water temperature should be between 41°F (5°C) and 90°F (32°C). Operation of the ice maker for extended periods out- side of these normal temperature ranges may affect production capacity. ... -
Page 11: Leveling The Ice Maker
A standard electrical supply, properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required. The ice maker should always be plugged into its own dedicated electrical outlet. It is recommended that a separate circuit, serving only your ice maker, be provided. Use receptacles that cannot be turned off by a switch or pull chain. - Page 12 Tools needed: flathead screwdriver, Phillips screwdriver NOTE: Before you begin, unplug the ice maker or disconnect power. To remove door from hinges: 1. Remove the top hinge cover. 2. Using a Phillips screwdriver, remove the screws, remove the top hinge mat and top hinge.
-
Page 13: Water Supply
Water Supply The water supply should be ready at the point of installation. The water supply pressure should be a minimum of 15 psig with a static pressure not more than 80 psig. (A wall outlet directly behind the ice machine will make installation easier.) NOTE: All installations must be in accordance with local plumbing code requirements. -
Page 14: Installation Types
A floor drain is also acceptable. If this is not possible, Maxx Ice recommends the use of a condensate pump. Contact Asbury Service Warranty & Parts at 1-877-368-2797. -
Page 15: Operation
every connection (including connection at the water inlet). 4. If the electrical outlet for the ice maker is behind the cabinet, plug in the ice maker. 5. Push the ice maker into position. 6. Seal all around the cabinet to the floor with an approved caulking compound. NOTE: Be sure the drain hose is connected and fed into the drain line before the ice maker is moved into its final position. -
Page 16: How The Machine Uses The Water
2. After 3 minutes, the machine will automatically go to the ice-making stage, and the sound of water flowing will be heard. 3. When the batch of ice has been fully formed ice will automatically be harvested to the ice storage bin. 4. -
Page 17: How To Adjust The Capacity Of The Ice Storage Bin
enters into the water trough continuously as the water in trough freezes continuously in the evaporator. Evaporator Water inlet Water pump Hot gas valve Compressor Fan motor Condenser How to adjust the capacity of the ice storage bin The ice storage capacity can be adjusted by moving the shelf adjustors to different positions (see below). -
Page 18: Preparing The Ice Maker For Long Storage
stored on top of the ice maker can also make noises. The high efficiency compressor may make a pulsating or high-pitched sound. Water running may make a splashing sound. You may hear air being forced over the condenser by the condenser fan. ... -
Page 19: Cleaning And Maintenance
CLEANING AND MAINTENANCE If the ice maker is left unused for a long time, before the next use it must be thoroughly cleaned. Follow carefully any instructions provided for cleaning or use of sanitizing solutions. Do not leave any solution inside the ice maker after cleaning. -
Page 20: Interior Cleaning
hard, stubborn stains. Also, hard water stains left to sit can weaken the steel's corrosion resistance and lead to rust. Use a nonabrasive cloth or sponge, working with, not across, the grain. 2. Don't use abrasive tools to clean the steel surface. Do not use steel wool, abrasive sponge pads, wire brushes or scrapers to clean the steel. - Page 21 2. Make sure all ice is off evaporator. If ice is being made, initiate harvest or wait for cycle completion, then turn machine off at the power switch. 3. Remove all ice cubes from the storage bin. 4. Keep the ice maker connected to the water supply. Pour 4 oz. of Nickel-Safe Ice Maker Cleaner Solution into the water tank.
-
Page 22: Condenser Cleaning
12. Repeat step 5-6 above with clean water to rinse the ice-making system thoroughly. Drain the water as indicated in Step 11. This will complete ice-making system cleaning. Then press the controller to “OFF” 13. Turn the machine ON and replace the front panel. 14. -
Page 23: Water Distribution Tube Cleaning
6. Plug in the ice maker or reconnect power. DO NOT touch the condenser fins. They are sharp and can be easily damaged. Water distribution tube cleaning When you find the ice cubes are incompletely formed or the output is low, the water distribution tube may be blocked. -
Page 24: Major Functions
Description of LEDs and buttons: Bin Full (Red) LED Bin full indicator light When this is lit, the ice storage bin is full of ice or there is some thing blocking the bin-full probe. The unit will stop working. When ice cubes are removed from the ice storage bin, freeing the bin-full probe, the red LED will remain flashing for 3 minutes, then the unit will restart and return to the ice making mode. -
Page 25: Troubleshooting
TROUBLESHOOTING Before Calling for Service If the unit appears to be malfunctioning, read through the OPERATION section of this manual first. If the problem persists, check the Troubleshooting Guide on the following pages. Some of the problems mentioned in the Guide can be solved easily without a service call. - Page 26 Check if the water supply pressure is below Cubes are partially 15 psig. Not enough water in the formed or are white Check water supply or filter may be water trough. on the bottom. restricted. Check for a water leak at the water trough. The feet are not leveled and Level and lock the feet.
- Page 27 MA X X I C E 3 3 5 5 E n t e r p r i s e A v e n u e , S u i t e 1 6 0 We s t o n , F l o r i d a 3 3 3 3 1 T e l : 9 5 4 - 2 0 2 - 7 4 1 9 - F a x : 9 5 4 - 2 0 2 - 7 3 3 7...
Need help?
Do you have a question about the MIM50 and is the answer not in the manual?
Questions and answers
I have a model Mim50 S#00501120067 after the ice drops during the harvest cycle the machine will not automatically come back on you have to push the on button to restart the machine the green clean light blinks as well **** I doing something wrong. Thanks
The Maxx Ice MIM50 does not automatically restart after the ice drops during the harvest cycle if the ice storage bin is full. The machine stops operation when the bin is full to prevent overflow. To resume operation, some ice must be removed, and the ice-full probe must be free of ice.
