Compass s.r.l. User manual C-Pilot PRO
If an alarm is triggered, an audio alarm (a siren tone) will always be played, independently from the
display configuration.
If present in the display shown, the "Airspace warnings" field will list all the airspaces that have
triggered an alarm and the corresponding distances from your current position. An example of an
"alarm" situation is shown in Figure 31. We suggest to add this field to the display associated to the
"airspace" condition.

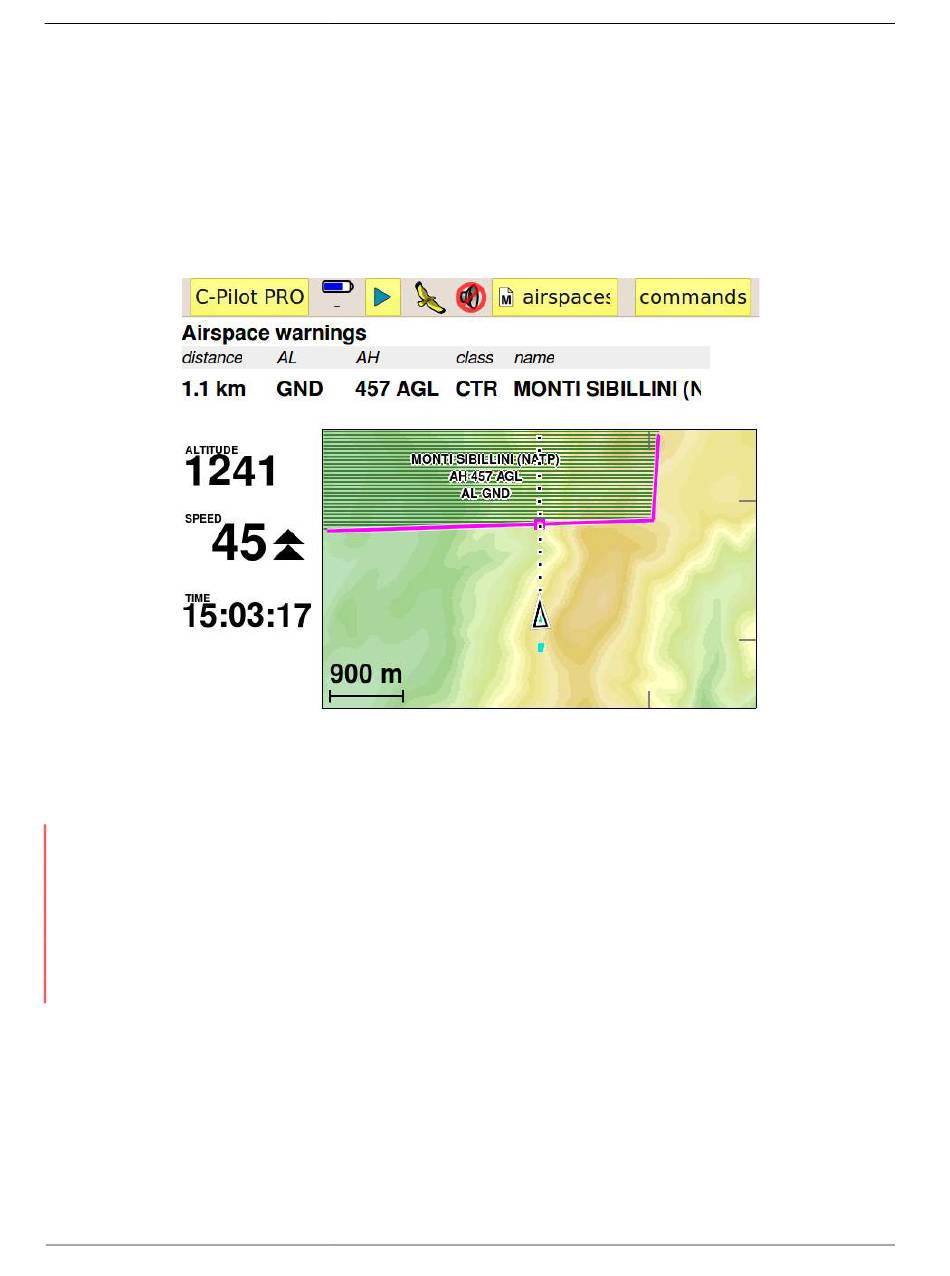

Figure 31: you are too close to an airspace: a proximity alarm is triggered.
Airspaces for which an alarm is active are shown on the map with a magenta border. A small square
on the border indicates the minimum distance point.
If you are not interested in one of the airspaces that issued a warning, for example because it is not
active in the day when you are flying, you can easily disable it by touching its name on the map. A
confirmation message will appear. This setting is not permanently saved. When you switch off and
back on the instrument, all the alarms will be activated again.
Disabled alarms can be reactivated by means of the "Enable currently disabled alarms" button of
the airspace-page menu.
If you enter into an airspace, its border is shown in red. Also the corresponding line in the "Airspace
warnings" field will be drawn in red.
In these critical situations, if the autozoom is active, the map is scaled automatically in order to allow
you seeing at a glance your position with respect to all the airspaces that have triggered an alarm.
Creating or editing airspaces
Airspaces are defined by a list of elements: points, arcs and/or circles, defined from their
