Let us have a look at the display and to the notification icons.

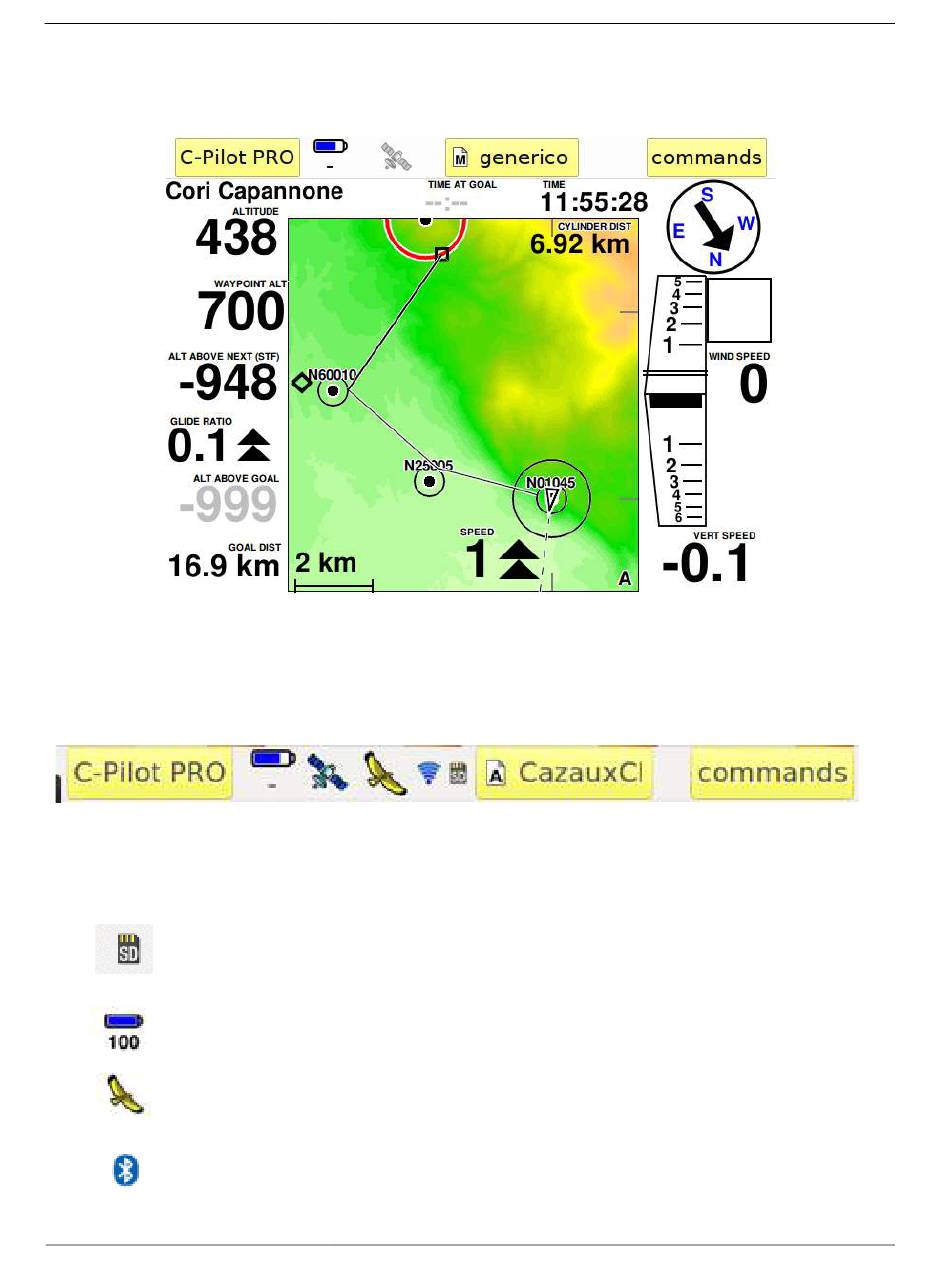

Figure 1: the navigation page. It includes the flight data, the map, the status icons and the menu buttons
During your flights, you will mainly use the navigation page. It is composed of two parts. The top part
is the control bar:
It includes several icons that show some important parameters:
On the top menu bar you can find 3 buttons and some icons:
The SD Card icon means that the SD Card is inside the slot and C-Pilot EVO is using
it. if the icon is red colored the C-Pilot is not able to use the SD Card or one or more
files are corrupted
battery charge level (when empty and red battery is going to finish)
C-Pilot EVO is logging the track (Warning: when the instrument is switched on but
does not fell the pilot move - waiting to take off - the device will not register the track)
Bluetooth module is active
User manual
