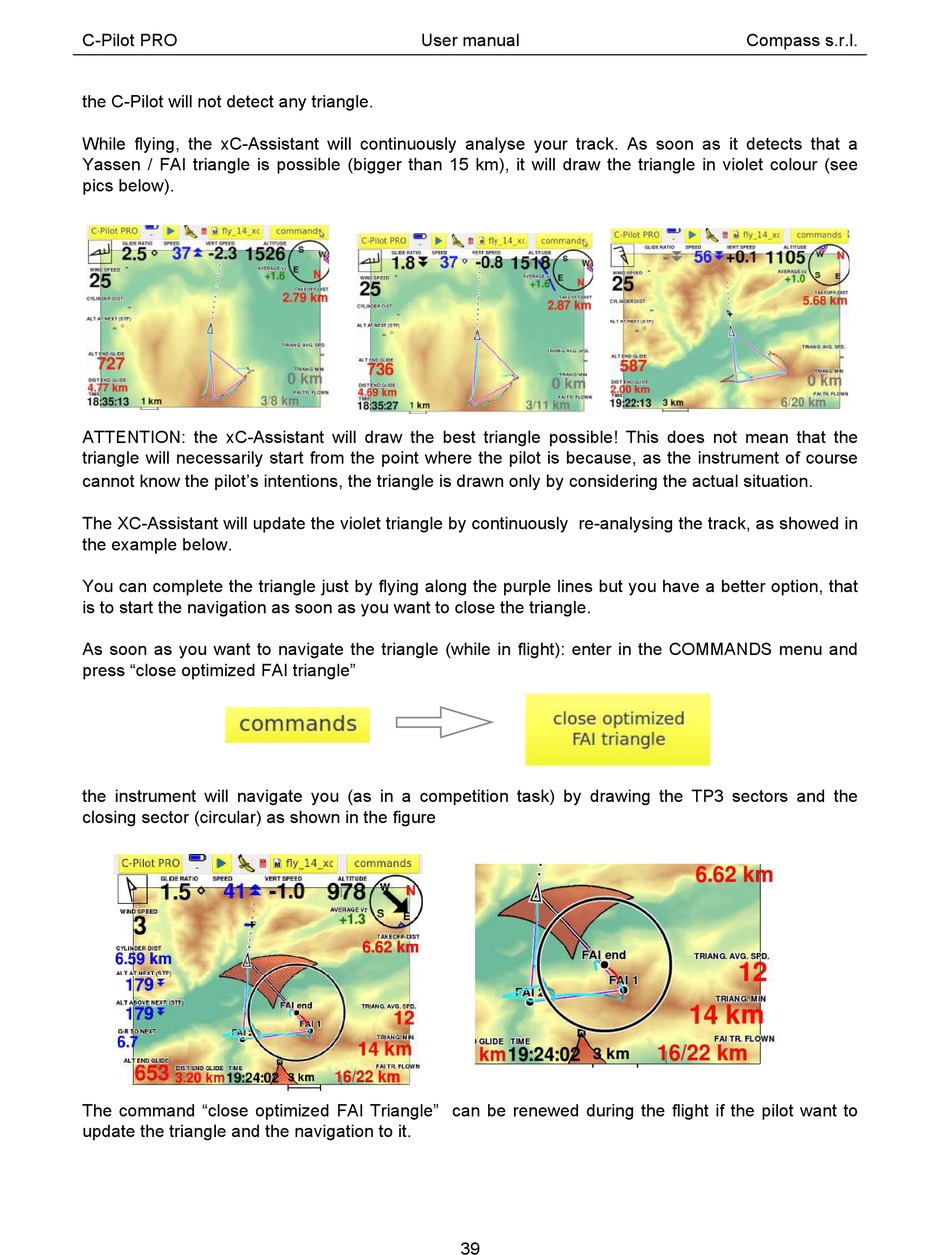

Compass C-PILOT EVO User Manual page 43

C-Pilot PRO User manual Compass s.r.l.
the C-Pilot will not detect any triangle.
While flying, the xC-Assistant will continuously analyse your track. As soon as it detects that a
Yassen / FAI triangle is possible (bigger than 15 km), it will draw the triangle in violet colour (see
pics below).
ATTENTION: the xC-Assistant will draw the best triangle possible! This does not mean that the
triangle will necessarily start from the point where the pilot is because, as the instrument of course
cannot know the pilots intentions, the triangle is drawn only by considering the actual situation.
The XC-Assistant will update the violet triangle by continuously re-analysing the track, as showed in
the example below.
You can complete the triangle just by flying along the purple lines but you have a better option, that
is to start the navigation as soon as you want to close the triangle.
As soon as you want to navigate the triangle (while in flight): enter in the COMMANDS menu and
press "close optimized FAI triangle"
the instrument will navigate you (as in a competition task) by drawing the TP3 sectors and the
closing sector (circular) as shown in the figure
The command "close optimized FAI Triangle" can be renewed during the flight if the pilot want to
update the triangle and the navigation to it.
39
