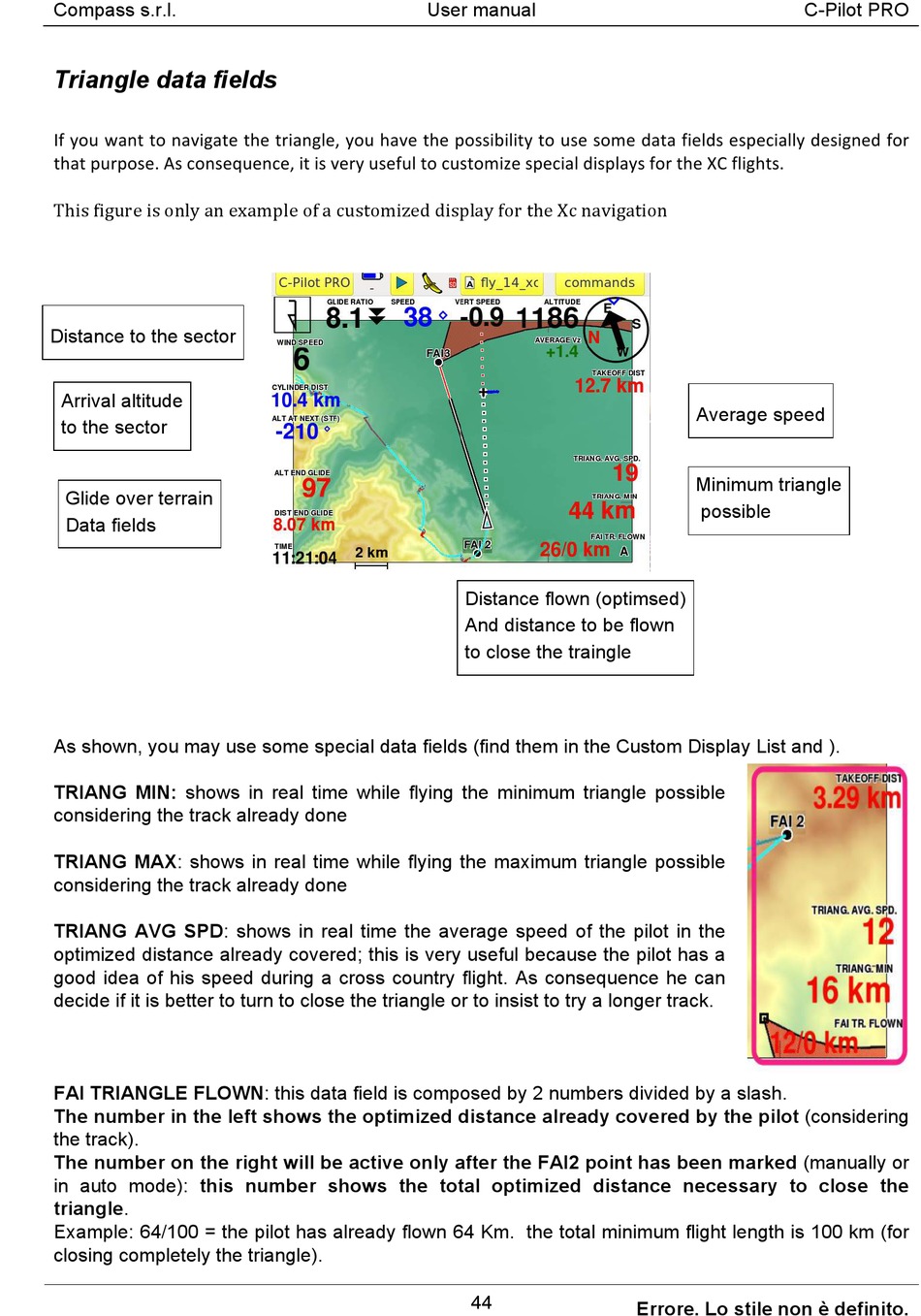

Triangle data fields
                  
               
             
Distance to the sector
Arrival altitude
to the sector
Glide over terrain
Data fields
As shown, you may use some special data fields (find them in the Custom Display List and ).
TRIANG MIN: shows in real time while flying the minimum triangle possible
considering the track already done
TRIANG MAX: shows in real time while flying the maximum triangle possible
considering the track already done
TRIANG AVG SPD: shows in real time the average speed of the pilot in the
optimized distance already covered; this is very useful because the pilot has a
good idea of his speed during a cross country flight. As consequence he can
decide if it is better to turn to close the triangle or to insist to try a longer track.
FAI TRIANGLE FLOWN: this data field is composed by 2 numbers divided by a slash.
The number in the left shows the optimized distance already covered by the pilot (considering
the track).
The number on the right will be active only after the FAI2 point has been marked (manually or
in auto mode): this number shows the total optimized distance necessary to close the
triangle.
Example: 64/100 = the pilot has already flown 64 Km. the total minimum flight length is 100 km (for
closing completely the triangle).
User manual
Distance flown (optimsed)
And distance to be flown
to close the traingle
44
C-Pilot PRO
Average speed
Minimum triangle
possible
