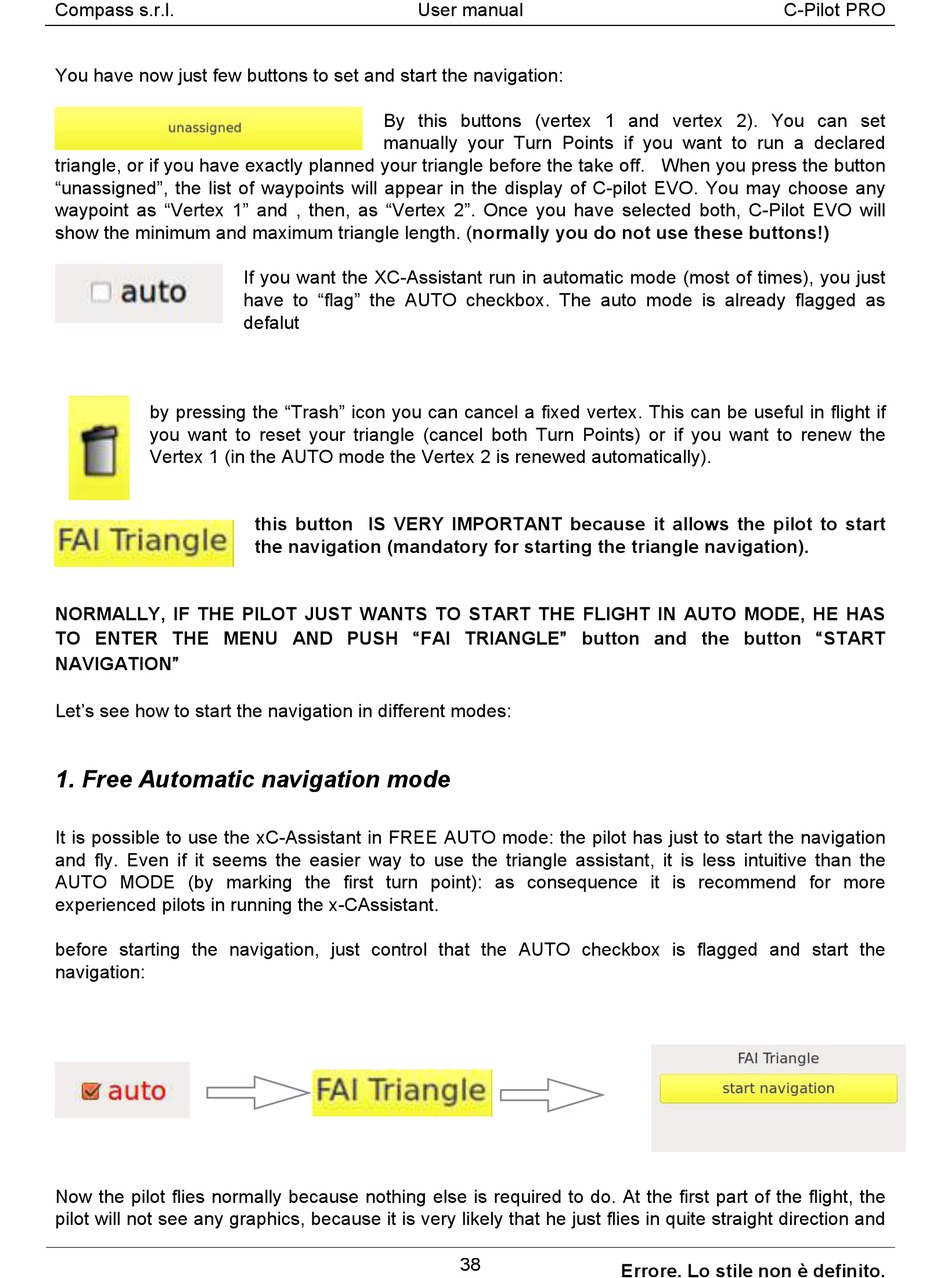

You have now just few buttons to set and start the navigation:
triangle, or if you have exactly planned your triangle before the take off. When you press the button
"unassigned", the list of waypoints will appear in the display of C-pilot EVO. You may choose any
waypoint as "Vertex 1" and , then, as "Vertex 2". Once you have selected both, C-Pilot EVO will
show the minimum and maximum triangle length. (normally you do not use these buttons!)
by pressing the "Trash" icon you can cancel a fixed vertex. This can be useful in flight if
you want to reset your triangle (cancel both Turn Points) or if you want to renew the
Vertex 1 (in the AUTO mode the Vertex 2 is renewed automatically).
NORMALLY, IF THE PILOT JUST WANTS TO START THE FLIGHT IN AUTO MODE, HE HAS
TO ENTER THE MENU AND PUSH FAI TRIANGLE button and the button START
NAVIGATION
Lets see how to start the navigation in different modes:
1. Free Automatic navigation mode
It is possible to use the xC-Assistant in FREE AUTO mode: the pilot has just to start the navigation
and fly. Even if it seems the easier way to use the triangle assistant, it is less intuitive than the
AUTO MODE (by marking the first turn point): as consequence it is recommend for more
experienced pilots in running the x-CAssistant.
before starting the navigation, just control that the AUTO checkbox is flagged and start the
navigation:
Now the pilot flies normally because nothing else is required to do. At the first part of the flight, the
pilot will not see any graphics, because it is very likely that he just flies in quite straight direction and
User manual
By this buttons (vertex 1 and vertex 2). You can set
manually your Turn Points if you want to run a declared
If you want the XC-Assistant run in automatic mode (most of times), you just
have to "flag" the AUTO checkbox. The auto mode is already flagged as
defalut
this button IS VERY IMPORTANT because it allows the pilot to start
the navigation (mandatory for starting the triangle navigation).
