ASTRA ELITE SMART AUTO INCLINE
BRUSHLESS MOTOR TREADMILL
SF-T722052
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunny SF-T722052
Summary of Contents for Sunny SF-T722052

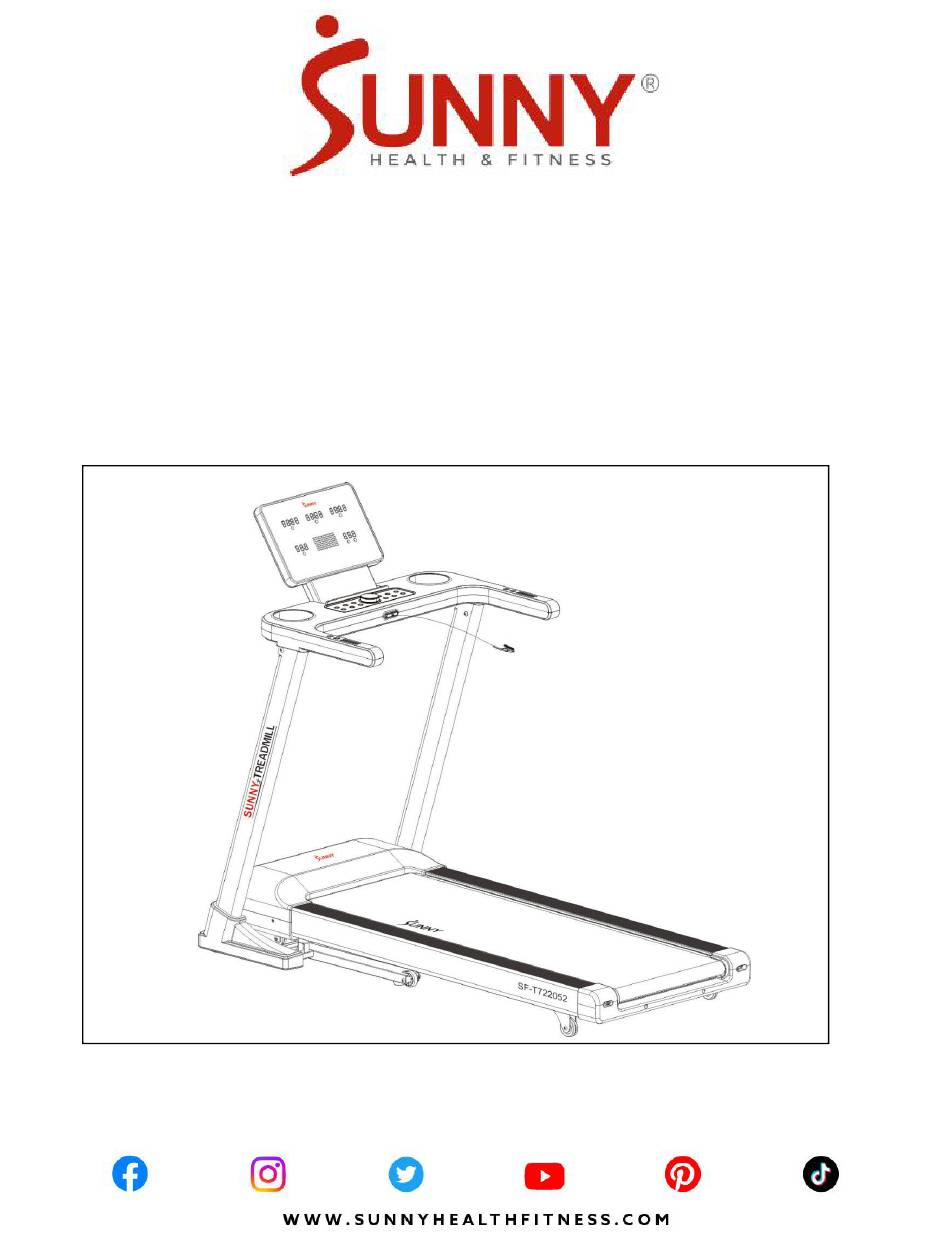

- Page 1 ASTRA ELITE SMART AUTO INCLINE BRUSHLESS MOTOR TREADMILL SF-T722052 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER – To reduce the risk of electric shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING –... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 4: Important Note
IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4. -
Page 5: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Main Frame Left Upright Tube Cover Right Upright Tube Cover Safety Key Power Wire Lubricant Oil Manual Thank You Card Hardware Package... -
Page 6: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Open the carton and remove contents. Place the Main Frame (No. A) on level ground, ensure that you have a work area that is clean and has adequate space.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Lift the Left & Right Upright Tubes (No. A06 & No. A07) upward (in the direction specified by the arrows on the diagram to the left).
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Adjust the Console (No. E01) to the angle you feel comfortable. Attach the Left & Right Upright Tube Covers (No.
-
Page 10: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board (No. E23) and Running Belt (No. C24) is essential as the friction affects the life span and operations of the treadmill. Inspect the Running Belt (No. C24) and Running Board (No. - Page 11 HOW TO FOLD THE MACHINE FOLDING: NOTE: Please make sure the incline is at ZERO when folding and unfolding. Place your hand at position “F” and lift up the Main Frame (No. A02) until the Air Cylinder (No. B06) “G” locks into the tube. When the Air Cylinder (No.
-
Page 12: How To Move The Machine
HOW TO MOVE THE MACHINE Before attempting to move the treadmill, make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing one hand at position “F” to support the top end of the treadmill. Next, place one foot at position “K”... -
Page 13: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and improve performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Cleaning two exposed sides of the Running Belt (No. C24) will prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No. -
Page 14: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user. -
Page 15: The Display Console
THE DISPLAY CONSOLE QUICK START: 1. Insert the pin end of the Safety Key (No. E12) into the Console Top Cover (No. C07). 2. Press the START button or Switch Knob (No. E06), and the system will automatically display a 3 seconds countdown. - Page 16 When setting PROGRAMS, Distance window will display P1-P2---P24-U1-U2-U3-FAT. NOTE: The distance and calories will not count when no people walk or run on the treadmill. TIME: Displays the time elapsed (0:00-99:59 MINS). If the time reaches 99:59, the treadmill will stop smoothly and display “End”...
- Page 17 INCLINE +/– BUTTONS: Press this button to adjust incline level. When the treadmill is running, press the +/- Buttons to increase or decrease the incline level. Pressing and holding either of these buttons for duration of over ½ a second will increase or decrease the incline level continually. The incline levels range from 0-15.
- Page 18 TIME TIME INTERVAL= setting time/10 PROG. SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED...
-
Page 19: Self-Define Program
SPEED INCLINE SELF-DEFINE PROGRAM Besides 24 inner installed programs, there are 3 user self-define programs: U1, U2, U3. 1.User self-define program setting: In the initial situation, press “PROG” continually till U1, U2, U3, and the “TIME” window glitter, show the time 10:00, press “speed+”, “speed-”... -
Page 20: Exercise Instructions
TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Key (No. E12) from the Console Top Cover (No. C07) while the treadmill is running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of the console will show “- - -”... -
Page 21: App Connection
4. The treadmill will start at the system default setting speed of 0.6MPH. When you feel comfortable, you may slowly increase this speed. 5. When you are finished with your exercise, press the STOP button to stop the treadmill or you can remove the pin end of the Safety Key (No. -
Page 22: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 23 EXPLODED DIAGRAM 2...
-
Page 24: Parts List
PARTS LIST Description Specification Qty. Description Specification Qty. Base Frame Foot Pad Main Frame Adjustable Foot pad Incline Frame Motor Belt Console Base Bracket Running Belt Panel Fixed Bracket Ring Protection Wire Left Upright Tube EVA Pad Right Upright Tube Plastic Gasket Φ30*3 Front Roller... - Page 25 Description Specification Qty. Description Specification Qty. Flat Washer Φ6 Grounding Wire Big Washer Φ10 AC Single Line Brown 200 Screw ST2.0*6 AC Single Line Brown 350 Bolt M8*42 L20 AC Single Line Blue 350 Console Running Board Control Board Brushless Motor Upper Signal Wire Incline Motor Lower Signal Wire...
