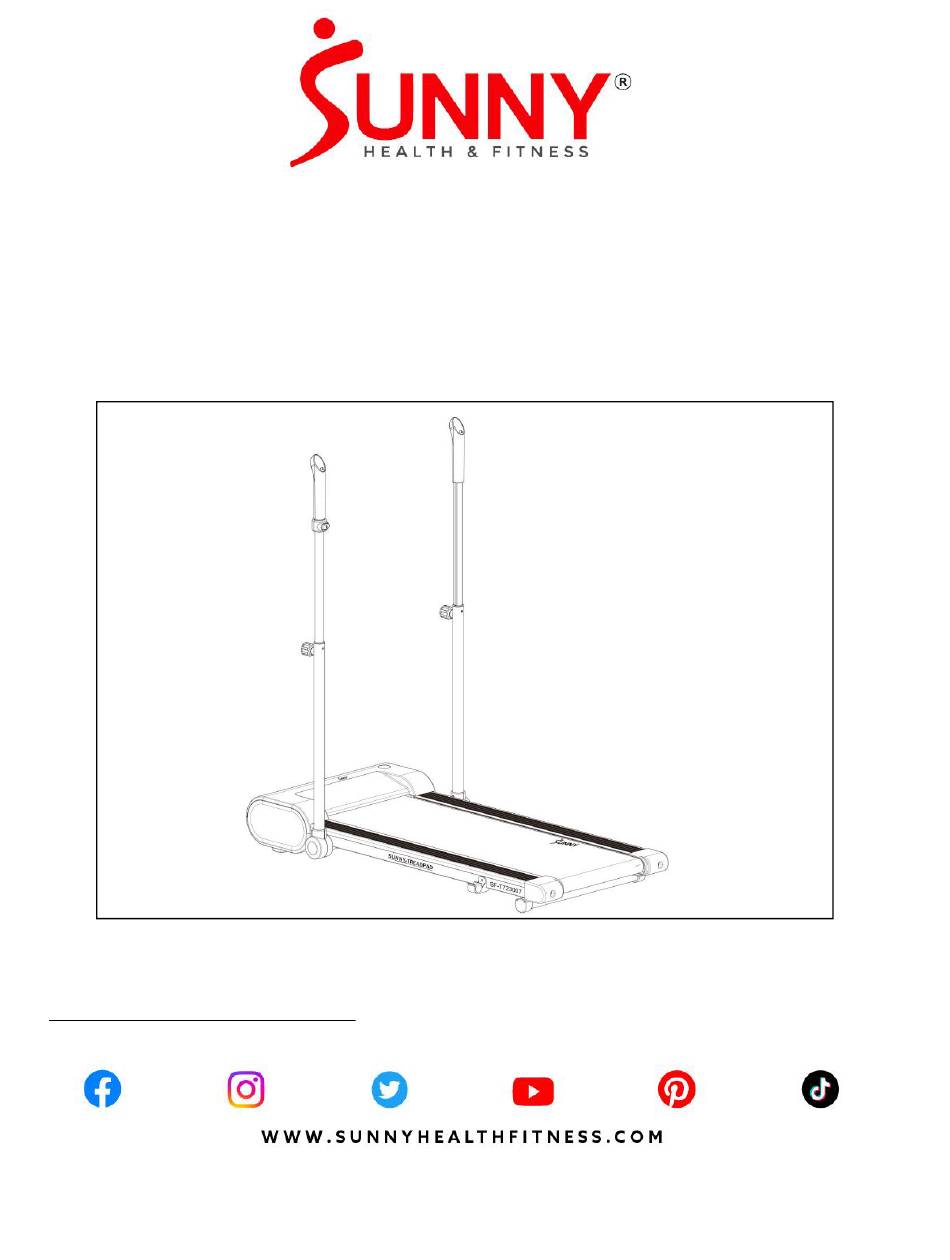

SMART SLIM TREADMILL WITH ARM EXERCISER SF-T723007 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
IMPORTANT SAFETY INSTRUCTION When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER –To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
Page 4
IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the remote control. The speed will increase gradually. 4.
CARTON CONTENTS Description Specification Qty. Treadmill Remote Control Power Wire Safety Key Lubricant 20ml/bottle Allen Wrench Screwdriver User Manual THANK YOU Card Battery Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ...
Page 7
STEP 3: If you want to adjust the length of the Left Handrail (No. B07), rotate the Adjustment Knob (No. B05) until it is loose. Use one hand to pull the Adjustment Knob (No. B05) outward and adjust the length of the Left Handrail (No. B07) with your other hand. Once desired length is found, release the Adjustment Knob (No.
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board (No. E12) and Running Belt (No. C07) is essential as the friction between the two affects the life span and function of the treadmill. Therefore, it is suggested that the Running Board (No.
MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the running belt to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No.
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 8 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user.
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION: 1. Use a Screwdriver (No. B04) to loosen and remove the screw from the battery cover. 2. Take out the 1pc CR2032 battery that is included inside the remote control box. 3. Install the battery into the battery holder with the positive end facing up. 4.
THE DISPLAY CONSOLE WINDOW DISPLAY: Displays calories, time, steps, distance, and speed value in turn every 5 seconds. CALORIES: Displays the number of calories burned from 0.0 to 9999 KCAL. When the count reaches 9999 KCAL, it will reset and start back from 0. TIME: Displays the time elapsed (00:00-99:59 MINS).
REMOTE CONTROL FUNCTIONS: Note: If the treadmill does not respond to the remote control, you will need to resync the treadmill and remote control. To sync the remote control with the treadmill, hold the start/pause button on the remote control and turn on the treadmill. Now keep pressing the start/pause button for five seconds, until you will hear a “beep”...
Page 15
HANDRAIL CONTROL FUNCTIONS: 1. START: Press the START button to start the treadmill. 0.5 MPH is the default start speed. During the exercise, you can also press this button to pause the treadmill. 2. STOP: When in use, press the STOP button to terminate your workout session. All data will be deleted and reset to the initial setting.
EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals.
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug cord into outlet. Treadmill will not start Safety Key not inserted. Insert Safety Key. Running belt tension is not Tighten the adjustment bolts on Running belt not centered correct on the left or right the left and right side of the rear sides of the running board.
Page 18
Check motor wires to see if the motor is connected. If the wire The motor wire is not 0006 ERROR: Motor has been punctured or damaged, connected, or the motor is abnormality you will need to replace it. If the damaged.
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Plastic Gasket Left Handrail Frame Bushing Right Handrail Frame Running Board Strengthen Tube Front Roller Bolt M8*40 Rear Roller Bolt M8*15 Allen Wrench Bolt M6*46 Screwdriver Bolt M6*45 Adjustment Knob Bolt M6*55 Safety Key Plate...
Page 21
Description Spec. Qty. Description Spec. Qty. Remote Control Power Socket Button AC Single Line Blue 200 Brown Button Switch Board AC Single Line Left Handrail Top Wire Magnetic Ring 1 Green Left Handrail Middle Grounding Wire Wire Yellow Left Handrail Bottom DC Motor Wire Right Handrail Top Wire...
