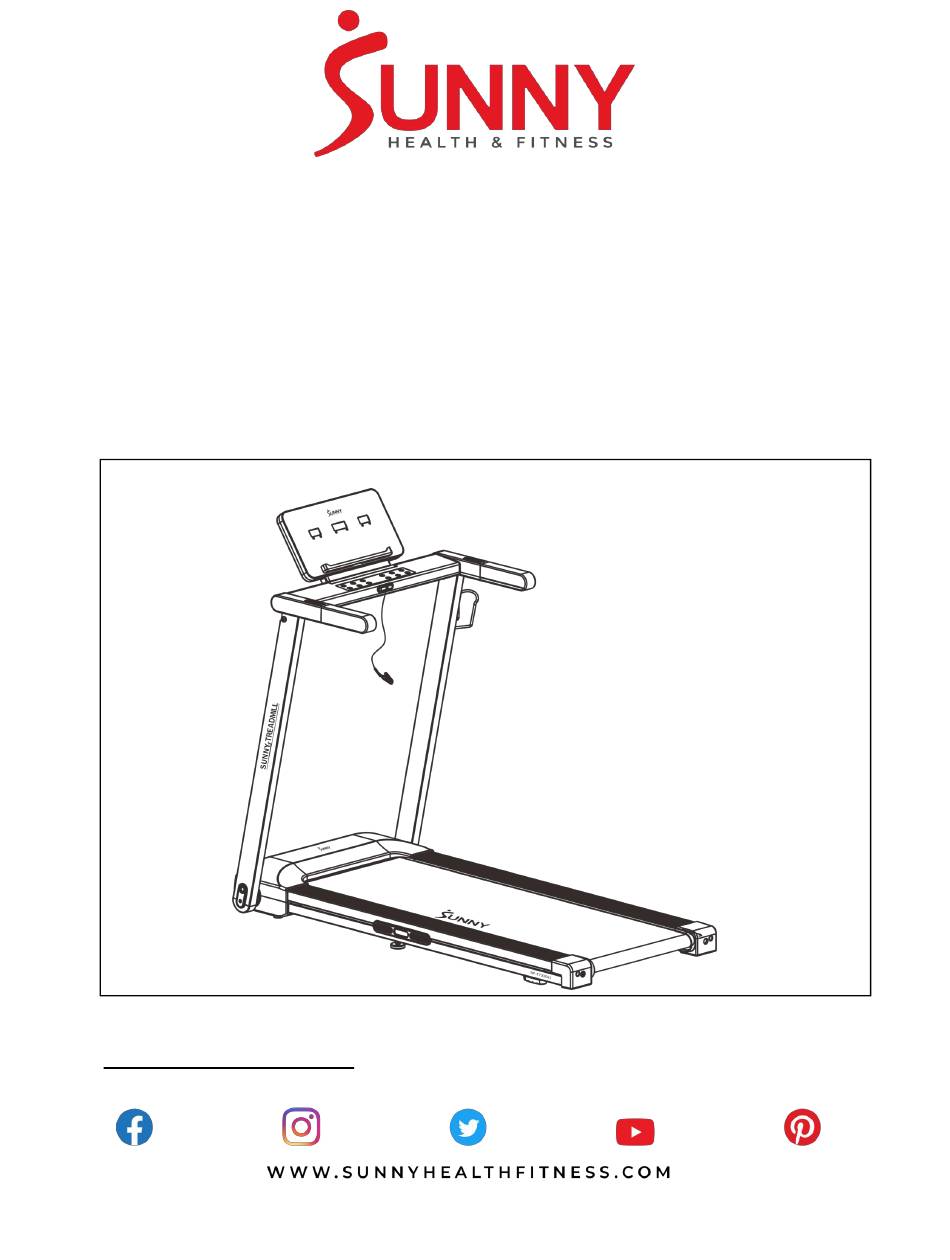

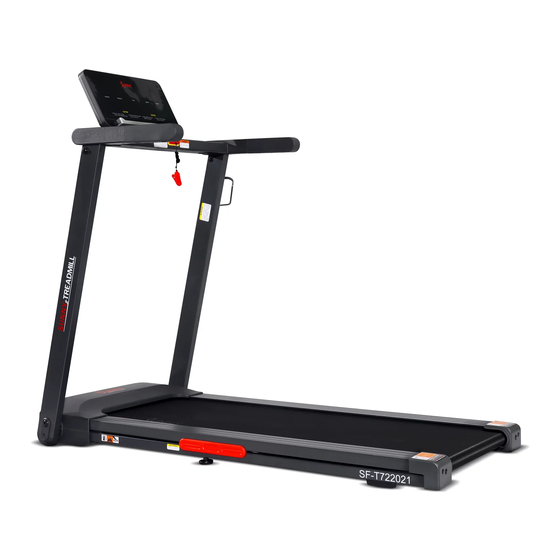

Interactive Slim Treadmill with Bluetooth
SF-T722021
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your satisfaction is
very
important
to
us,
PLEASE
DO
NOT
RETURN
UNTIL YOU
HAVE
CONTACTED
US:
support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunny SF-T722021
Summary of Contents for Sunny SF-T722021
- Page 1 Interactive Slim Treadmill with Bluetooth SF-T722021 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important PLEASE RETURN UNTIL YOU HAVE CONTACTED support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER – To reduce the risk of electric shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 4: Important Note
IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4. -
Page 5: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Treadmill Safety Key Power Wire Bottle Holder Lubricant Oil Manual Thank You Card Hardware Package... -
Page 6: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Open the carton box and remove contents. Place the Main Frame (No. A) on level ground, ensure that you have a work area that is clean and has adequate space.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Support the Left & Right Upright Tubes (No. A07 & No. A08) with your hands to prevent them from falling.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Adjust the Panel Top Cover (No. C03) to the angle you feel comfortable. Attach the Bottle Holder (No. A09) to the Right Upright Tubes (No.
-
Page 10: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the Running Board (No. D11) and Running Belt (No. C17) is essential as the friction affects the life span and operations of the treadmill. Inspect the Running Belt (No. C17) and Running Board (No. -
Page 11: How To Move The Machine
HOW TO MOVE THE MACHINE Hold the treadmill at position “E” with your hand. Lift up the treadmill and then you can move the treadmill to any place. - Page 12 HOW TO ADJUST THE BALANCE When the height of each pad or because of individual machine placed on the ground is not even, you need to adjust the Adjustable Knob（No. C26）to level the machine on the ground. Adjustment method: First, place the machine as shown in above, use Spanner w/ Screw Driver (No.
-
Page 13: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and improve performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Cleaning two exposed sides of the Running Belt (No. C17) will prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No. -
Page 14: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user. -
Page 15: The Display Console
THE DISPLAY CONSOLE QUICK START: 1. Insert the pin end of the Safety Key (No. C24) into the Console (No. D01). 2. Press the START button, and the system will automatically display a 3 seconds countdown. Once the countdown reaches zero, the Running Belt (No. C17) will start at the initial default speed of 0.6 MPH. -
Page 16: Window Display
WINDOW DISPLAY: SPEED/ PULSE: The speed range is 0.6-9 MPH. 0.6MPH is the default running speed. When the runner holds both hands on the pulse sensors (located on the handles), the system will calculate the runner’s heartbeat and display it in this window. The pulse range is 50-200 beats/min. NOTE: This data is just for reference and cannot be used for medical purposes. - Page 17 3, 4, ... & 8 (QUICK SPEED BUTTONS): These buttons are preset to 3, 4, ... or 8 MPH speeds for convenience. LUBRICATION REMINDER: Your treadmill needs lubrication maintenance every 188 Miles. The system will release a beeping sound every 10 seconds and display an “OIL” icon on your display to remind you when it’s time. Please read the LUBRICATING THE TREADMILL on Page 9 to learn the proper steps to lubricate your treadmill.
-
Page 18: Self-Define Program
SELF-DEFINE PROGRAM Besides 15 inner installed programs, there are 3 user self-define programs: U1, U2, U3 1.User self-define program setting: In the initial situation, press “PROG” continually till U1, U2, U3, and the “time” window glitter, show the time 10:00, press “speed+”, “speed-” to set the running time; press “MODE” to set program data, set the first interval time, press “speed+”, “speed-”... - Page 19 TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Key (No. C24) from the Console (No. D01) while the treadmill is running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of the console will show “- - -”...
-
Page 20: Exercise Instructions
EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. -
Page 21: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug cord into outlet. Treadmill will not start Safety Key is not inserted. Insert Safety Key. Running belt tension is not Tighten left right Running belt not centered correct on the left or right adjusting bolts of the rear roller. - Page 22 Check motor wires to see if the motor is connected. If the wire The motor wire is not has been punctured or damaged, E06/E07: Motor Abnormality connected, or the motor is you will need to replace it. If the damaged. problem is not rectified, you may need to replace the motor.
-
Page 23: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 24 EXPLODED DIAGRAM 2...
-
Page 25: Parts List
PARTS LIST Description Specification Qty. Description Specification Qty. Left Side Tube Assembly Running Belt Right Side Tube Assembly Side Rail Front Tube Frame Motor Belt Motor Bracket Transportation Wheel Computer Bracket Rubber Cushion Pannel Fixed Bracket Tapered Cushion Left Upright Tube Front Mat Right Upright Tube Safety Key... - Page 26 Description Specification Qty. Description Specification Qty. Screw ST2.0*6 Bolt M10*80 Flat Washer Φ10 M10*40 Flat Washer Φ8 Bolt M8*32 L15 Flat Washer Φ6 Bolt M8*50 Big Flat Washer Φ5*Φ13*1.0 Bolt M8*15 Washer Φ6 Bolt M8*15 Washer Φ5 Bolt M6*55 Spring Washer Φ8 Bolt M6*30...
