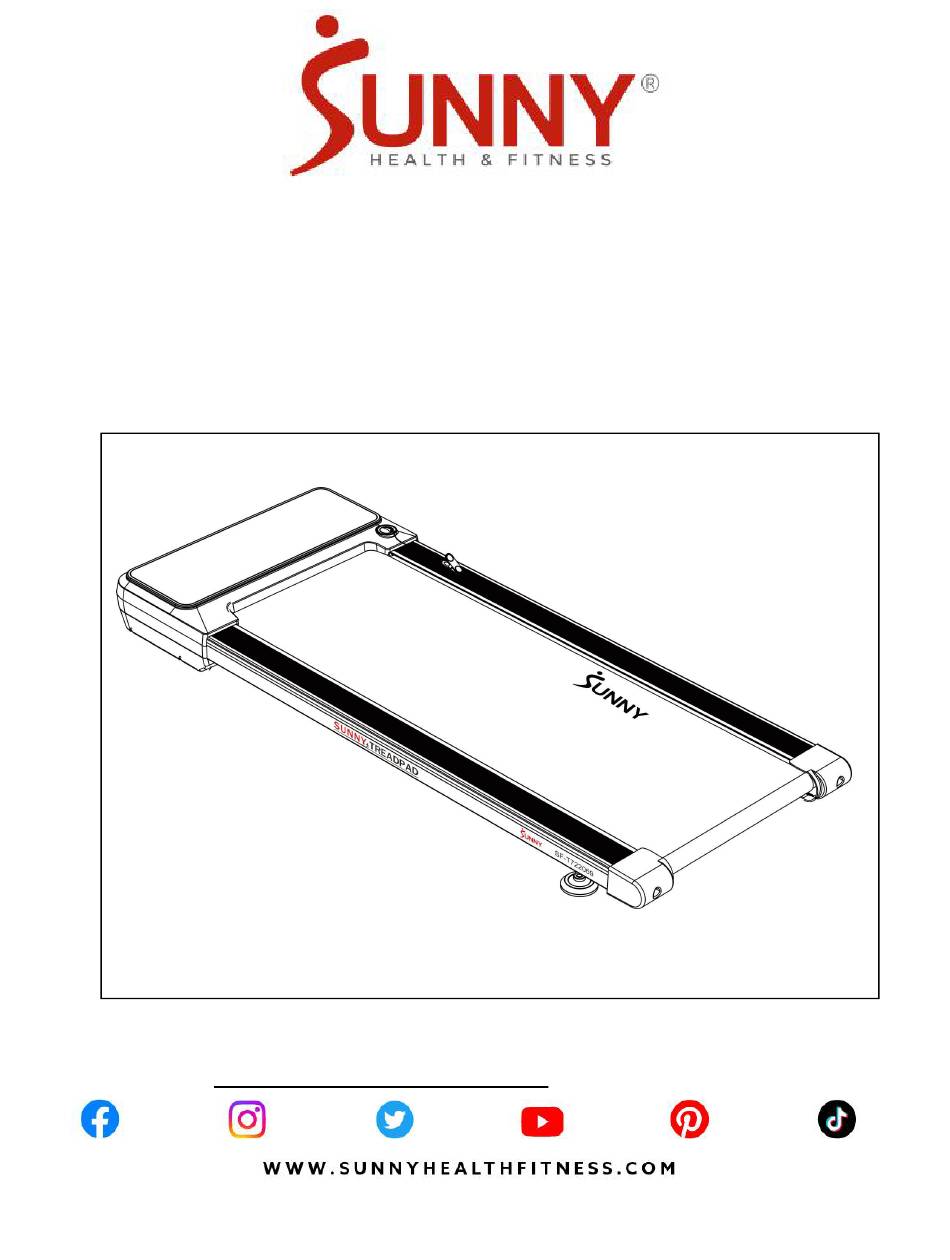

SLEEK STRIDE SMART COMPACT
AUTO INCLINE TREADPAD TREADMILL
SF-T722069
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny SF-T722069
Summary of Contents for Sunny SF-T722069
- Page 1 SLEEK STRIDE SMART COMPACT AUTO INCLINE TREADPAD TREADMILL SF-T722069 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER –To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning. - Page 3 2) This device must accept any interference, including interference that may cause undesired operation of the device. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. - Page 5 IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4.
-
Page 6: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Main Frame Lubricant Oil Manual Thank You Card Battery Screwdriver T-Shape Wrench Remote Control Safety Key Power Wire... - Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Open the carton and remove contents. Place the Main Frame (No. A) on level ground, ensure that you have a work area that is clean and has adequate space.
- Page 8 HOW TO ADJUST FOOT PADS When the height of each pad or because of individual machine placed on the ground is not even, you need to adjust the Universal Foot Pad Sets (No. C11) to level the machine on the ground. Adjustment method: First, place the machine as shown in above, and adjust the Universal Foot Pad Sets (No.
-
Page 9: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board (No. E07) and Running Belt (No. C07) is essential as the friction affects the life span and operations of the treadmill. Inspect the Running Belt (No. C07) and Running Board (No. -
Page 10: How To Move The Machine
HOW TO MOVE THE MACHINE Hold the treadmill at position as above figures with your hand. Lift the treadmill and then you can move the treadmill to any place you desire. - Page 11 HOW TO STORE T-SHAPE WRENCH When you do not need to use the T-Shape Wrench (No. C16), you can put this wrench into groove of the Motor Bottom Cover (No. C02).
-
Page 12: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and improve the performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Cleaning two exposed sides of the Running Belt (No. C07) will prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No. -
Page 13: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user. -
Page 14: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION: 1. Use a Screwdriver (No. B09) to loosen and remove the screw from the battery cover. 2. Take out the 1pc CR2032 battery that is included inside the remote control box. 3. Install the battery into the battery holder with the positive end facing up. 4. -
Page 15: The Display Console
THE DISPLAY CONSOLE WINDOW DISPLAY: Displays incline, calories, time, steps, distance, and speed value in turn every 5 seconds. INCLINE ( ): Displays the incline from 0-6 level. CALORIES (CAL): Displays the number of calories burned from 0 to 99999 KCAL. When the count reaches 99999 KCAL, it will reset and start back from 0. -
Page 16: Remote Control Functions
REMOTE CONTROL FUNCTIONS: Note: If the treadmill does not respond to the remote control, you will need to resync the treadmill and remote control. To sync the remote control with the treadmill, hold the start/pause button on the remote control and turn on the treadmill. Now keep pressing the start/pause button for five seconds, until you will hear a “beep”... -
Page 17: Exercise Instructions
POWER SAVE FUNCTION: When the treadmill has been inactive for 10 minutes, it will enter Power Saving Mode. While the treadmill is in this mode, the window display of the Motor Top Cover (No. C01) will be turned off. To turn it back on, press any button on the remote control. -
Page 18: App Connection
APP CONNECTION: 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3. -
Page 19: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug cord into outlet. Treadmill will not start Safety Key is not inserted. Insert Safety Key. Running belt tension is not Tighten left right correct on the left or right Running belt not centered adjusting bolts of the rear roller. - Page 20 Restart the treadmill. Check the The incoming voltage is too incoming voltage to ensure it is low or too high. The control correct. Check the control board, board is damaged. replace if damaged. E05: Current overload protection (Self Protecting Inspect moving parts of the System) A moving part of the treadmill treadmill to ensure that they are...
-
Page 21: Exploded Diagram
EXPLODED DIAGRAM... -
Page 22: Parts List
PARTS LIST Description Specification Qty. Description Specification Qty. Main Frame Bolt M6*27 Incline Frame Screw ST2.5*6 Running Board Strength Rod Screw ST4.2*16 Front Roller Tapping Screw w/ Washer ST4.2*12 Rear Roller Pan Head Tapping Screw ST2.9*8 Motor Fixed Base Countersunk Head Screw ST2.9*8 Turning Sleeve Spring Washer...
