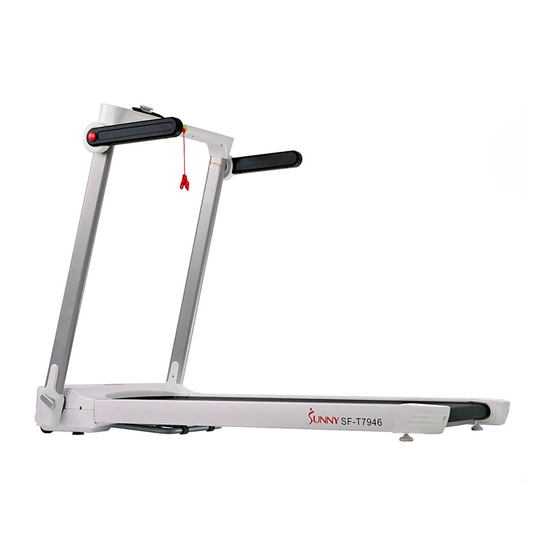

- Page 1 SLIM EASY ASSEMBLY TREADMILL SF-T7946 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM ASSEMBLY CONTENTS When you open the carton, you will find the below parts inside. -
Page 4: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Rotary Knob Top Cover Base Frame Rotary Knob Bottom Cover Left Upright Tube Computer Bottom Wire Right Upright Tube Computer Top Wire DC Motor Ring Wire Protector B Computer Tube Magnetic Ring Left Handlebar Blue Single Wire... -
Page 5: Hardware Package
Description Spec. Qty. Description Spec. Φ5 Spring Washer Inclined Tube Plug Φ6 Screw ST4.2*25 Lock Washer Screw ST4.2*12 Control Board Screw ST4.2*12 Fixed Base Plate Φ5 Φ8 Lock Washer Spring Washer Φ8 Screw ST4.2*19 Flat Washer Screw ST4.2*28 Silicone oil Φ20*8.5*17 Screw ST4.2*13... - Page 6 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Open carton remove contents. Place the Main Frame (No. 1) on level ground and ensure that you have a clean, adequate workspace.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Spin up the Left & Right Handlebars (No. 7 & No. 8) to the horizontal status as the left picture.
-
Page 8: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use! RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the Running Belt (No. 26) and Running Board (No. 15) is essential as the friction affects the life span and operations of the treadmill. Inspect the Running Belt (No. 26) regularly. If you find any wear on the Running Board (No. -
Page 9: Adjusting The Running Belt
MAINTENANCE GUIDE General cleaning will help to prolong the life and improve the performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Cleaning the two exposed sides of the Running Belt (No. 26) will prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from the shoes does not wear the Running Belt (No. -
Page 10: Folding Instructions
FOLDING INSTRUCTIONS FOLDING: 1. Spin up the Left & Right Handlebars (No. 7 & No. 8) as shown in picture A-A. 2. Unscrew the 2 Rotary Knobs (No. 63) about 10 times until the Rotary Knobs (No. 63) are taken out, then put down the upright tubes as the picture A-C. Screw back the 2 Rotary Knobs (No. -
Page 11: How To Move The Treadmill
HOW TO MOVE THE TREADMILL Before attempting to move the treadmill, make sure that it has been properly folded, and the power cord is unplugged. To tilt, start by placing one hand at position “P” to support the top end of the treadmill. -
Page 12: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION IMPORTANT NOTE: This treadmill requires a power source of 110 Volts in order to properly operate. For your safety as well as the safety of others, please verify that the power source is correct before powering the equipment. Any power supply source above or below this level could cause significant damage to the equipment and/or user. -
Page 13: The Display Console
THE DISPLAY CONSOLE LCD WINDOW DISPLAY SPEED: Displays the speed. TIME: Displays the elapsed running time. DISTANCE: Displays the total distance traveled. CALORIES: Displays the total calories burned. BUTTON FUNCTION BUTTON: Press this button to start the treadmill. The treadmill will run at the lowest speed or at the speed of the default program after a 3 second countdown. -
Page 14: Main Function
MAIN FUNCTION Open the power switch. The window will light up and the treadmill will enter into ready state. START-UP QUICKLY (MANUAL): Attach Safety Key (No. 13) onto the computer, press button. The treadmill will run at the lowest speed in 3 seconds. Press SPEED-/+ buttons to adjust the speed. Press the button or remove the Safety Key (No. - Page 15 RUNNING DATA DISPLAY AND SETTING RANGE Mode Program Show range Setting range default default Speed 0.5-7.5MPH -------- -------- -------- Time 0:00—99:59 30:00 30:00 5:00---99:00 0.5 Mile —99.9 Mile Distance 0.00Mile—99.9Mile 1.0 Mile -------- Calories 0Kcl—990Kcl 50Kcl -------- 10Kcl—990Kcl 8. DATE TABLE: Time To set time / 20 time = running time of each time period 1 2 3 4 5 6 7 8 9 10...
-
Page 16: Exercise Instructions
EXERCISE INSTRUCTIONS GETTING STARTED Before starting any exercise programs, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the treadmill properly. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. -
Page 17: Troubleshooting
TROUBLESHOOTING CODE PROBLEM POSSIBLE SOLUTION The wire from computer to bottom 1. Check if the connection wire between control board did not connected computer and control board was well connected. well 2. Make sure the IC on the control board was well inserted.
