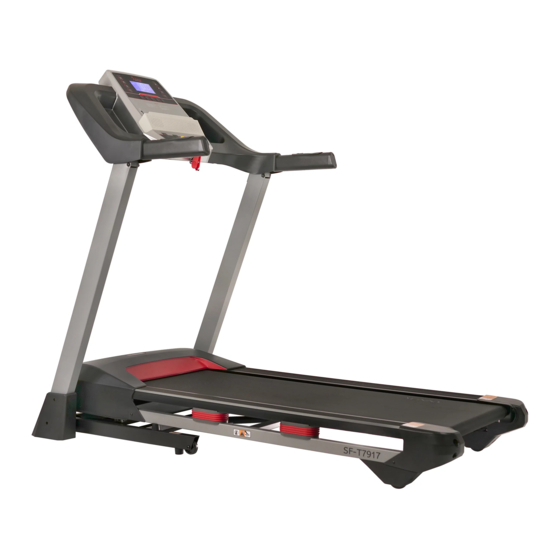

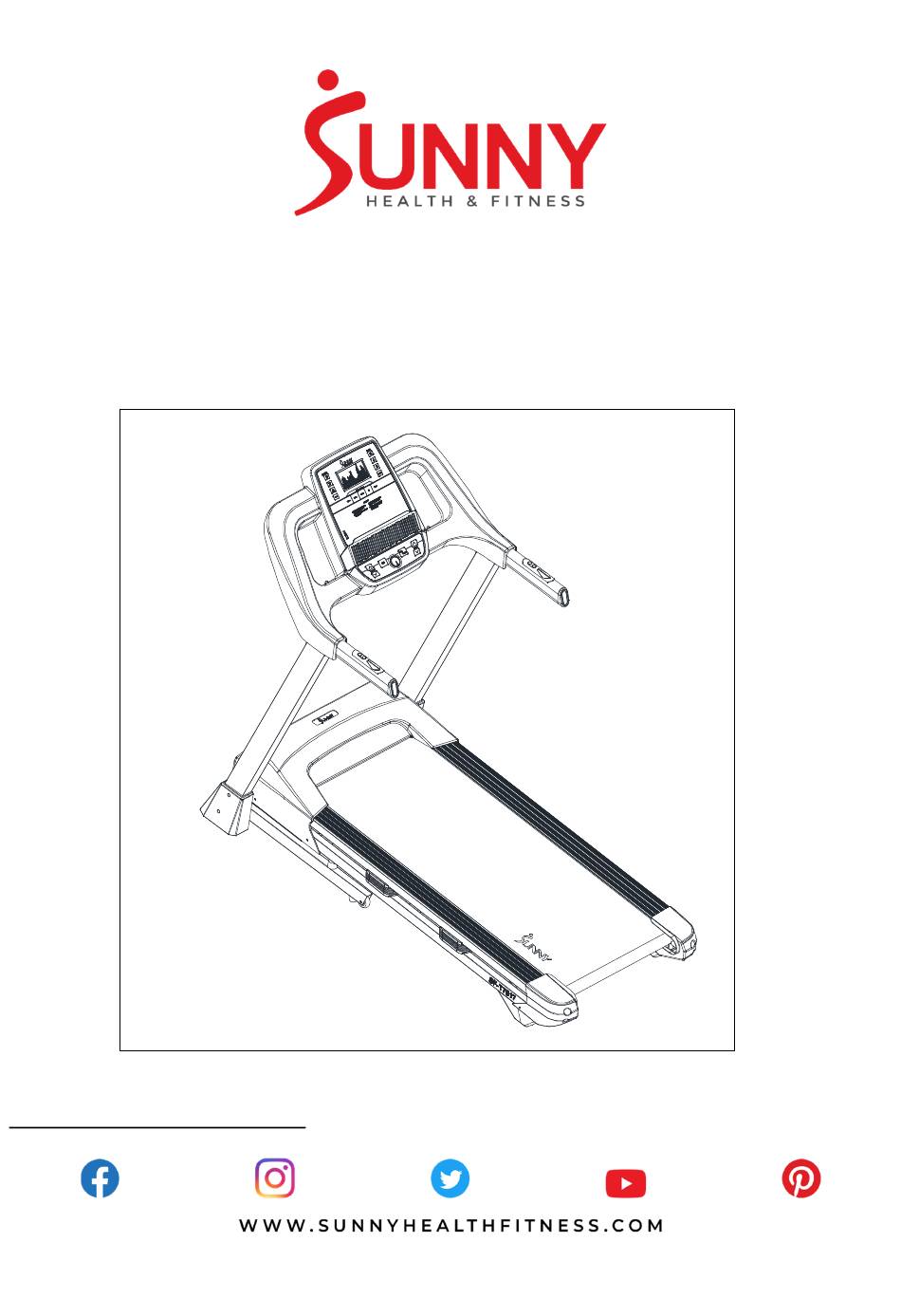

- Page 1 PERFORMANCE TREADMILL SF-T7917 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER – To reduce the risk of electrical shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING –... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 4: Important Note
IMPORTANT OPERATING INSTRUCTION 1. Insert the power plug directly into the socket. 2. Read the manual before operating the treadmill. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4. -
Page 5: Exploded Diagram
EXPLODED DIAGRAM... -
Page 6: Parts List
PARTS LIST Description Specification Qty. Description Specification Qty. Main Frame Pipe Φ7*Φ10.5*350 Base Frame Switch Incline Frame Reed Switch Φ30*Φ20*t10 Left Upright Tube Model Decal 100*38*1.0 Right Upright Tube Screen Ornament Decal Computer Bracket Keyboard Ornament Decal Front Roller Adhesive Tape 23*32*t1.0 Rear Roller Oval End Cap... -
Page 7: Hardware Package
Description Specification Description Specification Communication Middle Washer Φ8.4*Φ16*t1.6 450mm Wire Communication Lower Washer Φ6.4*Φ12*t1.6 1700mm Wire Spring Washer Φ8.1*Φ12.3*t2.1 Single Branch Wire 300mm Brown Internal Tooth Lock Washer Single Branch Wire 300mm Blue Φ8.4*Φ15*t0.8 Internal Tooth Lock Washer Φ4.3*Φ8*t0.5 Ground Lead Wire 600mm Screw M4*25... - Page 8 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: Remove the equipment from the carton and place it on the flat ground. As indicated by the arrow, lift the Left &...
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 3: #77 ST4.2*10 4PCS Attach the Left & Right Post Covers (No. #112 13*16 1PC 63 &...
-
Page 10: Maintenance And Care
MAINTENANCE & CARE General cleaning will help to prolong the life and improve the performance of your treadmill. Keep the treadmill clean and maintained by dusting the components on a regular basis. Cleaning the two exposed sides of the Running Belt (No. 9) will prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from the shoes does not wear the Running Board (No. -
Page 11: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: This treadmill does come pre-lubricated, but it is recommended to lubricate your treadmill before the first use. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board (No. 10) and Running Belt (No. 9) is essential as the friction affects the life span and operations of the treadmill. -
Page 12: Folding Instructions
FOLDING INSTRUCTIONS FOLDING: Before folding the treadmill, ensure that the incline is zero. Place your hand at position “D” and lift the Main Frame (No. 1) up until the Air Pressure Cylinder (No. 31) “C” locks into the tube. When the Air Pressure Cylinder (No. 31) successfully locks into the tube, you will hear a clicking sound. -
Page 13: How To Move The Treadmill
HOW TO MOVE THE TREADMILL Before attempting to move the treadmill, please make sure that it has been properly folded. Then unplug the power cord. To tilt, start by placing your hands at the handlebars of Computer Bracket (No. 6) to support the top end of the treadmill. -
Page 14: Grounding Instructions
GROUNDING INSTRUCTIONS WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before powering the treadmill. Any power supply source above or below this level could cause significant damage to the treadmill and/or user. -
Page 15: The Display Console
THE DISPLAY CONSOLE INCLINE SPEED WARNING If you feel uncomfortable at any time Do not touch any moving part of this during exercise, stop using the treadmill treadmill. Use as directed in the manual. immediately. Minors, and patients with heart or lung Risk of personal injury: keep children ease are prohibited from using this the age of 13 away from the... -
Page 16: Button Function
BUTTON FUNCTION START: Press this button to start the treadmill at an initial speed. STOP/PAUSE: This button has functions of PAUSE and STOP. When in use, press this button once to PAUSE your workout and the current workout data will still be shown. Press this button again to end your workout session and all data will be deleted and reset to the initial setting. - Page 17 INTERVAL PROGRAMS (P01-P15): Press the “PRG” button to select between program P01-P15. The “time” will flash. Press “SPEED ∧/ ∨” or “INCLINE ∧/∨” to set the workout time. Press “START” button to start the program. Press “SPEED ∧/∨” to change the speed during each section. Press “INCLINE ∧/∨”...
-
Page 18: Body Mass Index
CUSTOMIZED PROGRAM (U1-U3): The 3 customized programs allow the user to set their own program that can be used immediately. Setting of customized programs: In standby mode, press PRG button to the required customized program (U1~ U3). The “time” will flash, press SPEED ∧/∨... -
Page 19: Bluetooth Audio Function
PULSE MEASUREMENT FUNCTION: While the treadmill is on, hold the hand pulses for 5 seconds and the heart rate value will be displayed. The initial value is the actually measured heart rate, and the display range is 50-200 BPM. In the heartbeat measurement process, there will be a heart shaped icon flashing. - Page 20 -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
-
Page 21: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Put the safety key back. Change the safety key switch or ----------- The safety key falls off. sensor. If it still doesn’t work, change the computer module. Change the communication middle Inverter communication wire or the communication lower wire. error.
