Summary of Contents for Sunny TreadPad SF-T7970

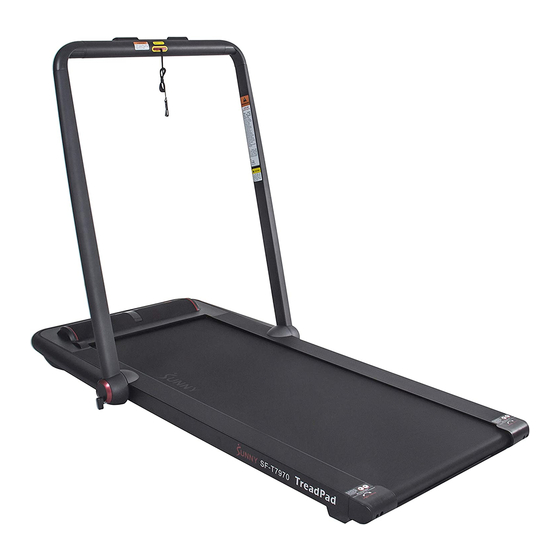

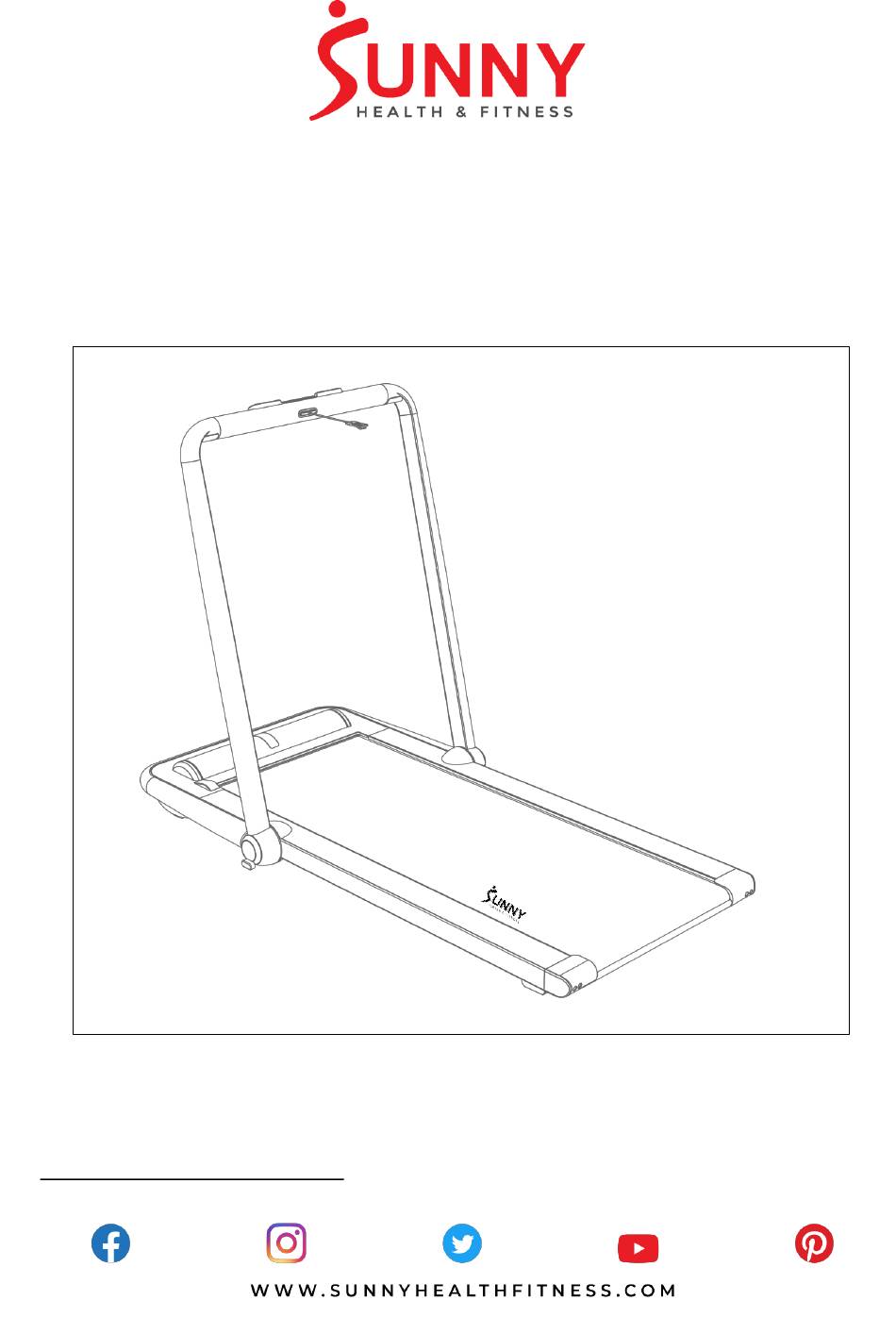

- Page 1 SUNNY TreadPad SF- T7970 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. - Page 3 Use caution when folding the SUNNY TreadPad to avoid injury. Do not fold the SUNNY TreadPad if it is turned on. Please pull out the power cord from the outlet when the SUNNY TreadPad is not in use. Always face forward to prevent dizziness from occurring.
-
Page 4: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 5 EXPLODED DIAGRAM 2...
-
Page 6: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Upright Post Device Holder Upright Post Side Handrail Cover Wheel Support Fastener Side Trim Cover Side Trim Cover Retainer Retainer Connector Spacer Display Seat Foot Pad Support Wheel Motor Gasket Bushing Left Bottom Knob Protective Strip Right Bottom... - Page 7 Description Spec. Qty. Description Spec. Qty. M8*1.25P*25 Hexagon Bolt Upper Control Board full tooth Cross Recessed Pan M1.6*10 full Display Panel Screw tooth PTFE Gasket 31*39*1.0 Lower Control Board Hexagon Socket M8*1.25P*4 Safety Key Slot Cylindrical Head Bolt 2 full tooth M6*1.0P*15 Safety Key Three-piece Bolt...
- Page 8 ASSEMBLY CONTENTS WHEN OPENING THE CARTON, THE FOLLOWING PARTS CAN BE FOUND: Main Product Remote Control User Manual Allen Wrench Knob Silicone Oil Power Line Safety Key Battery Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓...
- Page 9 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: Place the SUNNY TreadPad on a flat surface. It is not recommended to place the Sunny TreadPad on a soft or uneven surface.
- Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 4: Connect the SUNNY TreadPad to an appropriate power supply. STEP 5: Scan the QR barcode to directly locate the SUNNY HEALTH &...
-
Page 11: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION: 1. Remove the battery cover from the back of the Remote Control (No. 78). 2. Take out the 2 AAA batteries that are included inside the remote control box. 3. Install the 2 AAA batteries into the battery holder. Pay attention to the battery + and – ends before installing. - Page 12 • If the running belt is slipping: Turn both left and right adjusting screws half-turn clockwise at same time. • Check if an adjustment is needed after using the SUNNY TreadPad for 1 to 2 minutes. Lubricating the Running Belt: •...
-
Page 13: Display Console
In this mode, the SUNNY TreadPad stops responding to prevent non-users from triggering the treadmill. The SUNNY TreadPad will automatically go on standby and lock when not in use for more than 10 minutes. It can also be locked manually by pressing the MODE button for more than 2 seconds when stopped and not in use. -
Page 14: Automatic Mode
APP. When the Handrail (No. 2) is closed, the maximum speed is 3.75mi/h which is suitable for walking. You can start the SUNNY TreadPad by pressing the START button on the Remote Control (No. 78) or in the APP. -
Page 15: Bluetooth Function
SUNNY TreadPad’s speaker. SAFETY LOCK FUNCTION: Removing the Safety Key (No. 67) from the Handrail (No. 2) will stop the SUNNY TreadPad immediately. Once the SUNNY TreadPad reaches a full stop, the Remote Control (No. 78) will show “SAFE” and the SUNNY TreadPad will beep. To start the SUNNY TreadPad again, insert the Safety Key (No. -
Page 16: Specifications
IMPORTANT NOTE: REMOTE CONTROL NOTICE: If the Remote Control (No. 78) does not activate the SUNNY TreadPad, or you have changed to a replacement remote, the Remote Control (No. 78) and SUNNY TreadPad will need to be paired. REMOTE CONTROL PAIRING METHOD: Restart the SUNNY TreadPad. -
Page 17: Grounding Methods
SUNNY TreadPad has been properly grounded. Do not modify the plug provided with this SUNNY TreadPad. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. Ensure that the SUNNY TreadPad is connected to an outlet with the same configuration as the plug. - Page 18 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
