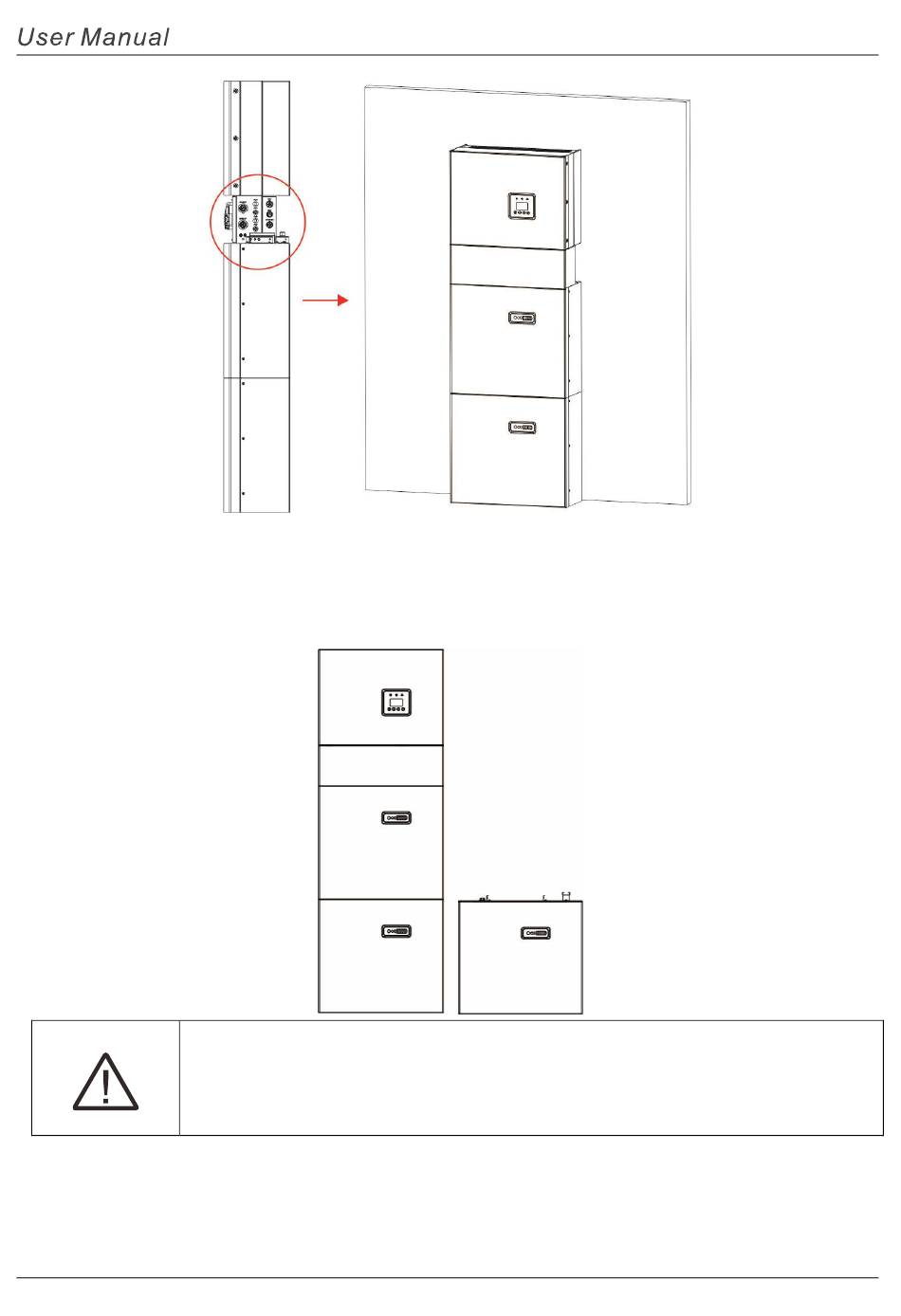

If you connect more than 2 battery modules to the system, only install the additional batteries 5-6 (third
module) on the side of the system. You can connect up to 6 batteries (three modules), each 2 batteries are
mounted on top of each other.
To do this, carry out the individual installation steps as for the first two batteries (first module), including the
DIP setting on the last module.
1)
2)
3)
Recommended AC circuit breaker rating is 32A.
It is necessary to disconnect the power line, communication line and communication
line between the battery pack and inverter to manually sleep all battery packs.
The method of anti-islanding protection is Method(c)
