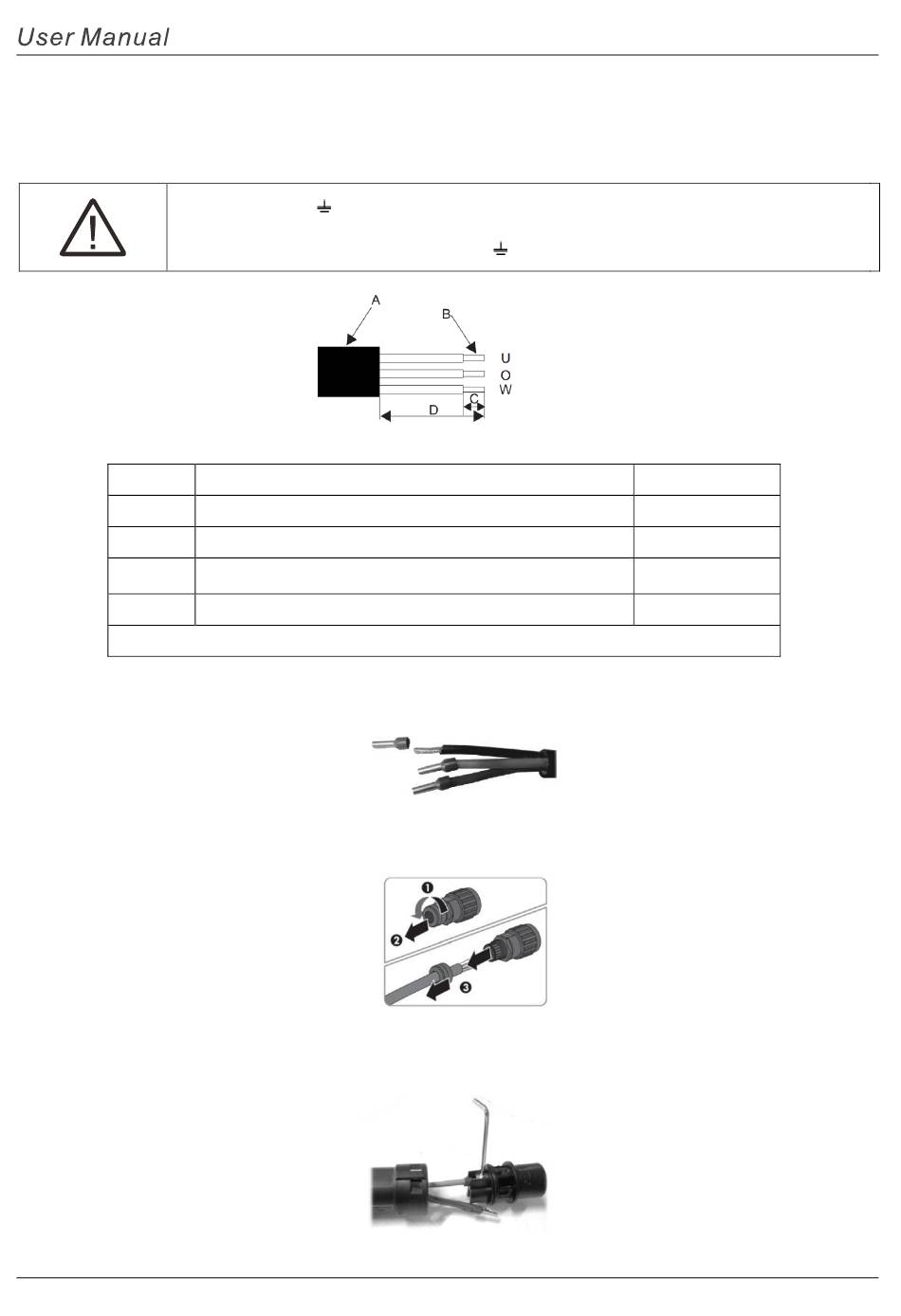

3.2.1 Wiring and connections
1
. Please make AC cables on
There are"L" "N'' '' '' symbols marked inside the connector, the Line wire of grid must
be connected to "L" terminal; the Neutral wire of grid must be connected to "N" terminal;
the Earth of grid must be connected to '' ''
Object
A
B
C
D
The PE conductor must be 10mm longer than the L and N conductors
b. Insert the conductor into the suitable ferrule acc. to DIN 46228-4 and crimp the contact.
c. Unscrew the swivel nut from the threaded sleeve and thread the swivel nut and threaded sleeve over the
AC cable.
d. Insert the crimped conductors L, N and PE into the corresponding terminals and tighten the screw with a
hex key wrench screwdriver (size:2.5, 1.2-2.0N.m). Ensure that all conductors are securely in place in the
screw terminals on the bush insert.
site. Wiring sizing to be in accordance with local wiring regulations
Description
External diameter
Copper conductor cross-section
Stripping length of the insulated conductors
Stripping length of the outer sheath of the AC cable
Telephone : +44 (0) 1245 428500
b
c
d
Email : sales@rayleigh.com
Value
12mm to 18mm
4mm² to 10mm²
approx.13mm
approx.53mm
