- Page 1 USER USER PE-8004MX Manual Manual PCI Express x4/ 4-channel 10G LAN,IEEE 802.3at Compliant Intel ® X710-AT2 M12 PoE PCIe Expansion Card 1.0.0 Edition 20230323...
- Page 2 Record of Revision Version Date Page Description Remark 0.10 2023/03/09 Preliminary Release 1.00 2023/03/23 Official Release ©Vecow PE-8004MX User Manual...
- Page 3 This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specifications are subject to change without prior notice. It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product;...
- Page 4 Order Information Part Number Description ® PE-8004MX Intel X710-AT2 4-port X-coded M12 10GigE IEEE 802.3at PoE+ Expansion Card ©Vecow PE-8004MX User Manual...
-
Page 5: Table Of Contents
CHAPTER 1 GENERAL INTRODUCTION 1.1 Overview 1.2 Features 1.3 Product Specification 1.4 Mechanical Dimension CHAPTER 2 GETTING TO KNOW YOUR PE-8004MX 2.1 Packing List 2.2 PE-8004MX I/O and Indication CHAPTER 3 GETTING START CHAPTER 4 DRIVER INSTALLATION AND SETTING 4.1 PE-8004MX Install Driver 4.2 Jumbo Frame... -
Page 6: Chapter 1 General Introduction

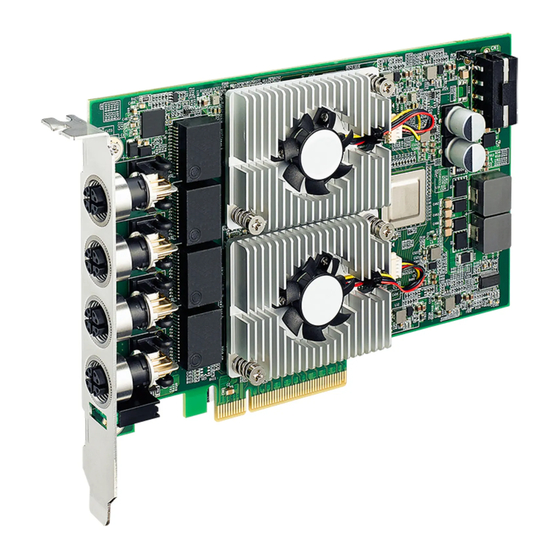

GENERAL INTRODUCTION 1.1 Overview Vecow PE-8004MX is a 4-port 10GigE PCIe Express x4 Expansion Card, supporting IEEE 802.3at PoE+, rugged X-code connector, up to 25.5W ® power output at 48V DC per port. Based on Intel X710-AT2 LAN chipset, the PE-8004MX supports a 4-port Independent 10GigE Ethernet controller, delivering up to 10Gbps data rate. -
Page 7: Jumbo Frame
-40°C to 85°C (-40°F to 185°F) Humidity 5% to 95% Humidity, non-condensing Relative Humidity 95% @ 50°C Certifications CE, FCC Mechanical Dimension (W x D x H) 168mm x 105mm (6.6" x 4.1") ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual GENERAL INTRODUCTION... -
Page 8: Mechanical Dimension
1.4 Mechanical Dimension 167.65 (6.600) Unit : mm (inch) ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual GENERAL INTRODUCTION... - Page 9 GETTING TO KNOW YOUR PE-8004MX 2.1 Packing List Item Description ® PE-8004MX, Intel X710-AT2 4-port X-coded M12 10GigE IEEE 802.3at PoE+ Expansion Card ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual GETTING TO KNOW YOUR PE-8004MX...
-
Page 10: Pe-8004Mx I/O And Indication
LAN 1 LAN 2 LAN 3 LAN 4 PE-8004MX is equipped with 4 IEEE 802.3at PoE+ ports for transmitting power as much as 25.5W / 48V per port and 1G/10GBASE-T gigabit data signals over standard Ethernet CAT-5/CAT-6 cable. ® Each PoE connection is powered by Intel X710-AT2 10GBASE-T Gigabit Ethernet. - Page 11 2.2.2 Power Input CN 1 The PE-8004MX is also equipped with one 4-pin power plug (12V, 6A max) for additional power supply. For most cases, the power obtained from PCIe bus is sufficient for the PoE devices, and you do not need to supply extra power to the card.
- Page 12 Fan power connector supports for additional thermal requirements. The pin assignments of FAN1/ FAN2 are listed in the following diagram : Pin input : Pin No. Definition Pin No. Definition +5V (0.5A max) ------ ------ ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual GETTING TO KNOW YOUR PE-8004MX...
- Page 13 Step 1. Insert edge-finger and PCI Express I/O bracket into PCI Express vertical edge card connector carefully. Step 2. Make sure edge-finger and PCI Express I/O bracket are inserted smoothly. ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual GETTING START...
- Page 14 Step 3. Make sure PCI Express I/O bracket aligns screw hole. Step 4. Fasten the M3 or #6-32 screw. ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual GETTING START...
-
Page 15: Pe-8004Mx Install Driver
DRIVER INSTALLATION AND SETTING 4.1 PE-8004MX Install Driver This section describes : How to install drivers for PE-8004MX. System OS : Windows 10-64bit Step 1. Execute "Wired_driver_28.0_x64.exe" and then go "OK" step. Step 2. Installing Drivers. ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual... - Page 16 Step 3. Select "Close" step. Step 4. Auto Detect in "four Intel Ethernet Converged Network Adapter X710-TL#xx". ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual DRIVER INSTALLATION AND SETTING...
- Page 17 → Device Manager → Network adapters". Step 2. Select anyone "Intel Ethernet Converged Network Adapter X710-TL #xx", right Click and select "Properties", a property dialog appears and Click on the Advanced page. ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual DRIVER INSTALLATION AND SETTING...
- Page 18 Step 3. Select the "Jumbo Packet", settings, and select the expected jumbo frame size and then go "OK" Finish. ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual DRIVER INSTALLATION AND SETTING...
- Page 19 APPENDIX A : PoE Guide A.1 Function Description The PE-8004MX series offers a 4-port PoE LAN 1 LAN 2 LAN 3 LAN 4 PoE Power LED LAN 1 LAN 2 LAN 3 LAN 4 Pin No. Definition Pin No. Definition...
- Page 20 4. PE-2000 : DIO1 (ID is the same, ID = 0 ~ 7), POE (ID = 0) 5. UE-1000 : USB (IDUE-1000 = IDPE-3000 >> 1 & 3 | IDPE-3000 << 2 & 4) Default Address:0x42(1) PE-8004MX controls PD69104B PoE Power ON/OFF via SMBUS ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual...
- Page 21 API library. Source folder include sample program source code that compile on Visual Studio 2008. A.3 Sample Sample folder include Windows and linux, x32 and x64 versions, as shown below : ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual Appendix A...
- Page 22 PE-8004MX default is Auto power detect mode, you can use the following software control to switch to manual mode. ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual Appendix A...
- Page 23 APPENDIX B : Software Functions B.1 Driver API Guide In Header folder, Vecow.h and VecowLinux.h contain usabled API for Windows/Linux. BOOL Initial_POE(BYTE Scan, BYTE ID) Initial card for POE A. Scan : POE ID scan type 2: Auto scan; 1: Manual setup.
- Page 24 B. POE ([3:0]): POE state, pin setting by hexadecimal bitmask 1: On; 0: Off Return : TRUE (1) : Success; FALSE (0) : Fail (Initial error, or out of range error, or hardware problem) ©Vecow PE-8004MX User Manual ©Vecow PE-8004MX User Manual Appendix B...
- Page 25 No part of this publication may be reproduced in any form or by any means, electric, photocopying, or recording, without prior authorization from the publisher. The rights of all the brand names, product names, and trademarks belong to their respective owners. © Vecow Co., Ltd. 2023. All rights reserved.
