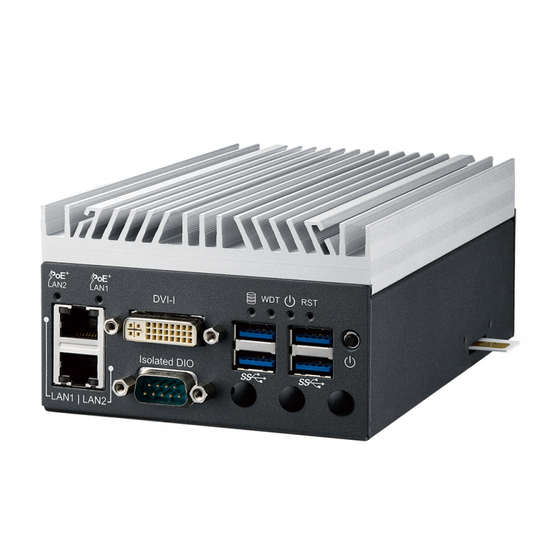

- Page 1 USER SPC-200 0 MANUAL Ultra-Compact, Rugged, Extended Temp, Fanless Embedded System with Quad Core Intel® Atom™ E3845 Processor 1.10 Edition, July., 24, 2015...
- Page 2 © 2015 Vecow Co., Ltd. All rights reserved. All information is subject to change without notice. For further support information, refer to the Technical Support and Professional Services appendix. To comment on Vecow Co., Ltd. documentation, refer to the Vecow Co., Ltd. web site at www.vecow.com.
- Page 3 Record of Revision Version Date Page Description Remark 1.00 10/22/2014 Preliminary Release 1.10 07/24/2015 Update Release...
-
Page 4: Declaration Of Conformity
This manual is intended to be used as a practical and informative guide only and is subject to change without prior notice. It does not represent commitment from Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product or documentation, nor for any infringements upon the rights of third parties, which may result from such use. -
Page 5: Order Information
Certified DDR3L-1333 8G RAM DDR3L8G Certified DDR3L-1333 4G RAM DDR3L4G Vecow DDR3L 4GB 1333/1066MHz RAM, Micron® Chip, Wide Temperature -40°C ~ +85°C M340L-W28M1 60W, 24V/2.5A 100V AC to 240V AC Power Adapter for 2 Pin 3.5mm Terminal Block PWA-60WP2 Mini PCIe WiFi Module with Antenna... -
Page 6: Table Of Contents
Table of Contents CHAPTER1 GENERAL INTRODUCTION Overview Product Specification 1.2.1 Specifications of Vecow SPC-2845 1.2.2 Specifications of Vecow SPC-2145 Supported CPU List Mechanical Dimension CHAPTER2 GETTING TO KNOW YOUR SPC-2000 Packing List Front Panel I/O Functions Power Button Reset Tact Switch... - Page 7 2.19 JP1 PCIe Mode Jumper Setting 2.20 CN15 Internal USB Connector CHAPTER3 SYSTEM SETUP How to Open Your SPC-2000 Chassis Installing DDR3L SODIMM Modules Installing SSD/HDD Installing MiniPCIe Module Mount Your SPC-2000 CHAPTER4 BIOS AND DRIVER BIOS Settings Main Menu Advanced Function 4.3.1 ACPI Setting...
-
Page 8: Chapter1 General Introduction
IOT (Internet of Things), In-Vehicle Infotainment (IVI) systems, and M2M (Machine to Machine) applications. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 9: Product Specification
HDD: 20G @ Wallmount, Half sine, 11ms IEC 60068-2-64 (Random 1 Oct./min. 1hr/axis.) Vibration HDD: 1 Grms @ 5Hz to 500Hz CE, FCC, EN50155, EN50121-3-2 Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 10: Specifications Of Vecow Spc-2145
HDD: 20G @ Wallmount, Half sine, 11ms IEC 60068-2-64 (Random 1 Oct./min. 1hr/axis.) Vibration HDD: 1 Grms @ 5Hz to 500Hz CE, FCC, EN50155, EN50121-3-2 Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 11: Supported Cpu List
CPU Freq (GHz) Nominal/Turbo E3845 1.91GHz 542/792 E3827 1.75GHz 542/792 E3826 1.46GHz 533/667 E3825 1.33 GHz 533 (No Turbo) E3815 1.46 GHz 400 (No Turbo) Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 12: Mechanical Dimension
GENERAL INTRODUCTION Mechanical Dimension Figure1.1 SPC-2145 Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... - Page 13 Figure1.2 SPC-2845 Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual...
-
Page 14: Chapter2 Getting To Know Your Spc-2000
On SPC-2000 series, all I/O connectors are located on front panel and rear panel. Most general computer connectors (i.e. LAN, USB, DVI-I, DIO and etc.) are placed on the front panel. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 15: Power Button
(i.e. once turning off the system, you shall wait for 4 seconds to initiate another power-on operation). Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User... -
Page 16: Reset Tact Switch
It is a hardware reset switch. Use this switch to reset the system without turning off the power. Momentarily pressing the switch will activate a reset. PWR, WDT, HDD LED Indicator Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 17: Dvi-I Connector
DVI signals or VGA signal. The DVI output mode supports up to 1920x1200 resolution and VGA output mode supports up to 2560x1600 resolution. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User... -
Page 18: Isolated Dio Connector
Pin Number Description Mapping to SIO GPIO Function OUTPUT0 SIO_GPO70 INPUT 0 SIO_GPO74 OUTPUT1 SIO_GPO71 INPUT 1 SIO_GPO75 OUTPUT2 SIO_GPO72 INPUT 2 SIO_GPO76 OUTPUT3 SIO_GPO73 INPUT 4 SIO_GPO77 GND_ISO Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... - Page 19 Absolute Maximum Ratings Values Unit High-Level Input Voltage Low-Level Input Voltage GPO Mode Internal Block Diagram Absolute Maximum Ratings Values Unit VDSS Drain-source voltage Output current Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual...
-
Page 20: Dual Poe Lan Connector
100 Mbps Ethernet network. The LED indicator on the left bottom corner will flash on and off when Ethernet packets are being transmitted or received. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User... - Page 21 SPC-2000 has a PSE controller designed for use in IEEE 802.3 Type 1 and Type 2 (highpower) compliant Power over Ethernet systems. If insert PD device, then PoE LED indicator is on Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User...
-
Page 22: Usb
High-Speed (HS), Full-Speed (FS) and Low-Speed(LS) traffic on the bus. 2.10 DC-in 6V to 36V Terminal Block The SPC-2000 offers 6 to 36 VDC power input with the terminal block. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 23: Remote Power On/Off Switch
This terminal block support dual function of soft power-on / power-off (instant off or delay 4 second), and suspend mode. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User... -
Page 24: Com Serial Port
Serial Port 2 default setting is RS-232, if you want to use RS-422 or RS-485, you can find the setting in BIOS. BIOS Setting Function RS-232 RS-422 (5-wire) COM1~COM4 RS-422 (9-wire) RS-485 RS-485 w/z auto-flow control Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 25: Audio Out Connector
Intel Azalia standard. To utilize the audio function in Windows, you need to install corresponding drivers for Realtek ALC892 codec. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 26: Main Board Expansion Connectors
The figure below is the top view of the SPC-2000 main board which is the main board used in the SPC-2000 Series system. It shows the location of the connectors. CN11 BAT1 CN14 SODIM CN12 CN10 CN13 CN15 Button Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... - Page 27 The figure below is the bottom view of the SPC-2000 main board. Button Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual...
-
Page 28: Cn5 Sata Ii Connector
The SPC-2000 features high performance Serial ATA II interfaces that eases cabling to hard drives or SSD with thin and short cables while application need larger storage capacity. Pin Number Definition Pin Number Definition Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 29: Mini Pcie Connector (Cn8) With Sim Card Slot (Cn7)
Pin # Signal Name Pin # Signal Name +3.3Vaux +1.5V +3.3Vaux +3.3Vaux USB_D+ USB_D- PETp0 PETn0 SMB_DATA SMB_CLK +1.5V PERp0 PERn0 +3.3Vaux PERST# Mechanical Key UIM_VPP Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... - Page 30 GETTING TO KNOW YOUR SPC-2000 REFCLK+ UIM_RST REFCLK- UIM_CLK UIM_DATA CLKREQ# UIM_PWR 1.5V WAKE# 3.3Vaux Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual...
-
Page 31: Main Board Jumper Settings
1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 32: Jp2(A) Cmos Clear Jumper Setting
GETTING TO KNOW YOUR SPC-2000 2.18 JP2(A) CMOS Clear Jumper Setting Setting Description Normal (Default) Clear CMOS Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 33: Jp1 Pcie Mode Jumper Setting
2.19 JP1 PCIe Mode Jumper Setting Setting Description Auto Detection (Default) Mini PCIe mSATA Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 34: Cn15 Internal Usb Connector
2.20 CN15 Internal USB Connector CN15 This internal USB connector type is JST-BM04B-SRSS-TB Internal USB connector pinouts as below Pin No. Description +3.3V USB_N USB_P Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 35: Chapter3 System Setup
How to Open Your SPC-2000 Chassis 1. Remove 4 pcs M3 PH screw from Heatsink top 2. Remove 8 pcs #4-40 spacer from front panel Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... - Page 36 SYSTEM SETUP 3. Remove 2 pcs M3 FH screw from front panel 4. Take off front panel away from SPC-2000 Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual...
- Page 37 6. Pull Heatsink and Bottom case until you can see the fully GPIO socket Caution: don’t pull out heatsink and bottom case completely before removing GPIO cable from socket Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User...
- Page 38 SYSTEM SETUP 7. Remove GPIO cable from PCB socket 8. Separate Heatsink and Bottom case Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual...
-
Page 39: Installing Ddr3L Sodimm Modules
Installing DDR3L SODIMM Modules 1. Remove 4 pcs M3 PH screw from HDD bracket 2. Install RAM module into RAM socket Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... - Page 40 SYSTEM SETUP 3. Make sure RAM socket and RAM module both side locked Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual...
-
Page 41: Installing Ssd/Hdd
Installing SSD/HDD 1. Take SSD module and SSD Bracket 2. Match SSD bracket hole and SSD screw hole. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... - Page 42 SYSTEM SETUP 3. Locked 4 pcs M3 screw in SSD screw hole. 4. Insert SSD SATA connector into PCB SATA socket. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual...
-
Page 43: Installing Minipcie Module
5. Locked 4 pcs M3 PH screw into spacer. Installing Mini PCIe Module 1. Insert miniPCIe module into miniPCIe socket Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... - Page 44 SYSTEM SETUP 2. Locked 2 pcs M2.5 PH screw into PCB spacer Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual...
-
Page 45: Mount Your Spc-2000
Mount Your SPC-2000 1. Locked 4 pcs M3 screw both side 2. Locked 4 pcs M3 PH screw Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 46: Chapter4 Bios And Driver
In this page , you could make sure you CPU type and DRAM type that you are install into this system. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 47: Advanced Function
Enable Hibernation: It is able to use Hibernate function if O.S support. But some Operation system maybe not effective with this function. ACPI Sleep state: Select sleep state while SUSPEND button pressed. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 48: Serial Port 1 Configuration
Here have 3 options : RS-232 Mode RS-422 Mode RS-485 Mode 9-bit Multi-Drops Mode: Enable/Disable Multi Drops mode to use the enhance function of RS-485 as multi device connection. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 49: Serial Port 2 Configuration
Here have 3 options : RS-232 Mode RS-422 Mode RS-485 Mode 9-bit Multi-Drops Mode: Enable/Disable Multi Drops mode to use the enhance function of RS-485 as multi device connection. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 50: Serial Port 3 Configuration
Here have 3 options : RS-232 Mode RS-422 Mode RS-485 Mode 9-bit Multi-Drops Mode: Enable/Disable Multi Drops mode to use the enhance function of RS-485 as multi device connection. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 51: Serial Port 4 Configuration
Here have 3 options : RS-232 Mode RS-422 Mode RS-485 Mode 9-bit Multi-Drops Mode: Enable/Disable Multi Drops mode to use the enhance function of RS-485 as multi device connection. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 52: Ppm Configuration
Boot Save & Exit Item Specific Help CPU Configuration CPU Speed 1910MHz 64bit support Supported Inter Virtualization Technology [Disable] Figure 1-5: Trusted Computing setup screen Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 53: Ide Configuration
Determines how the SATA transfer mode for operate. Here have three option for choice [IDE] / [AHCI] . Serial Port 0~1 : This system offers two SATA port for connection SATA device. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 54: Chipset Function
Boot Save & Exit Item Specific Help Restore AC Power Loss [Last State ] Figure 1-12: Power Loss Setup screen Restore AC Power Loss : Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... - Page 55 [Power On ] : When plug-in the power source , system will auto booting . [Last State ] : When plug-in the power source , system will keep on last power status. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User...
-
Page 56: Boot Function
Chipset Security Boot Save & Exit Item Specific Help Boot Configuration Restore Defaults Save as User Defaults Restore User Defaults Figure 1-13 Boot Setup screen Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... - Page 57 Save as Use Default: Uses can use this function to match the target system. Restore as Use Default: Restore all BIOS setting to User Default. Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual...
-
Page 58: Appendix A: Isolated Dio Guide
The data format is four bit , please mask upper four bit to avoid some run-time error. byte testdata; outport ( DIO_Port , 0x0F&testdata F. Input Data You need shift right four bit to get input value. inportb(DIO_Port)>>4; Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 59: Appendix B: Wdt Function
4. Start WDT Time out value Here have 2 Byte for WDT timing count, MSB and LSB should be write the value separate. WDT_TimeOut_LSB,SPECIAL WDT_TimeOut_MSB,SPECIAL outb(WDT_TimeOut_LSB,SPECIAL_ADDRESS_PORT); outb(WDT_TimeOutValue,SPECIAL_DATA_PORT); Copyright © Vecow Co., Ltd. All Rights Reserved. SPC-2000 Series Ultra-compact Embedded System User Manual... -
Page 60: Appendix C: Win7 Installation Guide
Vecow has Customer License Agreement with Microsoft and can help to purchase and pre-install OS for all Vecow products. Along with system burn-in test, USB 3.0 driver will be installed and checked before shipping. You are welcome to include storage device and Operation System when ordering products. - Page 61 LAN driver USB 3.0 driver Graphics ( .NET 4.0 required ) All driver packages could be found at Vecow web site or Driver CD which attached on the shipment with the embedded system. Win7 System image file Include USB 3.0 driver in Win7 (ref. to above steps)
