Vecow SE-1000 Series User Manual

Vecow SE-1000 Series User Manual

Cx1/4-channel gigabit lan, ieee 802.3at compliant intel i210 poe+/lan bypass expansion card

Advertisement

Quick Links

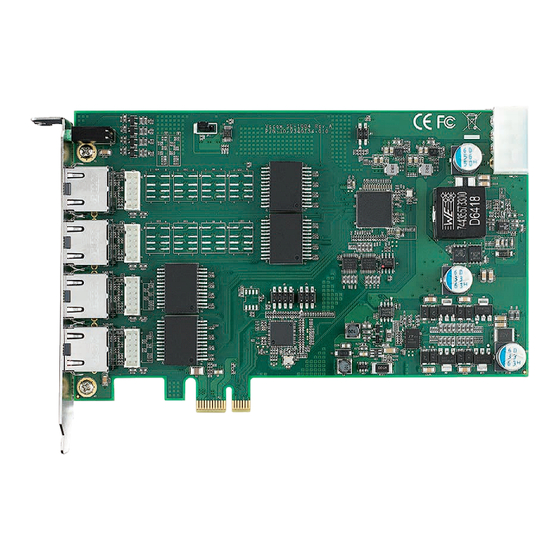

PCI Express x1/4-channel Gigabit LAN, IEEE 802.3at Compliant
Intel
SE-1000
®
I210 PoE
+
/LAN Bypass Expansion Card
USER
USER
Manual
Manual
1.0.0 Edition 20180907

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE-1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vecow SE-1000 Series

  • Page 1 USER USER SE-1000 Manual Manual PCI Express x1/4-channel Gigabit LAN, IEEE 802.3at Compliant Intel ® I210 PoE /LAN Bypass Expansion Card 1.0.0 Edition 20180907...
  • Page 2 Record of Revision Version Date Page Description Remark 08/31/2018 Preliminary Release 09/19/2018 Official Release ©Vecow SE-1000 User Manual...
  • Page 3 This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specifications are subject to change without prior notice. It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product or documentation or any infringements upon the rights of third parties, which may result from such use.
  • Page 4 Part Number Description ® SE-1004 Intel I210 4-Channel PCI Express LAN Switch Card with PoE ® SE-1014 Intel I210 4-Channel PCI Express LAN Switch Card with advanced LAN Bypass ©Vecow SE-1000 User Manual...
  • Page 5: Table Of Contents

    Table of Contents CHAPTER 1 GENERAL INTRODUCTION 1.1 Overview 1.2 Features 1.3 Product Specification 1.3.1 Specifications of Vecow SE-1004 1.3.2 Specifications of Vecow SE-1014 1.4 Mechanical Dimension 1.4.1 SE-1004 1.4.2 SE-1014 CHAPTER 2 GETTING TO KNOW YOUR SE-1000 2.1 Packing List 2.2 SE-1004 I/O and Indication...
  • Page 6: Chapter 1 General Introduction

    9.7K Jumbo Frame, IEEE 1588 Precision Time Protocol (PTP), IEEE 802.3AS, Industrial-grade -40°C to 85°C Operating Temperature and easy maintenance, Vecow SE-1000 series expansion card is your flexible solution for Intelligent Surveillance, In-Vehicle Management, ITS (Intelligent Transportation System), Industrial Ethernet, Mobile DVR/NVR or any industrial-grade networking applications.
  • Page 7: Product Specification

    1.3 Product Specification 1.3.1 Specifications of Vecow SE-1004 Ethernet Interface PCI Express x1 ® Chipset 1 Intel Ethernet Controller I210 Data Rate 10/100/1000 Mbps Jumbo Frame Up to 9728 byte Link Aggregation (LAG) Present Connector 8-pin RJ45 PoE Standard IEEE 802.3at compliant...
  • Page 8: Specifications Of Vecow Se-1014

    1.3.2 Specifications of Vecow SE-1014 Ethernet Interface PCI Express x1 ® Chipset 1 Intel Ethernet Controller I210 Data Rate 10/100/1000 Mbps Jumbo Frame Up to 9728 byte Link Aggregation (LAG) Present Connector 8-pin RJ45 Environment Operating Temperature -40°C to 85°C (-40°F to 185°F) Storage Temperature -40°C to 85°C (-40°F to 185°F)
  • Page 9: Mechanical Dimension

    1.4 Mechanical Dimension 1.4.1 SE-1004 180.4 (7.10") 21.1 (0.83") 167.7 (6.60") Unit: mm (inch) 18.6 (0.73") 1.4.2 SE-1014 180.4 (7.10") 21.1 (0.83") 167.7 (6.60") Unit: mm (inch) 18.6 (0.73") GENERAL INTRODUCTION ©Vecow SE-1000 User Manual...
  • Page 10: Chapter 2 Getting To Know Your Se-1000

    /LAN Bypass, 4-Channel, ® GigE, IEEE 802.3at Compliant Intel I210 PCI Express Expansion Card (It is based on the configuration you ordered.) Accessory box, which contains Vecow Drivers & Utilities DVD GETTING TO KNOW YOUR SE-1000 ©Vecow SE-1000 User Manual...
  • Page 11: Se-1004 I/O And Indication

    The pin-outs of LAN 1 and LAN 4 are listed as follows : Pin No. 10/100 Mbps 1000 Mbps E_TX+ MDI0_P PoE+ E_TX- MDI0_N PoE+ E_RX+ MDI1_P PoE- ----- MDI2_P ----- ----- MDI2_N ----- E_RX- MDI1_N PoE- ----- MDI3_P ----- ----- MDI3_N ----- GETTING TO KNOW YOUR SE-1000 ©Vecow SE-1000 User Manual...
  • Page 12 (+5V/Red, GND/Black, GND/Black, +12V/Yellow) inside the host computer. Please always confirm the polarity before you plug into the onboard 4-pin power plug. CN3 : Pin No. Definition Pin No. Definition +12V GETTING TO KNOW YOUR SE-1000 ©Vecow SE-1000 User Manual...
  • Page 13 2.2.3 IEEE 1588 Intel I210 supports a header for IEEE 1588 related applications. Pin No. Description Pin No. Description SPD0 SPD1 SPD2 SPD3 Ground Ground GETTING TO KNOW YOUR SE-1000 ©Vecow SE-1000 User Manual...
  • Page 14 2.2.4 PoE Power On/Off SE-1004 controls LTC4266 PoE Power ON/OFF Address as below : Address 0x40 GETTING TO KNOW YOUR SE-1000 ©Vecow SE-1000 User Manual...
  • Page 15: Se-1014 I/O And Indication

    There are four 8-pin RJ-45 jacks supporting 10/100/1000 Mbps Ethernet connections in SE-1014. Pin No. 10/100 Mbps 1000 Mbps E_TX+ MDI0_P E_TX- MDI0_N E_RX+ MDI1_P ---- MDI2_P ----- MDI2_N E_RX- MDI1_N ----- MDI3_P ------ MDI3_N GETTING TO KNOW YOUR SE-1000 ©Vecow SE-1000 User Manual...
  • Page 16 2.3.2 IEEE 1588 Intel I210 supports a header for IEEE 1588 related applications. Pin No. Description Pin No. Description SPD0 SPD1 SPD2 SPD3 Ground Ground GETTING TO KNOW YOUR SE-1000 ©Vecow SE-1000 User Manual...
  • Page 17 2.3.4 LAN Bypass Enable and Disable Jumper Setting JP1 controls LAN bypass enabling and disabling. Jumper Setting : Jumper Setting Description *LAN 1 LAN 2 LAN bypass Enable LAN 1 LAN 2 LAN bypass Disable GETTING TO KNOW YOUR SE-1000 ©Vecow SE-1000 User Manual...
  • Page 18: Chapter 3 Getting Start

    GETTING START 3.1 Installing SE-1000 Step 1. Insert SE-1000 golden finger and PCI bracket into PCIe socket carefully. Step 2. Make sure golden finger and PCI bracket are inserted smoothly. GETTING START ©Vecow SE-1000 User Manual...
  • Page 19 Step 3. Make sure the bracket aligns screw hole. Step 4. Fasten the M3 screw. GETTING START ©Vecow SE-1000 User Manual...
  • Page 20: Appendix A : Poe Guide (Se-1004)

    LAN 4 LAN 4 LAN 3 LAN 2 LAN 1 PoE Power LED Pin No. Definition Pin No. Definition LAN 1 POE 0 LAN 3 POE 2 LAN 2 POE 1 LAN 4 POE 3 Appendix A ©Vecow SE-1000 User Manual...
  • Page 21 No part of this publication may be reproduced in any form or by any means, electric, photocopying, or recording, without prior authorization from the publisher. The rights of all the brand names, product names, and trademarks belong to their respective owners. © Vecow Co., Ltd. 2018. All rights reserved.

This manual is also suitable for:

Se-1014Se-1004
