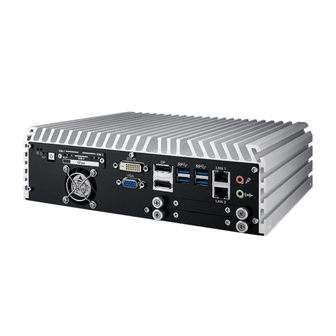

Vecow ECS-9600 GTX950 User Manual

Vecow ECS-9600 GTX950 User Manual

Quad core intel xeon / core i7 processor embedded system intel cm236 chipset, nvidia geforce gtx 950 graphics engine, high performance, independent graphics, en50155
Hide thumbs Also See for ECS-9600 GTX950:

Advertisement

Quick Links

ECS-9700/9600 GTX950
Quad Core Intel
®
Intel
®
CM236 Chipset, NVIDIA GEFORCE
High Performance, Independent Graphics, EN50155
Xeon
®
/ Core
i7 Processor Embedded System
®
GTX 950 Graphics Engine,
USER
USER
Manual
Manual
1.1.0 Edition 20170718

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECS-9600 GTX950 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vecow ECS-9600 GTX950

  • Page 1 USER USER ECS-9700/9600 GTX950 Manual Manual Quad Core Intel ® Xeon ® / Core ™ i7 Processor Embedded System Intel ® CM236 Chipset, NVIDIA GEFORCE ® GTX 950 Graphics Engine, High Performance, Independent Graphics, EN50155 1.1.0 Edition 20170718...
  • Page 2 Record of Revision Version Date Page Description Remark 12/12/2016 Official Release 07/18/2017 17,68 Update...
  • Page 3 This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specifications are subject to change without prior notice. It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product or documentation or any infringements upon the rights of third parties, which may result from such use.
  • Page 4 Order Information Part Number Description ® ® ® ECS-9700, Quad Core Intel Xeon E3-1505M v5, NVIDIA ECS-9700-505M- ® GeForce GTX 950, 6 GigE LAN w/4 PoE , 2 SSD Tray, 6 USB GTX950 3.0, 4 COM, 4 SIM, 32 Isolated DIO (ECC supported) ®...
  • Page 5 Order Accessories Part Number Description DDR4 16G Certified DDR4 16GB 2133MHz RAM DDR4 8G Certified DDR4 8GB 2133MHz RAM DDR4 4G Certified DDR4 4GB 2133MHz RAM PWA-280WB-WT 280W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block (7.62mm pitch), Wide Temperature -30°C to +70°C PWA-160WB-WT 160W, 24V, 85V AC to 264V AC Power Adapter with 3-pin...
  • Page 6: Table Of Contents

    CHAPTER 1 GENERAL INTRODUCTION 1.1 Overview 1.2 Features 1.3 Product Specification 1.3.1 Specifications of ECS-9700 GTX950 1.3.2 Specifications of ECS-9600 GTX950 1.4 Supported CPU List 1.5 Mechanical Dimension 1.5.1 Dimensions of ECS-9700 GTX950 1.5.2 Dimensions of ECS-9600 GTX950 CHAPTER 2 GETTING TO KNOW YOUR ECS-9700/9600 GTX950 2.1 Packing List...
  • Page 7 CHAPTER 4 BIOS SETUP 4.1 Entering BIOS SETUP 4.2 Main 4.3 Advanced 4.4 Chipset 4.5 Security 4.6 Boot 4.7 Save & Exit APPENDIX A : Isolated DIO Guide APPENDIX B : Software Functions APPENDIX C : RAID Installation Guide APPENDIX D : Power Consumption APPENDIX E : Supported Memory &...
  • Page 8: Chapter 1 General Introduction

    EN50155 and EN50121-3-2 compliant, optional supports full function SUMIT A, B; Vecow ECS-9700/9600 GTX950 Series Embedded System is capable of providing diversified embedded applications. Gathering leading integration, outstanding system performance, excellent graphics...
  • Page 9: Features

    • 6 USB 3.0 (External) • 1 USB 2.0 (Internal) Isolated DIO 32 Isolated DIO (16 DI, 16 DO) Power, HDD, Wireless, PoE SIM Card 4 SIM Card Socket (3 External, 1 Internal) ©Vecow ECS-9700/ 9600 GTX950 User Manual GENERAL INTRODUCTION...
  • Page 10 Expansion Mini PCIe 4 Mini PCIe Socket : • 3 Full-size for PCIe/ USB/ External SIM Card/ mSATA • 1 Full-size for PCIe/ Internal SIM Card/ mSATA SUMIT A, B 2 SUMIT Slot (Optional) Graphics ® Graphics Processor • Intel HD Graphics P530/ 530 ®...
  • Page 11: Specifications Of Ecs-9600 Gtx950

    • IEC 60068-2-27 • SSD : 50G @ Wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 1.3.2 Specifications of ECS-9600 GTX950 System ® ® Processor Quad Core Intel Xeon E3-1505M v5/ Core™...
  • Page 12 I/O Interface Serial 4 COM RS-232/ 422/ 485 w/ auto flow control (ESD 8KV) • 6 USB 3.0 (External) • 1 USB 2.0 (Internal) Isolated DIO 16 Isolated DIO (8 DI, 8 DO) Power, HDD, Wireless, PoE SIM Card 4 SIM Card Socket (3 External, 1 Internal) Expansion Mini PCIe 4 Mini PCIe Socket :...
  • Page 13 95% at 60°C Shock • IEC 60068-2-27 • SSD : 50G @ Wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECS-9700/ 9600 GTX950 User Manual GENERAL INTRODUCTION...
  • Page 14: Supported Cpu List

    1.4 Supported CPU List Processor No. Cache Max. Frequency Embedded ® Xeon E3-1575M v5 Up to 3.00 GHz ® Xeon E3-1545M v5 Up to 2.90 GHz ® Xeon E3-1535M v5 Up to 2.80 GHz ® Xeon E3-1515M v5 Up to 2.80 GHz ®...
  • Page 15: Mechanical Dimension

    1.5 Mechanical Dimension 1.5.1 Dimensions of ECS-9700 GTX950 297.0 (11.69”) 282.0 (11.10”) 260.0 (10.24”) Unit: mm (inch) 1.5.2 Dimensions of ECS-9600 GTX950 297.0 (11.69”) 282.0 (11.10”) 260.0 (10.24”) Unit: mm (inch) ©Vecow ECS-9700/ 9600 GTX950 User Manual GENERAL INTRODUCTION...
  • Page 16: Ecs-9700/9600 Gtx950

    ● 3-pin pluggable terminal block ● 20-pin pluggable terminal block ● Foot Pad ● F-M3x4 for SSD/HDD screws ECS-9600 GTX950 Accessory box, which contains ● Vecow Drivers & Utilities DVD ● Wall-mounting bracket ● KHS#6-32x6 screw for wall-mounting bracket ● M2.5x6 screw for Mini PCIe Slot ●...
  • Page 17: Front Panel I/O & Functions

    2.2 Front Panel I/O & Functions In Vecow ECS-9700/9600 GTX950 series family, all I/O connectors are located on the front panel and the rear panel. Most of the general connections to computer device, such as USB, LAN Jack, Audio, VGA, Display, DVI-D and other additional storage, are placed on the front panel.
  • Page 18 2.2.2 Reset Tact Switch SIM 1 SIM 3 DVI-D LAN 1 SIM 2 WLAN CFast LAN 2 It is a hardware reset switch. Please use this switch to reset ECS-9700/9600 GTX950 without power off. Press the Reset Switch for a few seconds, and then reset will be enabled.
  • Page 19 • Twinkling : Data transferring. Green Power System power status (on/ off) 2.2.5 DVI-D Connector SIM 1 SIM 3 DVI-D LAN 1 SIM 2 WLAN CFast LAN 2 ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 20 The DVI-D connector on the front panel supports DVI display. This connector can output DVI signal. The DVI output mode supports up to 1920 x 1200 resolution and the DVI is automatically selected according to the display device connected. You will need a DVI-D cable when connecting to a display device. 2.2.6 VGA Connector SIM 1 SIM 3...
  • Page 21 LAN 1 is powered by Intel I219 Ethernet Phy and LAN 2 is powered by Intel I210 Ethernet engine. When both LAN 1 and LAN ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 22 2 work in normal status, iAMT 11.0 function is enabled. When using suitable RJ-45 cable, you can connect the system to other computers or to any other devices with Ethernet connection; for example, a hub or a switch. Moreover, both of LAN 1 and LAN 2 support Wake on LAN and Pre-boot functions. The pin-outs of LAN 1 and LAN 2 are listed as follows: Pin No.
  • Page 23 Mini PCIe SW2-2 SW2-4 Mini PCIe 2 Mini PCIe 4 OFF Auto Detection OFF Auto Detection (Default) (Default) Mini PCIe 4 only support PCIe interface SIM card module. ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 24 SIM 2 WLAN CFast LAN 2 There is a system FAN on front side for airflow direction outward. You can adjust the FAN Speed from Vecow BIOS Setting. (refer to 4.3.7_Hardware Monitor_FAN PWM Value) GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 25: Rear Panel I/O & Functions

    (instant off or delay 4 second), and suspend mode. Pin No. Definition Pin No. Definition Ignition External Power Button V+ External Power Button V- ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 26 2.3.3 COM Ports DIO 2 DIO 1 DC-IN Isolated Isolated LAN6 LAN5 LAN4 LAN3 COM 2 On | Off COM 1 DVI-I COM 4 COM 3 HDMI Serial port 1 to 4 (COM 1 to 4) can be configured for RS-232, RS-422, or RS- 485 with auto flow control communication.
  • Page 27 COM 3 CN27 COM 4 CN28 COM 3 & COM 4 MB connector pin out: Pin No. Signal Name Chassis GND CN27(COM3) CN28(COM4) CN27 CN28 COM3 COM4 ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 28 2.3.4 Rear USB 3.0 DIO 2 DIO 1 DC-IN Isolated Isolated LAN6 LAN5 LAN4 LAN3 COM 2 On | Off COM 1 DVI-I COM 4 COM 3 HDMI There are 2 USB 3.0 connections available supporting up to 5GB per second data rate in the front side of ECS-9700/9600 GTX950.
  • Page 29 Off: Non PD Green Light: PD installed & powered green LAN5 Green Off: Non PD Green Light: PD installed & powered green LAN6 Green Off: Non PD ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 30 2.3.6 Isolated DIO DIO 2 DIO 1 DC-IN Isolated Isolated LAN6 LAN5 LAN4 LAN3 COM 2 On | Off COM 1 DVI-I COM 4 COM 3 HDMI There is a 32-bit (16-bit DI, 16-bit DO) with 2 DIO connectors in the rear side. DI/DIO supports NPN(sink) and PNP(Source) mode, and each DI channel is equipped with a photocouper for isolated protection.
  • Page 31 Max. output current 100mA / 6 ~48V NPN (Sink Mode): DIO2 JP11 1-2 (Default) Max. Input current 100mA / 6 ~48V PNP (Source Mode): DIO2 JP11 Max. output current 100mA / 6 ~48V ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 32 JP11 JP10 DO reference circuit: Sink Mode Device DIO Connector (NPN, Default) 6-48V DC DIO_VDC (Pin 20) DO (Pin11-18) DIO_GND (Pin10,19) Source Mode Device DIO Connector (PNP) 6-48V DC DIO_VDC (Pin 20) DO (Pin11-18) DIO_GND (Pin10,19) 2.3.7 4 of 5 Independent Displays DIO 2 DIO 1 DC-IN...
  • Page 33: Main Board Expansion Connectors

    2.4.1 Inside View of ECS-9700/9600 GTX950 Main Board With Connector Location JP11 JP10 CN36 CN27 CN28 CN20 SATA3 SATA1 SATA4 SATA2 CN10 SUMITB SW11 CN12 CFast SUMITA ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 34 2.4.2 UPS Power Connector For UPS module optional, we use 4.2mm 2x2p power connector This system have a UPS power input connector for optional part UPS module. CN36 Pin No. Definition Pin No. Definition Ground Ground +VDC_IN +VDC_IN (10~36V, Max.8A) (10~36V, Max.8A) 2.4.3 Miscellaneous Pin Header 2.0mm 2x4p header...
  • Page 35 There are 2 DDR4 channel onboard and support DDR4 2133/1866, max 32GB. (Each channel 16GB) Slot Description Slot Description Slot1 / U2 DDR4 Channel A Slot2 / U3 DDR4 Channel B ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 36 2.4.5 BIOS Socket If the BIOS needs to be changed, please contact the Vecow RMA service team. 2.4.6 SATA Connector Standard 7 PIN SATA Connector There are 4 onboard high performance Serial ATA III. It supports higher storage capacity with less cabling effort and smaller required space. SATA4 is only for BOM option, default without function.
  • Page 37 480 Mbps transfer rate which comply with high speed USB specification Rev. 2.0. The USB interface is accessed through one standard USB 2.0 connector. This USB 2.0 does not support wake up function. ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 38 CN20 Pin No. Definition Pin No. Definition USB +VCC (+V5/Max. 0.5A) DATA- DATA+ Ground 2.4.9 SUMIT A, SUMIT B (Optional) This system has standard SUMIT A and SUMIT B for SUMIT type add on cards. SUMITB SUMITA GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 39 SPI_CS1# USB_3- Reserved LPC_DRQ1# USB_2+ LPC_AD0 USB_2- LPC_AD1 LPC_AD2 USB_1+ LPC_AD3 USB_1- LPC_FRAME# SERIRQ# USB_0+ Reserved USB_0- CLK_33MHz A_PET_P0 A_PER_P0 A_PET_N0 A_PER_N0 APRSNT#/A_PE_CLKREQ# PERST# A_CLKP WAKE# A_CLKN ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 40 SUMIT B Pin Out: Pin No. Function Pin No. Function B_PET_P0 B_PER_P0 B_PET_N0 B_PER_N0 C_CLKP B_CLKP C_CLKN B_CLKN CPRSNT#/C_PE_CLKREQ# C_PET_P0 C_PER_P0 C_PET_N0 C_PER_N0 C_PET_P1 C_PER_P1 C_PET_N1 C_PER_N1 C_PET_P2 C_PER_P2 C_PET_N2 C_PER_N2 C_PET_P3 C_PER_P3 C_PET_N3 C_PER_N3 PERST# WAKE# Reserved Reserved Reserved +3.3V +3.3V +3.3V...
  • Page 41 Mini PCIe SW2-2 Mini PCIe 2 Auto Detection (Default) Mini PCIe SW2-3 Mini PCIe 3 Auto Detection (Default) Mini PCIe SW2-4 Mini PCIe 4 Auto Detection (Default) ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 42 Pin Out: Pin No. function Pin No. function Reserved +3.3Vaux Reserved Reserved +1.5V Reserved Reserved Reserved +3.3Vaux Reserved +3.3Vaux USB_D+ USB_D- PETp0 PETn0 SMB_DATA SMB_CLK +1.5V PERn0 PERp0 +3.3Vaux PERST# Reserved reserved Reserved Mechanical Key UIM_VPP REFCLK+ UIM_RESET REFCLK- UIM_CLK UIM_DATA CLKREQ# UIM_PWR...
  • Page 43 Panasonic BR2032 190mAh lithium battery. It is recommended that you do not have to get the lithium battery on your own. If the battery needs to be changed, please contact the Vecow RMA service team. 2.4.12 FAN Header Fan power connector supports for additional thermal requirements.
  • Page 44 2.4.13 LPC Port 80 Header ECS-9700/9600 GTX950 provides a LPC Port 80 header for debug card. Pin out: Pin No. Function Pin No. Function SERIRQ LFRAME# +3.3V LAD0 RESET# Ground LAD1 CLOCK LAD2 Ground 2.4.14 LAN IEEE 1588 Header ECS-9700/9600 GTX950 provides a LAN header for IEEE 1588. LAN No.
  • Page 45 Pin out: Pin No. Function Pin No. Function SPD0 SPD1 SPD2 SPD3 Ground Ground ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 46 2.4.15 COM Port Header ECS-9700/9600 GTX950 provides 4 COM port headers for internal COM port cables. CN27 CN28 Pin out: CN27: CN28: Pin No. Description Port Pin No. Description Port Ground_Frame COM3 Ground_Frame COM4 Ground COM3 Ground COM4 COM3 COM4 COM3 COM4 COM3...
  • Page 47: Main Board Jumper & Deep Switch Settings

    To “open” a jumper, please remove the clip. Sometimes a jumper will have three pins, labeled 1, 2, and 3. In this case you would connect either pins 1 and 2, or 2 and 3. ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 48 You may configure your card to match the needs of your application by DIP switch as shown below (the deep switch on and off) 1 : OFF 1 : ON 1 : ON 2 : OFF 2 : OFF 2 : ON 2.5.2 USB Power Jumper Jumper Setting...
  • Page 49 Pin Header Pin No. Description +5V (1A max.) COM3 +12V (0.5A max.) RI (Default) Pin Header Pin No. Description +5V (1A max.) COM4 +12V (0.5A max.) RI (Default) ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 50 2.5.4 COM Port RS-422/RS-485 Receiver Terminator COM RS-422/485 COM / DIP Switch ON / OFF Receiver Terminator *Enable COM1 / SW3-1 Disable COM RS-422/485 COM / DIP Switch ON / OFF Receiver Terminator *Enable COM2 / SW3-2 Disable COM RS-422/485 COM / DIP Switch ON / OFF Receiver Terminator...
  • Page 51 2.5.6 Clear CMOS/ME Switch SW11 DIP Switch Function Description SW 1-1 Clear CMOS CMOS Clear Setting *Normal DIP Switch Function Description SW 1-2 Clear ME ME Clear Setting *Normal ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 52: Ignition Control

    2.6 Ignition Control ECS-9700/9600 GTX950 series provides ignition power control feature for in- vehicle applications. The built-in MCU monitors the ignition signal and turns on/ off the system according to pre-defined on/off delay periods. 2.6.1 Adjust Ignition Control Modes ECS-9700/9600 GTX950 series provides 16 modes of different power on/ off delay periods adjustable via SW5 switch.
  • Page 53 5 seconds 1 hour 10 seconds 2 hours 10 seconds 4 hours 10 seconds 6 hours 10 seconds 8 hours 10 seconds 12 hours 10 seconds 24 hours ©Vecow ECS-9700/ 9600 GTX950 User Manual GETTING TO KNOW YOUR ECS-9700/ 9600 GTX950...
  • Page 54 2.6.2 Ignition Control Wiring To activate ignition control, you need to provide IGN signal via the 3-pin pluggable terminal block located in the back panel. Please find below the general wiring configuration. Pin No. Definition Ignition (IGN) External Power S/W + External Power S/W + For testing purpose, you can refer to the picture above to simulate ignition signal input controlled by a latching switch.
  • Page 55: Chapter 3 System Setup

    3.1 How to Open Your ECS-9700/9600 GTX950 Step 1 Remove hole plugs. Step 2 Remove two F#6-32 screws (circled in red) and two F-M3 screws (circled in yellow) on the bottom side. ©Vecow ECS-9700/ 9600 GTX950 User Manual HARDWARE INSTALLATION...
  • Page 56 Step 3 Finish Step1 and 2. Step 4 Remove one KHS#6-32x6 screws. HARDWARE INSTALLATION...
  • Page 57 Step 5 Open the module. Step 6 Finish. ©Vecow ECS-9700/ 9600 GTX950 User Manual HARDWARE INSTALLATION...
  • Page 58: Installing Ddr4 So-Dimm Modules

    3.2 Installing DDR4 SO-DIMM Modules Step 1 DDR4 RAM module into SO-DIMM slot. Step 2 Make sure the RAM module is locked by the memory slot. HARDWARE INSTALLATION...
  • Page 59: Installing Mini Pcie Card

    3.3 Installing Mini PCIe Card Step 1 Install Mini PCIe card into the Mini PCIe socket. Step 2 Fasten one M2.5 screw. ©Vecow ECS-9700/ 9600 GTX950 User Manual HARDWARE INSTALLATION...
  • Page 60: Installing Cfast Card

    3.4 Installing CFast Card Step 1 Remove 2 pcs F-M3x4 screws on CFast & SIM Card. Step 2 Before Inserting CFast & SIM Card, make sure ECS-9700/9600 GTX950 power is not plugged. Step 3 Insert CFast card and push to lock. Step 4 Insert CFast card and push to lock.
  • Page 61: Installing Sim Card

    Step 2 Before Inserting CFast & SIM Card, make sure ECS-9700/9600 GTX950 power is not plugged. Step 3 Insert CFast card and push to lock. Step 4 Insert SIM card and push to lock. ©Vecow ECS-9700/ 9600 GTX950 User Manual HARDWARE INSTALLATION...
  • Page 62: Installing Ssd/ Hdd

    3.6 Installing SSD/ HDD Step 1 Trigger and open SSD/HDD tray. Step 2 Insert 2.5” SSD/HDD in the tray and fasten two F-M3x4 screws. HARDWARE INSTALLATION...
  • Page 63 Step 3 Finish. Step 4 Installing SSD/HDD. ©Vecow ECS-9700/ 9600 GTX950 User Manual HARDWARE INSTALLATION...
  • Page 64: Mounting Your Ecs-9700/9600 Gtx950

    3.7 Mounting Your ECS-9700/9600 GTX950 3.7.1 Wall Mount Bracket Step 1 Ensure the screw holes on the right and left side of the upper case match the ones on ECS-9700/9600 GTX950 wall mount bracket. HARDWARE INSTALLATION...
  • Page 65 Step 2 Fasten 4pcs KHS#6-32 screws then finish. ©Vecow ECS-9700/ 9600 GTX950 User Manual HARDWARE INSTALLATION...
  • Page 66 3.7.2 VESA Mount Step 1 ECS-9700/9600 GTX950 and VESA Mount. Step 2 Take ECS-9700/9600 GTX950 and VESA Mount with fasten 4pcs KHS#6-32 screws. HARDWARE INSTALLATION...
  • Page 67 Step 3 Fasten four KHS#6-32 screws and then finish. Step 4 Finish. Step 5 VESA size have 75x75mm(red) and 100x100mm(yellow). ©Vecow ECS-9700/ 9600 GTX950 User Manual HARDWARE INSTALLATION...
  • Page 68 3.7.3 Din Rail Kit Step 1 ECS-9700/9600 GTX950 and Din Rail Kit. Step 2 Take ECS-9700/9600 GTX950 and Din Rail Kit and fasten four KHS#6-32 screws in the four marked corners. HARDWARE INSTALLATION...
  • Page 69 Step 3 Fasten four KHS#6-32 screws and then finish. Step 4 Finish. Step 5 ECS-9700/9600 GTX950 With Din Rail. ©Vecow ECS-9700/ 9600 GTX950 User Manual HARDWARE INSTALLATION...
  • Page 70 BIOS SETUP 4.1 Entering BIOS SETUP Figure 4-1: Entering Setup Screen BIOS provides an interface for users to check and change system configuration. The BIOS setup program is accessed by pressing the <Del> key when POST display output is shown. BIOS AND DRIVER SETTING...
  • Page 71 Set the time. Use <Tab> to switch between time elements. 4.3 Advanced Figure 4 3: BIOS Advanced Menu Select advanced tab to enter advanced BIOS setup options, such as CPU configuration, SATA configuration, and USB configuration. ©Vecow ECS-9700/ 9600 GTX950 User Manual BIOS AND DRIVER SETTING...
  • Page 72 4.3.1 Trusted Computing Figure 4 3-1: Trusted Computing Control the TPM device status and display related information if TPM chip is present. 4.3.2 ACPI Settings Figure 4 3-2: ACPI Settings Enable Hibernation Enables or disables system's ability to hibernate (OS/S4 sleep state). This option may not be effective with some OS.
  • Page 73 Disabling this option will cause ME not to unconfigure on RTC clear. ME State Set ME to Soft temporarily disabled. 4.3.5 SMART Settings Figure 4 3-5: SMART Settings SMART Self Test Run SMART self test on all HDDs during POST. ©Vecow ECS-9700/ 9600 GTX950 User Manual BIOS AND DRIVER SETTING...
  • Page 74 4.3.6 IT8786 Super IO Configuration Figure 4-3-6-1: Super IO Settings Figure 4-3-6-2: Serial Port Settings Serial Port 1 to port 4 Configuration Options for Serial Port 1 to Serial Port 4. Entering the corresponding Port option then end user can change the settings such as I/O resource and UART mode.
  • Page 75 Console Redirection Settings These settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. ©Vecow ECS-9700/ 9600 GTX950 User Manual BIOS AND DRIVER SETTING...
  • Page 76 4.3.9 CPU Configuration Figure 4 3-9: CPU Function Settings Hyper-threading Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and disabled for other OS (OS not optimized for Hyper-Threading Technology). When disabled only one thread per core is enabled. Active Processor Cores Number of cores to enable in each processor package.
  • Page 77 Enables or disables Intel (R) TXT (LT) support. 4.3.10 Intel TXT Information Figure 4 3-10: Intel TXT Information Display Intel TXT information. 4.3.11 SATA Configuration Figure 4 3-11: SATA Devices Settings ©Vecow ECS-9700/ 9600 GTX950 User Manual BIOS AND DRIVER SETTING...
  • Page 78 SATA Controller(s) Enable or disable SATA Device. SATA Mode Selection Determines how SATA controller(s) operate. Software Feature Mask Configuration RAID OROM/RST driver will refer to the SWFM configuration to enable or disable the storage features. Aggressive LPM Support Enable PCH to aggressively enter link power state. SATA Controller Speed Indicates the maximum speed the SATA controller can support.
  • Page 79 Controls the execution of UEFI and Legacy Storage OpROM. Video Allows more than two frequency ranges to be supported. Other PCI devices Determines OpROM execution policy for devices other than network, storage, or video. ©Vecow ECS-9700/ 9600 GTX950 User Manual BIOS AND DRIVER SETTING...
  • Page 80 4.3.14 USB Configuration Figure 4 3-14: USB Settings Legacy USB Support Enables Legacy USB support. AUTO option disables Legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. XHCI Hand-off This is a workaround for OS-es without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.
  • Page 81 VT-d capability. GMM Device (B0:D8:F0) Enable/disable SA GMM device. Above 4GB MMIO BIOS assignment Enable/disable above 4GB MemoryMappedIO BIOS assignment. This is disabled automatically when aperture size is set to 2048MB. ©Vecow ECS-9700/ 9600 GTX950 User Manual BIOS AND DRIVER SETTING...
  • Page 82 4.4.2 Graphics Configuration of System Agent (SA) Figure 4-4-2: Graphics Settings Graphics Turbo IMON Current Graphics turbo IMON current values supported (14-31). Skip Scaning of External Gfx Card If Enable, it will not scan for External Gfx Card on PEG and PCH PCIE Ports. Primary Display Select which of IGFX/PEG/PCI Graphics device should be Primary Display Or select SG for Switchable Gfx.
  • Page 83 Figure 4-4-3: PEG Port Configuration PEG port options for PCIe device. 4.4.4 Memory Information of System Agent (SA) Figure 4-4-4: Memory Information Displays memory information. 4.4.5 PCH-IO Configuration Figure 4-4-5: PCH-IO Settings ©Vecow ECS-9700/ 9600 GTX950 User Manual BIOS AND DRIVER SETTING...
  • Page 84 PCH LAN Controller Enable or disable onboard NIC. Wake on LAN Enable or disable integrated LAN to wake the system. (The wake On LAN cannot be disabled if ME is on at Sx state.) Serial IRQ Mode Configure serial IRQ mode. State After G3 Specify what state to go to when power is re-applied after a power failure (G3 state).
  • Page 85 4.4.8 SB Porting Configuration of PCH-IO Figure 4-4-8: RAID ROM Settings SATA RAID ROM Legacy ROM: Legacy option ROM UEFI Driver: UEFI Raid Driver Both: Run the Legacy Option ROM and UEFI driver. ©Vecow ECS-9700/ 9600 GTX950 User Manual BIOS AND DRIVER SETTING...
  • Page 86 4.5 Security Figure 4-5: BIOS Security Menu Administrator Password Set administrator password. User Password Set user password. 4.5.1 HDD Security Configuration Figure 4-5-1: HDD Security Settings Set User Password Set HDD user password. *** Advisable to power cycle system after setting hard disk passwords *** Discard or save changes option in setup does not have any impact on HDD when password is set or removed.
  • Page 87 Sets the system boot order. New Boot Option Policy Controls the placement of newly detected UEFI boot options. Hard Drive BBS Priorities Set the order of the Legacy devices in this group. ©Vecow ECS-9700/ 9600 GTX950 User Manual BIOS AND DRIVER SETTING...
  • Page 88 4.7 Save & Exit Figure 4-7: Bios Save and Exit Menu Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes.
  • Page 89 40 ~ 47 0xA03 ----------- 50 ~ 52, 56, 57 CN16-GPIO 0xA04 53, 54 ----------- 60 ~ 63, 66, 67 ----------- 0xA05 64, 65 CN16-GPIO 70 ~ 77 0xA06 80 ~ 87 0xA07 Appendix A ©Vecow ECS-9700/ 9600 GTX950 User Manual...
  • Page 90 A.2 Function Description The ECS-9700 GTX950 offers two 16-bit DIO (8-DI/ 8-DO) 20-pin terminal block connector. Each bit of DI and DO equipped with a photo-coupler for isolated protection. All IO pins are fixed by Hardware design and cannot change in/out direction in runtime process.
  • Page 91 DO reference circuit: Sink Mode Device DIO Connector (NPN, Default) 6-48V DC DIO_VDC (Pin 20) DO (Pin11-18) DIO_GND (Pin10,19) Source Mode Device DIO Connector (PNP) 6-48V DC DIO_VDC (Pin 20) DO (Pin11-18) DIO_GND (Pin10,19) Appendix A ©Vecow ECS-9700/ 9600 GTX950 User Manual...
  • Page 92 A.4 Software Package Contain There are three folders with the following inside: ● Driver folder includes x32 & x64 versions ● Runtime folder includes DLL and header file for software developer or system integration ● Sample folder includes sample program A.5 Driver Install In Driver folder, you can find the files below inside.
  • Page 93 Please press any key to restart. On Device Manager, “VECOW Embedded IO Access” will be added. Appendix A ©Vecow ECS-9700/ 9600 GTX950 User Manual...
  • Page 94 A.6 DIO Demo Tool Execute DIO demo tool (ECS9K7.exe). Operation on DIO demo tool utility. Operation on DIO / WDT / PoE Demo tool utility. Click “Read” Button to get value; Input any number in Write and Write Mask textbox, and click “Write” Button to set value. On DIO Panel, Check the DO circuit for “NPN”...
  • Page 95 Return: if success return 1; else return 0. int Get_DI2(unsigned char *DI); Description: Get DI Data for DIO2. Return: if success return 1; else return 0. int Set_DO2(unsigned char DO); Description: Set DO Data for DIO2. Appendix B ©Vecow ECS-9700/ 9600 GTX950 User Manual...
  • Page 96 Return: if success return 1; else return 0. int Set_WDT(unsigned long time); Description: Set WDT Time for WDT. Return: if success return 1; else return 0. int Get_POE(unsigned short *POEI, unsigned short *Func); Description: Get POE Data. Return: if success return 1; else return 0. Mask [bit]=0 for disable;...
  • Page 97 C.3 Install All Device Drivers of ECS-9700/9600 GTX950 System The instructions are as follows: 1. Install Chipset driver 2. Install Network driver 3. Install ME driver (if available) 4. Install Audio driver 5. Install VGA driver Appendix C ©Vecow ECS-9700/ 9600 GTX950 User Manual...
  • Page 98 C.4 Install “Intel Rapid Storage Technology” Software You can get the software on ECS-9700/9600 GTX950 driver CD. Also, you can find latest information and software directly from Intel website. http://www.intel.com/p/en_US/support/highlights/chpsts/imsm The RAID environment has been done if you completed the steps above. C.5 Insert SATA HDD for RAID 1 Please notice, you can use six SATA ports for SATA HDD, except for the CFast port and mSATA slot.
  • Page 99 Then add “Logical Device” for Windows access. C.8 If One SATA HDD on RAID Volume is Out-of-use After RAID 1 volume created, you can see the figure of SATA device allocation. HDD CAUTION Sign Appendix C ©Vecow ECS-9700/ 9600 GTX950 User Manual...
  • Page 100 C.9 Recovery and Auto Re-build When Using the SAME RAID HDD C.10 Recovery and Auto Re-build When Using DIFFERENT RAID HDD There is a warning will pop-up to ask you if the disk is not a member of original RAID volume. If you press “Rebuild”, it will replace the broken SATA HDD to the last one SATA HDD of RAID volume.
  • Page 101 CFAST Transcend Cfast CFX600 32GB SATA 0 Innodisk SATA 3MG2-P 256GB LAN 1 (i219) 1.0 Gbps LAN 2 (i210) 1.0 Gbps Graphics Output Power Plan Balance(Windows7 Power plan) Power Source Chroma 62006P-100-25 Appendix D ©Vecow ECS-9700/ 9600 GTX950 User Manual...
  • Page 102 D.1 Intel® Core™ i7-6820EQ (8M Cache, 2.80 GHz) Power on and boot to Win 7 64-bit Idle Status : Standby Mode Sleep Mode CPU usage less 3% Power Input Current Consumption Current Consumption Current Consumption Core™ i7- 0.353A 03.53W 0.463A 04.63W 3.417A 34.17W...
  • Page 103 Memory Test version: 5.1 BurnInTest V8.1 E.2 Test Item Remove Channel Memory Test Burn In Flash BIOS Battery PASS PASS PASS PASS *1(Socket 1) PASS PASS PASS *1(Socket 2) PASS PASS PASS Appendix E ©Vecow ECS-9700/ 9600 GTX950 User Manual...
  • Page 104 E.3 NON-ECC Test Temp. Brand Info Channel NOTE & S\N (Celsius) TS9CBSESE0000 25ºC 8G 2Rx8 Transcend DDR4 2400 *1(Socket 1) C96645-0001 25ºC *1(Socket 2) C96645-0002 25ºC TS0CASGSB0000 25ºC 16G 2Rx8 Transcend DDR4 2133 *1(Socket 1) D20478-0004 25ºC *1(Socket 2) D20478-0004 25ºC D4SS12081SH21A-A 25ºC...
  • Page 105 *1(Socket 2) M0S11601080100002 25ºC MSD0-8GSSQCRG 25ºC 8GB DDR4 innodisk *1(Socket 1) M0S11601080090001 25ºC 2133 ECC *1(Socket 2) M0S11601080090002 25ºC M4D0-AGS1QCFG 25ºC 16GB innodisk DDR4 2133 *1(Socket 1) M0S11601080110001 25ºC *1(Socket 2) M0S11601080110002 25ºC Appendix E ©Vecow ECS-9700/ 9600 GTX950 User Manual...
  • Page 106 E.5 Supported Storage Device List Type Brand Model Capacity Intel Intel-310 SSDMAEMC080G2 80GB mSATA 3ME3 DEMSR- 64GB 64GD09BW2DC mSATA mSATA 3ME3 DEMSR- innodisk 128GB A28D09BW2DC mSATA 3ME3 DEMSR- 256GB B56D08BWBQC SSD420 TS128GSSD420I 128GB Transcend SSD420 TS256GSSD420I 256GB SSD370 TS64GSSD370 64GB SSD 540s SSDSC2KW180H6 180GB SATA SSD...
  • Page 107 PASS PASS PASS PASS Testing Equipment ® CPU : Intel Core™ i7-6820EQ IMB : ECS-9700 Memory : Transcend 16G DDR4 ** If more help is needed, please contact Vecow technical support ** Appendix F ©Vecow ECS-9700/ 9600 GTX950 User Manual...
