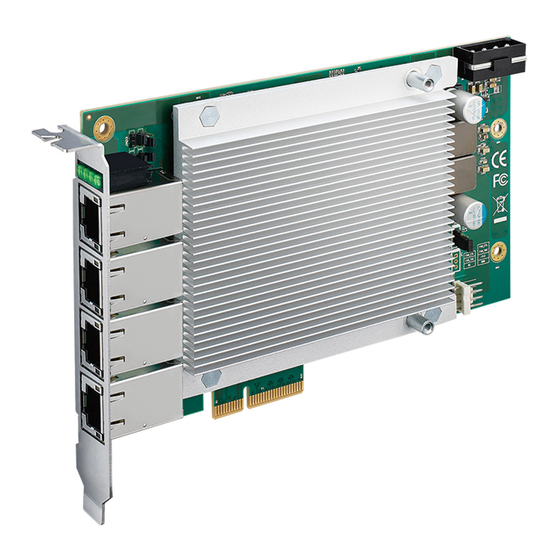

Vecow PE-5000 Series User Manual

4/2-channel intel xl710/x550-at2 10g poe+ lan, ieee 802.3at compliant pci express x8/x4 expansion card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PE-5000
4/2-channel Intel
IEEE 802.3at Compliant PCI Express x8/x4 Expansion Card
®
XL710/X550-AT2 10G PoE
USER
USER
Manual
Manual
+
LAN,
1.0.0 Edition 20200215

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PE-5000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vecow PE-5000 Series

Summary of Contents for Vecow PE-5000 Series

  • Page 1 USER USER PE-5000 Manual Manual 4/2-channel Intel ® XL710/X550-AT2 10G PoE LAN, IEEE 802.3at Compliant PCI Express x8/x4 Expansion Card 1.0.0 Edition 20200215...
  • Page 2 Record of Revision Version Date Page Description Remark 0.10 2020/02/13 Preliminary Release 1.00 2020/02/15 Official Release ©Vecow PE-5000 User Manual...
  • Page 3 This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specifications are subject to change without prior notice. Vecow Co., Ltd. is under no legal commitment to the details of this document. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of this document, the products, or any third party infringements, which may result from such use.
  • Page 4 Order Information Part Number Description ® PE-5004 Intel XL710 8-CH PCI Express Card with 10GigE PoE ® PE-5002 Intel X550-AT2 4-CH PCI Express Card with 10GigE PoE ©Vecow PE-5000 User Manual...

  • Page 5: Table Of Contents

    Table of Contents CHAPTER 1 GENERAL INTRODUCTION 1.1 Overview 1.2 Features 1.3 Product Specification 1.3.1 Specifications of Vecow PE-5004 1.3.2 Specifications of Vecow PE-5002 1.4 Mechanical Dimension 1.4.1 PE-5004 1.4.2 PE-5004 With FAN 1.4.3 PE-5002 1.4.4 PE-5002 With FAN CHAPTER 2 GETTING TO KNOW YOUR PE-5000 2.1 Packing List...

  • Page 6: Chapter 1 General Introduction

    Ethernet and performance enhanced LAN features, IEEE 802.3az Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC) Power Management functions. Just simply by RJ45 or optional rugged M12 connections, Vecow PE-5000 is enabled to provide up to 10Gbps data rate each port with teaming functions, link aggregation (LAG), up to 15.5K Jumbo Frame, IEEE 1588...

  • Page 7: Features

    • Up to 15.5KB Jumbo Frame, Link Aggregation (PE-5002) • Supports IEEE 802.3az Energy Efficient Ethernet (EEE) and DMA Coalescing Power Management Features • -25°C to 55°C Operating Temperature (PE-5004) • -25°C to 60°C Operating Temperature (PE-5002) ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GENERAL INTRODUCTION...

  • Page 8: Product Specification

    1.3 Product Specification 1.3.1 Specifications of Vecow PE-5004 Ethernet Interface PCI Express x8 ® Controller 1 Intel Ethernet Controller XL710 ® 1 Intel X557 Data Rate 10Gbps/1Gbps/100Mbps Jumbo Frame Up to 9728 byte Link Aggregation (LAG) Present Connector 8-pin RJ45 PoE Standard IEEE 802.3at compliant...

  • Page 9: Specifications Of Vecow Pe-5002

    1.3.2 Specifications of Vecow PE-5002 Ethernet Interface PCI Express x4 ® Controller 1 Intel Ethernet Controller X550-AT2 Data Rate 10Gbps/*5Gbps/*2.5Gbps/1Gbps/100Mbps (*Linux only) Jumbo Frame Up to 5.5KB supported Link Aggregation (LAG) Present • 2 RJ45 PoE Port Connector • 2 LED for PoE On/Off Mode •...

  • Page 10: Mechanical Dimension

    1.4 Mechanical Dimension 1.4.1 PE-5004 18.4 (0.73) 168.0 (6.61) Unit : mm (inch) 1.4.2 PE-5004 With FAN 18.4 (0.73) 231.7 (9.12) Unit : mm (inch) ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GENERAL INTRODUCTION...

  • Page 11: Pe-5002

    1.4.3 PE-5002 21.6 (0.85) 168.0 (6.61) Unit : mm (inch) 1.4.4 PE-5002 With FAN 21.6 (0.85) 231.7 (9.12) Unit : mm (inch) ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GENERAL INTRODUCTION...

  • Page 12: Chapter 2 Getting To Know Your Pe-5000

    PE-5000, Intel XL710 4-port/X550 2-port 10GigE PoE PCI Express Expansion Card (It is based on the configuration you ordered.) Accessory box, which contains Vecow Drivers & Utilities DVD ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GETTING TO KNOW YOUR PE-5000...

  • Page 13: Pe-5004 I/O And Indication

    10/100 Mbps 1000 Mbps E_TX+ MDI0_P PoE+ E_TX- MDI0_N PoE+ E_RX+ MDI1_P PoE- ---- MDI2_P ---- ----- MDI2_N ---- E_RX- MDI1_N PoE- ----- MDI3_P ---- ------ MDI3_N ---- ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GETTING TO KNOW YOUR PE-5000...
  • Page 14 (+5V/Red, GND/Black, GND/Black, +12V/Yellow) inside the host computer. Please always confirm the polarity before you plug into the onboard 4-pin power plug. CN5 : Pin No. Definition Pin No. Definition +12V ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GETTING TO KNOW YOUR PE-5000...
  • Page 15 JAD14 address setting as below (1-2=H, 2-3=L) : JAD4 JAD3 JAD2 JAD1 Address 0x40 0x42 (Default) 0x44 0x48 0x4A 0x4C 0x4E 0x50 0x52 0x54 0x56 0x58 0x5A 0x5C 0x5E ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GETTING TO KNOW YOUR PE-5000...
  • Page 16 Fan power connector supports for additional thermal requirements. The pinassignments of FAN1 is listed in the following diagram : Pin input : Pin No. Definition Pin No. Definition +12V (1.5A max) ------ ------ ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GETTING TO KNOW YOUR PE-5000...

  • Page 17: Pe-5002 I/O And Indication

    The pin-outs of LAN 1 and LAN 2 are listed as follows : Pin No. 100Mbps 1/10Gbps E_TX+ MDI0_P PoE+ E_TX- MDI0_N PoE+ E_RX+ MDI1_P PoE- ---- MDI2_P ----- MDI2_N E_RX- MDI1_N PoE- ----- MDI3_P ------ MDI3_N ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GETTING TO KNOW YOUR PE-5000...
  • Page 18 (+5V/Red, GND/Black, GND/Black, +12V/Yellow) inside the host computer. Please always confirm the polarity before you plug into the onboard 4-pin power plug. CN1 : Pin No. Definition Pin No. Definition +12V ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GETTING TO KNOW YOUR PE-5000...
  • Page 19 JAD14 Address setting as below (1-2=H, 2-3=L): JAD4 JAD3 JAD2 JAD1 Address 0x40 0x42 (Default) 0x44 0x48 0x4A 0x4C 0x4E 0x50 0x52 0x54 0x56 0x58 0x5A 0x5C 0x5E ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GETTING TO KNOW YOUR PE-5000...
  • Page 20 Fan power connector supports for additional thermal requirements. The pin assignments of FAN1 is listed in the following diagram : Pin No. Definition Pin No. Definition +12V (1.5A max) ------ ------ ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GETTING TO KNOW YOUR PE-5000...

  • Page 21: Chapter 3 Getting Start

    GETTING START 3.1 Installing PE-5004/PE-5002 Step 1. Insert PE-5000 golden finger and PCI bracket into PCIe socket carefully. Step 2. Make sure golden finger and PCI bracket are inserted smoothly. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GETTING START...
  • Page 22 Step 3. Make sure the bracket aligns screw hole. Step 4. Fasten the M3 or #6-32 screw. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual GETTING START...

  • Page 23: Chapter 4 Driver Installation And Setting

    4.1.1 PE-5002 Install Driver This section describes : How to install drivers for PE-5002 PoE Card. System OS : Windows 10-64bit Step 1. Execute "Intel PROWin64.exe" and then go "Next" step. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 24 Step 2. Select "Modify" and then go to "Next" step. Step 3. Select "Next" step. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 25 Step 4. Click the "Install" icon to begin the installation. Step 5. Install wizard completed. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 26 Step 6. Select "Finish" step. Once you need this network driver, you could remove this program on Control panel directly. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 27 This section describes : How to install drivers for PE-5004 PoE Card. System OS : Windows 10-64bit Step 1. Install Intel_24_4 Driver and then go Open the "Right-click → Device Manager → Ethernet Controller". Step 2. "Right-click →Update driver". ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 28 Step 3. Select the "Browse my computer for driver software". Step 4. Browse "24_ 4 Driver→ Next". ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 29 Step 5. Detect in one "Intel Ethernet Converged Network Adapter X710-T". Step 6. Right-click → Restart. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 30 Step 7. Detect in "four Intel Ethernet Converged Network Adapter X710-T#xx". ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...

  • Page 31: Jumbo Frame

    → Device Manager → Network adapters". Step 2. Select anyone "Intel ® Network Connection X550 #xx", right Click and select "Properties", a property dialog appears and Click on the Advanced page. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 32 Step 3. Select the "Jumbo Packet", settings, and select the expected jumbo frame size. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 33 → Device Manager → Network adapters". Step 2. Select anyone "Intel Ethernet Converged Network Adapter X710-T #xx", right Click and select "Properties", a property dialog appears and Click on the Advanced page. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 34 Step 3. Select the "Jumbo Packet", settings, and select the expected jumbo frame size. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...

  • Page 35: Link Aggregation

    4.3 Link Aggregation 4.3.1 PE-5002 Jumbo Frame Step 1. Here shows another enhance network function "Teaming". ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 36 Step 2. You could multi-select network device to get a high performance net. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 37 4.3.2 PE-5004 Jumbo Frame Step 1. Here shows another enhance network function "Teaming". ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 38 ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...
  • Page 39 ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual DRIVER INSTALLATION AND SETTING...

  • Page 40: Appendix A : Poe Guide

    APPENDIX A : PoE Guide A.1 Function Description The PE-5000 series offers a 2-port/4-port PoE. LAN 4 LAN 3 LAN 2 LAN 1 PoE Power LED LAN 1 LAN 2 LAN 3 LAN 4 Pin No. Definition Pin No. Definition...
  • Page 41 PE-5004 controls PD69104B PoE Power ON/OFF via SMBUS. Jumper JAD1~ JAD14 address setting as below (1-2=H, 2-3=L): JAD4 JAD3 JAD2 JAD1 Address 0x40 0x42 (Default) 0x44 0x48 0x4A 0x4C 0x4E 0x50 0x52 0x54 0x56 0x58 0x5A 0x5C 0x5E ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual Appendix A...
  • Page 42 Visual Studio 2008. A.3 Sample Sample folder include x32 and x64 versions, as shown below : Sample PE5K.exe, as shown below : ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual Appendix A...
  • Page 43 User setting, POE port writable of POE configuration. Use for Write button activate. POE port mode check button(port 4 ~ port 1) : User setting, POE port mode of POE configuration. Use for Write button activate. ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual Appendix A...

  • Page 44: Appendix B : Software Functions

    Mask ([3:0]): DC Enable/Disable, pin setting by hexadecimal bitmask 1: Enable; 0: Disable Return : TRUE (1): Success; FALSE (0): Fail (Initial error, or out of range error, or hardware problem) ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual Appendix B...
  • Page 45 POE ([3:0]): POE state, pin setting by hexadecimal bitmask 1: On; 0: Off Return : TRUE (1): Success; FALSE (0): Fail (Initial error, or out of range error, or hardware problem) ©Vecow PE-5000 User Manual ©Vecow PE-5000 User Manual Appendix B...
  • Page 46 No part of this publication may be reproduced in any form or by any means, electric, photocopying, or recording, without prior authorization from the publisher. The rights of all the brand names, product names, and trademarks belong to their respective owners. © Vecow Co., Ltd. 2020. All rights reserved.
