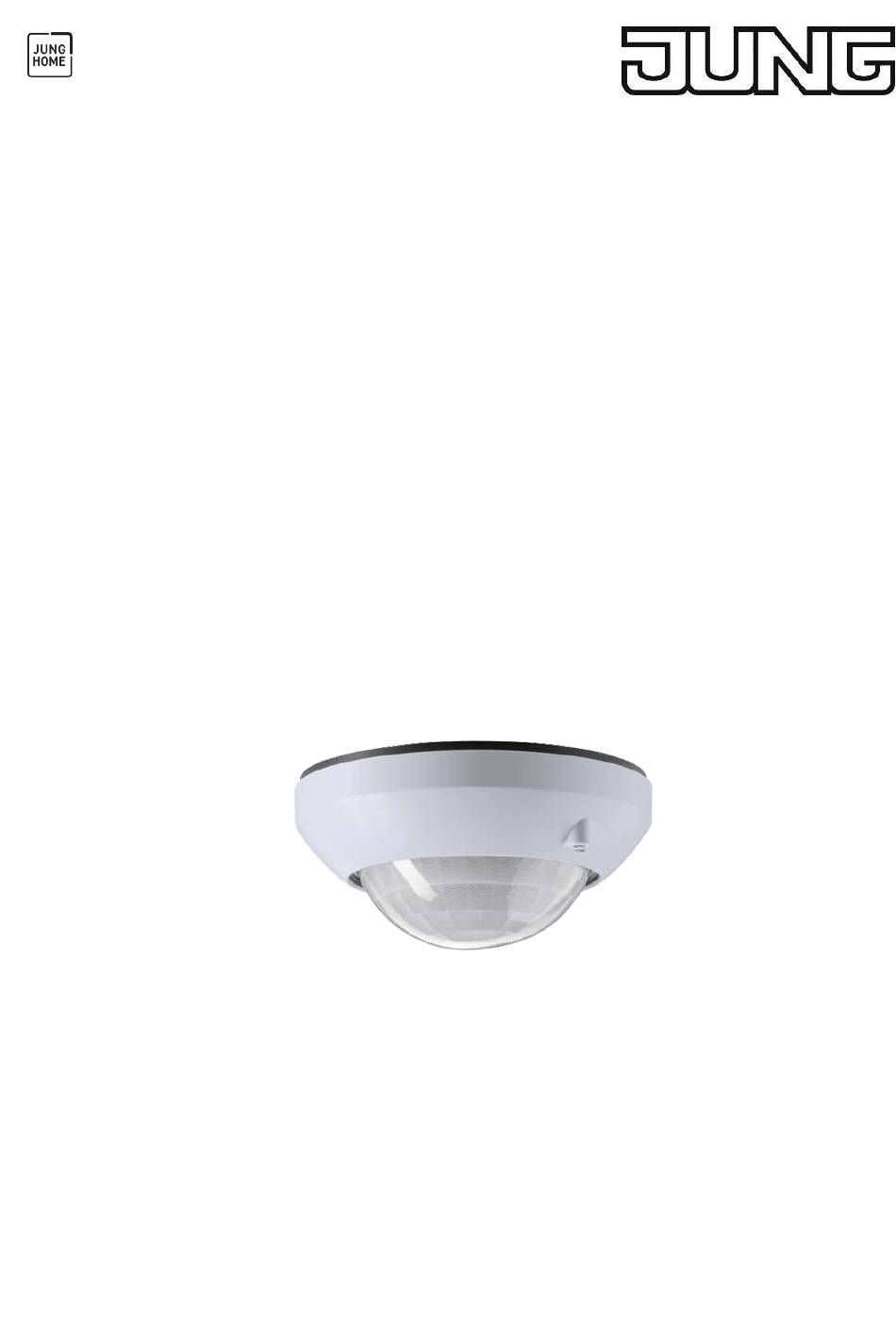

- Page 1 Operating instructions JUNG HOME presence detector Art. no. BT17361.. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 27.02.2023 82405503 J0082405503 www.jung.de...
-
Page 2: Table Of Contents
JUNG HOME presence detector Table of Contents Safety instructions ...................... 3 Device components...................... 4 Intended use ........................ 4 Product characteristics ...................... 5 Functional description ....................... 6 Wireless operation ...................... 6 Operation via extensions.................... 7 Mounting and electrical connection ................... 7 Commissioning via app .................... 12 10 Resetting the device to the factory setting .............. 14 11 Technical data ......................... 15... -
Page 3: Safety Instructions
The device is not suitable for use as a burglar alarm or other alarm. Read the instructions in full, observe them and keep them for future reference. You can find more information on JUNG HOME at www.jung.de/JUNGHOME 82405503 3 / 29 27.02.2023... -
Page 4: Device Components
Intended use – Automatic switching of lighting depending on the heat motion and ambient brightness – Wireless connection to devices from the JUNG HOME system – Operation with system insert for switching or dimming, or 3-wire extension 82405503 4 / 29 27.02.2023... -
Page 5: Product Characteristics
Commissioning and operation using JUNG HOME app on mobile end device (smartphone or tablet) via Bluetooth – Extension of the detection field by the combination of several JUNG HOME motion detectors or via the extension input – Panel for limiting the detection field –... -
Page 6: Functional Description
If the device was not previously added to a Bluetooth Mesh network (project) by means of the JUNG HOME app, it will switch to pairing mode for two minutes when the mains voltage returns and the status LED will flash slowly at a regular interval in blue. -
Page 7: Operation Via Extensions
– If JUNG HOME devices are installed on both sides of a solid wall, they should be positioned as close as possible to each other on the opposite sides of the wall. - Page 8 JUNG HOME presence detector – Keep a distance of at least 1 m from devices that emit high-frequency signals (e. g. microwave, motors) or use wireless signals at 2.4 GHz (e.g. WLAN router, baby monitor, IP cameras, wireless loudspeakers etc.) Detection field and range The device has a detection field of 360°.
- Page 9 To minimise the influence of heat sources, reduce the sensitivity or limit the detection field by switching off individual sensors (JUNG HOME app) or using the push-on cover (7). Aligning cover The device has three independent sensors for motion detection (see figure 3).
- Page 10 JUNG HOME presence detector Image 4: Arrangement of the areas A, B and C ￭ Pay attention to correct alignment when mounting the appliance box and sys- tem insert. ￭ Align the cover so that the brightness sensor (3) is on the side away from the windows.
- Page 11 The detection field can be expanded wirelessly. For this purpose, use the three-wire extension with JUNG HOME presence or motion detectors and link it with the JUNG HOME app to the main unit. Alternatively, connect the three-wire extension with LB management presence or motion detectors to the main unit with the JUNG HOME presence or motion detector via an extension line.
-
Page 12: Commissioning Via App
Commissioning via app Prerequisite: The JUNG HOME device does not yet belong to a Bluetooth Mesh net- work. Otherwise reset the device to the default setting. If a Bluetooth Mesh network (project) does not yet exist, a new project must first be created for the first JUNG HOME device in the JUNG HOME app. - Page 13 If the status LED flashes red very fast, pairing has failed and needs to be re- tried. The JUNG HOME app can then be used to link devices wirelessly and configure the parameters and operation (see list of functions and parameters).
-
Page 14: Resetting The Device To The Factory Setting
If the device has already been added to a project with the JUNG HOME app, it can be deleted from the app with the "delete device" function and simultan- eously reset to the default setting. -
Page 15: Technical Data
The status LED flashes in red more slowly for approx. five seconds. The device has been reset to the default setting. After resetting the device to the default setting, it must be removed from the JUNG HOME app provided it has not already been deleted from the app. Default settings (selection) Function... -
Page 16: List Of Functions And Parameters
List of functions and parameters The JUNG HOME app can be used to configure all functions of the JUNG HOME device and its behaviour in the Bluetooth Mesh project for the respective individual purposes. - Page 17 Default setting: Off independently if movements are detected, which has no influence on the switching status of linked loads, but is used by the JUNG HOME gateway to trigger functions in further smart home system. Detection set- 0, 25, 50, 75, 100%...
- Page 18 If movements are detected, the status LED lights up in red and this is indicated in the JUNG HOME app. The linked lighting switches according to the current config- uration. The function is deactivated auto- matically after approx.
- Page 19 Constant light 10 ... 2,000 lx If "constant light regulation" is activated, regulation the JUNG HOME presence detector sets Default setting: 600 lx brightness** the linked dimming and DALI inserts to this set brightness. ** Available by update in the future: You can find notes on updates and dates at www.jung.de/JUNGHOME...
- Page 20 10:00 pm. Set location** Geographic location The astro timer in the JUNG HOME devices needs the geographic location of the project to calculate the sunrise or sun- set time. The astro timer is calculated once a week for the localised place.
- Page 21 The run-on time is thereby pro- longed by approx. 30 seconds. If a move- ment is detected by a linked JUNG HOME sensor cover or the load switched on again by operating an extension or by...
- Page 22 Presentation Off, On The presentation function is used in com- function bination with a linked JUNG HOME pres- Default setting: Off ence detector. The presentation function can be switched on or off with the app or a linked JUNG HOME push-button.
- Page 23 Default setting: deactiv- JUNG HOME devices. The lock applies ated for an adjustable time or until the dis- abling function is deactivated again.
- Page 24 JUNG HOME sensor cover or the warning is switched on again by operating an ex- tension or by a linked JUNG HOME oper- ating cover, the run-on time will be restar- ted and the light switched back to the switch-on brightness.
- Page 25 Presentation Off, On The presentation function is used in com- function bination with a linked JUNG HOME pres- Default setting: Off ence detector. The presentation function can be switched on or off with the app or a linked JUNG HOME push-button.
- Page 26 JUNG HOME presence detector Parameters Setting options, default Explanation setting Colour temper- 2,000 ... 1,0000 K Defines the adjustable colour temperature ature range range. The minimum and maximum value Default setting: 2,700 ... (min-max) (only depend on the colour temperature range...
-
Page 27: Troubleshooting
Default setting: deactiv- JUNG HOME devices. The lock applies ated for an adjustable time or until the dis- abling function is deactivated again. - Page 28 JUNG HOME presence detector Re-establish the link in the app on the detailed motion detector view. Device switches on without motions Cause: Heat sources in the detection field, device constantly detects movements. Remove the heat sources if possible. Reduce sensitivity with the app.
-
Page 29: Conformity
JUNG HOME presence detector Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type art. no. BT17361.. meets the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
