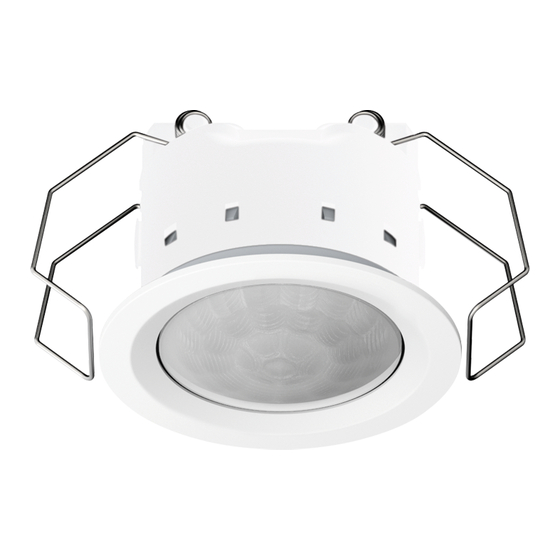

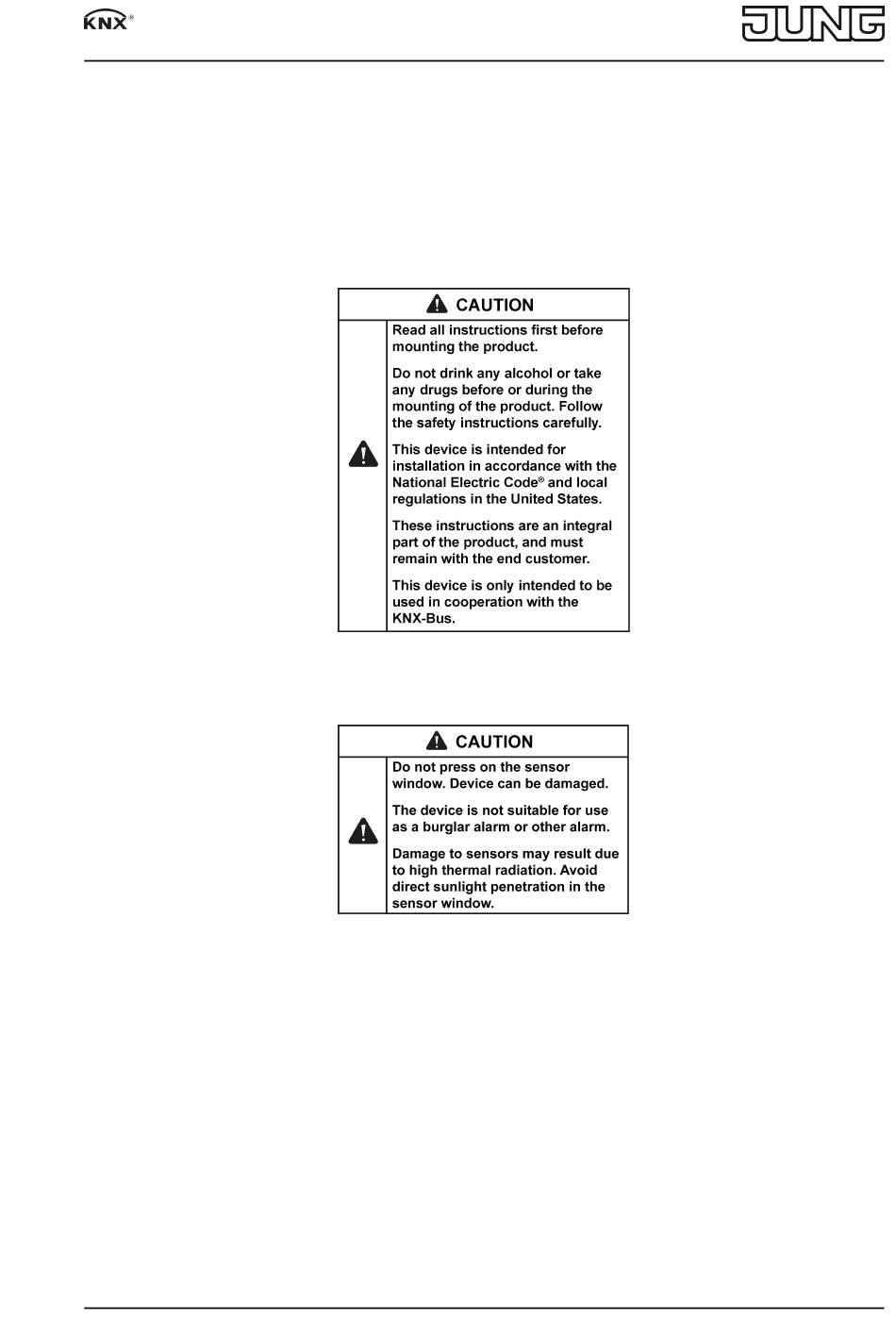

- Page 1 Presence detector mini standard, Presence detector mini universal Presence detector mini standard Art. No. : 3361MWW-01 Presence detector mini universal Art. No. : 3361-1MWW-01 Operating instructions 1 Safety instructions 82589805 1/16 09.11.2017 J0082589805...
-
Page 2: Device Components
Presence detector mini standard, Presence detector mini universal 2 Device components Figure 1: Device components Figure 2: Device components (1) Presence detector (2) Clamping springs (3) Sensor window 82589805 2/16 09.11.2017 J0082589805... -
Page 3: Operating Control
Presence detector mini standard, Presence detector mini universal (4) Programming button, red (5) Design ring (6) Cover (7) Sensitivity switch, blue (8) Bus connection (9) Cable fixation (10) Brightness sensor 3 Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite to proper understanding. - Page 4 Presence detector mini standard, Presence detector mini universal Setting buttons IR remote control Button Function ´ Increase sensitivity ² Reduce sensitivity ³ Reset sensitivity to presetting Ê Function block 1: brightness threshold 1 fc Ë Function block 1: brightness threshold 4.7 fc Ì...
-
Page 5: Information For Electrically Skilled Persons
Presence detector mini standard, Presence detector mini universal Extend runontime: Depending on requirement, press 10 SEK button, 30 SEK button, 2 MIN button, 5 MIN button or 30 MIN button. Other values can be set with the START/STOP buttons. 5 Information for electrically skilled persons 82589805 5/16 09.11.2017... -
Page 6: Mounting And Electrical Connection
Presence detector mini standard, Presence detector mini universal 5.1 Mounting and electrical connection Motion detection Figure 3: Tangential and radial direction of motion The device has a detection area of 360°. The diameter of the detection area depends on the installation height and the direction of motions of persons in the detection area (figure 4). - Page 7 Presence detector mini standard, Presence detector mini universal Figure 4: Detection range depending on the direction of movement Diameter of detection field for direction of movement Installation height 7.20 ft 28.90 ft 21.70 ft 14.40 ft 9.50 ft 8.20 ft 32.80 ft 24.60 ft 16.40 ft...
- Page 8 Presence detector mini standard, Presence detector mini universal Figure 5: Detection field areas A, B and C, installation height 9.80 ft 82589805 8/16 09.11.2017 J0082589805...
- Page 9 Presence detector mini standard, Presence detector mini universal Figure 6: Arrangement of the areas A, B and C Brightness detection The brightness sensor (8) is attached on the side and thus enables an asymmetric measuring surface. In this way, for example, it is possible to include several work places in the measure ment without any laterally entering light distorting the measurement.
- Page 10 Presence detector mini standard, Presence detector mini universal Figure 7 Installation height H 7.20 ft 4.90 ft 7.60 ft 8.20 ft 5.90 ft 8.50 ft 9.80 ft 6.60 ft 9.80 ft 11.50 ft 8.20 ft 11.80 ft 13.10 ft 9.20 ft 13.80 ft 16.40 ft 11.50 ft...
- Page 11 Presence detector mini standard, Presence detector mini universal Mount the device in a wall box and connect it This device may only be installed in applicable listed electrical wall boxes, flushmounted. i Wall boxes must be ordered separately. Wall boxes for solid walls have to be placed flush to the wall plaster. Hollow wall boxes were placed by circular cutter.
- Page 12 Presence detector mini standard, Presence detector mini universal Figure 8 Mount supporting frame (12) on a wall box (11). i Use only cables which are approved for KNX. Connect bus line with device connection terminal. Clamp bus line with cable fixation (9). Snap the device into the supporting frame (12).
- Page 13 Presence detector mini standard, Presence detector mini universal Mount and connect device in a surface-mounted housing Figure 9 Use a surfacemounted housing (13) (see accessories). Provide screw holes of the surfacemounted housing with the supplied seals (14). Seal the cable entry with the supplied rubber grommet. Cut the rubber grommet appropri ately for the bus cable.
-
Page 14: Technical Data
Presence detector mini standard, Presence detector mini universal 5.2 Commissioning Load the address and the application software When mounted, remove the design ring. Switch on the bus voltage. Actuate the red programming button (4). The programming LED in the sensor window lights up. Assign physical address. -
Page 15: Troubleshooting
Presence detector mini standard, Presence detector mini universal Range at installation height 9.8 ft (3 m) Ø approx. 39.4 ft (dia. approx. 12 m) Brightness sensor Measuring range 1 ... 186 fc (10 ... 2000 lx) Accuracy ≤ 7.5 fc (≤ 80 lx) ±... -
Page 16: Warranty
350 Fifth Avenue, Suite 5220 New York, NY 10118 Phone: +1 800.311.6135 Email: sales@jungcontrols.com www.jungcontrols.com For the product warranty, please refer to the attached document. All rights reserved © ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY 82589805 16/16 09.11.2017 J0082589805...
