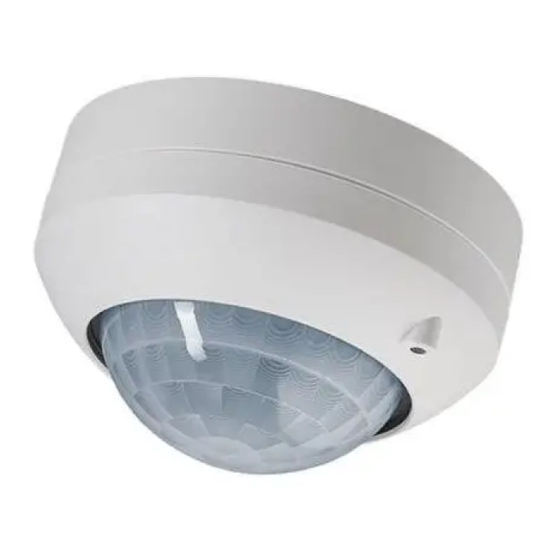

Motion and presence detector
Hide thumbs Also See for DWPMK360WW:

Advertisement

Quick Links

Light management
Motion and presence detector
Motion and presence detector
Art. no.: DWPMK360WW
Motion and presence detector
Art. no.: DWPMK360AL
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
DANGER! Danger of electric shock. Device is not suitable for disconnection from supply
voltage. The load is not electrically isolated from the mains even when the device is switched
off.
Always disconnect before carrying out work on the devise or load. In so doing, take all the cir-
cuit breakers into account, which support dangerous voltages to the device and or load.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end customer.
2
Battery safety instructions
This device or its accessories are supplied with batteries in the form of button cells.
DANGER! Batteries can be swallowed. This can lead directly to death by suffocation. Danger-
ous substances may cause severe internal burns leading to death within 2 hours.
Keep new and used batteries away from children.
Do not use devices if the battery compartment does not close securely and keep away from
children.
If you suspect that a battery has been swallowed or is in any orifice of the body, seek immediate
medical attention.
WARNING! Improper handling of batteries can result in explosion, fire or chemical burn due to
leakage.
Do not heat or throw batteries into fire.
Do not reverse polarity, short-circuit or recharge batteries.
Do not deform or disassemble batteries.
Replace batteries only with an identical or equivalent type.
Remove empty batteries immediately and dispose of in an environmentally friendly manner.
82593223
J0082593223
1 / 19
27.06.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWPMK360WW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jung DWPMK360WW

  • Page 1 Light management Motion and presence detector Motion and presence detector Art. no.: DWPMK360WW Motion and presence detector Art. no.: DWPMK360AL Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
  • Page 2: Device Components

    Light management Motion and presence detector Device components Figure 1 Connection box Sensor top Brightness sensor Sensor window with red and blue display LED Decor ring Push-on cover Figure 2 IR end customer remote control, included in the scope of delivery IR installation engineer remote control (see Accessories) Intended use –...
  • Page 3 Light management Motion and presence detector – Restriction of the detection field by switching off individual sensors or push-on cover – Operation with IR remote control, 2-wire extension or installation button – Teach function for adjustment of the brightness threshold, in combination with IR remote controls –...
  • Page 4: Operation

    Light management Motion and presence detector Function as twilight switch The function is active as soon as all the PIR sensors have been switched off (see Commission- ing). The light is switched according to the brightness. Motions are not evaluated –...
  • Page 5 Light management Motion and presence detector ů In automatic mode: Switch-on for the duration Actuation of between 1 and 4 seconds of the run-on time Ű Continuous on Pressing for less than 0.4 seconds ű Continuous off Pressing for less than 0.4 seconds 2 h on On for 2 hours Pressing for less than 0.4 seconds...
  • Page 6 Light management Motion and presence detector Switch on the light for 2 hours Motions are not evaluated during this time. It is not possible to switch off via a 2-wire extension or installation button. Press 2 h On button of the IR remote control. ■...
  • Page 7: Information For Electrically Skilled Persons

    Light management Motion and presence detector Recalling saved settings During commissioning, the installation engineer can save the settings made (see Saving set- tings). These can be recalled if, for example, changes made later are no longer required. Press the Set 2 button for longer than 10 seconds. ■...
  • Page 8 Light management Motion and presence detector Figure 4: Detection range depending on the direction of movement Diameter of detection field for direction of movement Installation height 1: 2.20 m 14.50 m 11.50 m 8.00 m 6.00 m 2.50 m 16.50 m 13.00 m 10.00 m 7.00 m...
  • Page 9 Light management Motion and presence detector Figure 5: Detection field areas A, B and C, installation height 2.50 m Figure 6: Arrangement of the areas A, B and C ■ Align the connection box (1) in such a way that the areas A, B and C match the structural conditions.
  • Page 10 Light management Motion and presence detector Preparations for installation Figure 7: Mounting Connection box Sensor top Decor ring Fastening pins (10) Screws ■ Pull off decor ring (5) (Figure 7). ■ Loosen screws (10) (Figure 7). Installing the connection box Figure 8: Connection box (11) Fastening holes (12)
  • Page 11 Light management Motion and presence detector Alternatively, the device can also be mounted on a 60 mm appliance box. The screws are not included in the scope of delivery. Connecting the device Figure 9: Connection diagram, single device Figure 10: Connection diagram, parallel circuit for expanding the detection field Max.
  • Page 12 Light management Motion and presence detector In the case of single devices, a 2-wire extension can be used as an alternative to the in- stallation button (14). ■ Screw the sensor top (2) to connection box (1) with screws (10) and mounting pins (9) (Figure 7).
  • Page 13 Light management Motion and presence detector Insert battery Obey the battery safety instructions. ■ Keep contacts of batteries and device free of grease. ■ Insert the supplied battery with correct polarity (see IR remote control imprint) Button assignment of the installation engineer IR remote control Taste Funktion 1 sŮ...
  • Page 14 Light management Motion and presence detector When changing the device function, the settings of the previous device function are saved and reactivated on changing again. Setting the sensitivity The sensitivity can be set individually for each PIR sensor. ■ Press PIR A, PIR B or PIR C button for less than 10 seconds. ■...
  • Page 15 Light management Motion and presence detector Setting individual run-on time The individual run-on time can be set within a range of 10 seconds to 60 minutes. One of the fixed run-on times can be set again at any time. Press the 0-1 h Ů button. ■...
  • Page 16: Disposal Of Batteries

    Light management Motion and presence detector ■ Press the Test 100 h button for longer than 10 seconds. The lamps are switched on for 100 hours. The device is switched back to automatic oper- ation again after the time has elapsed. During the 100 hours, no switching is possible via 2-wire extension, installation button or IR remote control, movement signals are not evaluated.
  • Page 17 Light management Motion and presence detector Dimensions Ø×H 103×66 mm Installation height Detection field Ø approx. 20 m Sensitivity 25 ... 100% Brightness setting approx. 5 ... 2000 lx (and day operation) Run-on time approx. 10 s ... 30 min Short time operation pulse duration approx.
  • Page 18: Troubleshooting

    Light management Motion and presence detector Troubleshooting Device does not switch on Cause 1: The ambient brightness is greater than the set brightness value. Set brightness value. Cause 2: Device does not detect any motions. Increase sensitivity. Switch on all sensors. Cause 3: Off for 2 hours or Continuous off is activated Switch on automatic mode.
  • Page 19: Warranty

    Light management Motion and presence detector 11 Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
