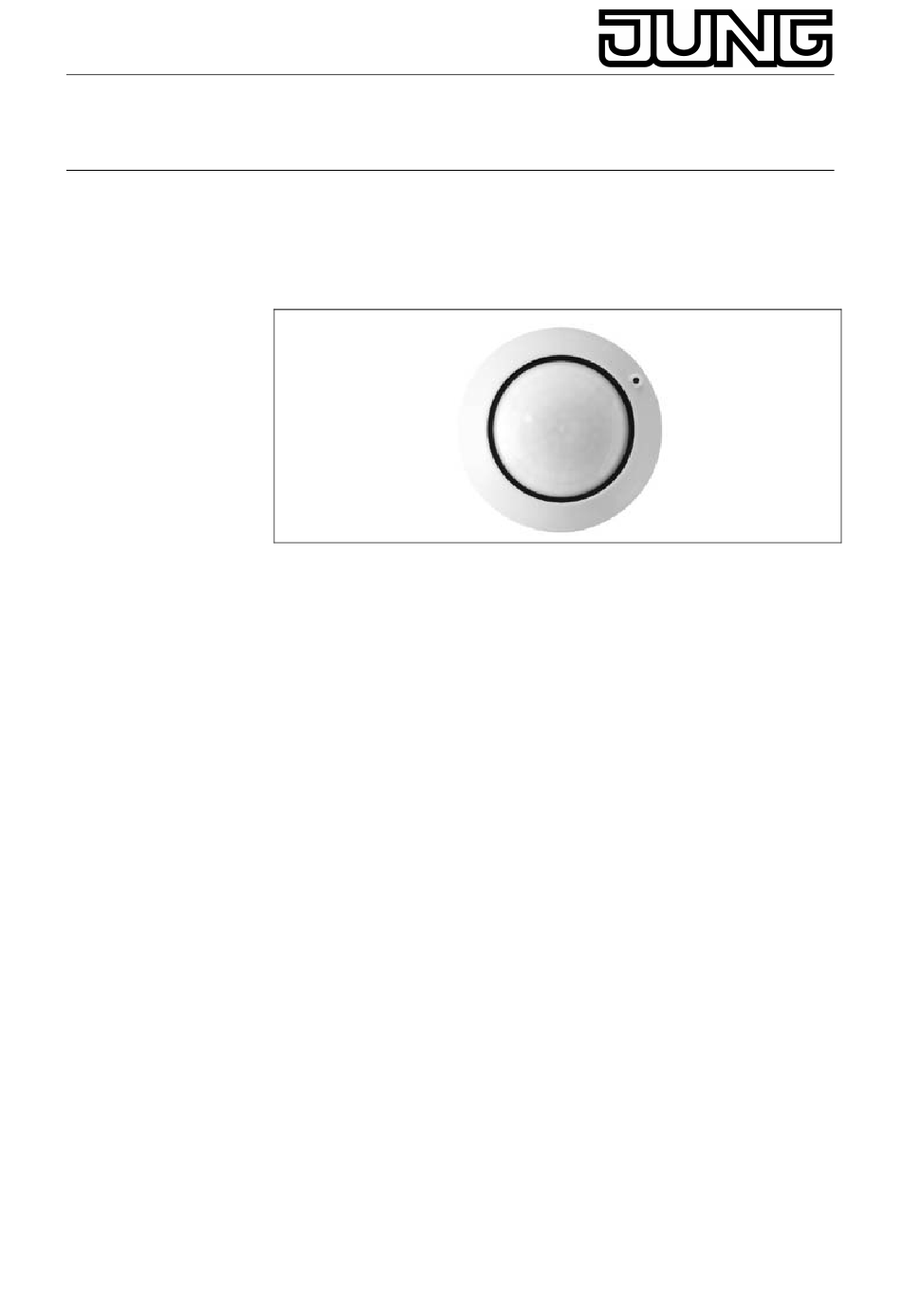

Operating Instructions
KNX Presence detector Standard/
Universal
Inhaltsverzeichnis
1. System information........................................................................... 1
2. Safety warnings................................................................................. 2
3. Presence detector principles ........................................................... 2
4. Function of presence detector 'Standard' ...................................... 2
5. Fitting.................................................................................................. 4
6. Adjustment......................................................................................... 5
7. Field of detection............................................................................... 8
8. Snap-on mask.................................................................................... 9
9. Technical data ................................................................................. 10
10. Acceptance of guarantee................................................................ 11

1. System information

This unit is a product of the instabus- EIB-System and corresponds to the
EIBA Guidelines. Detailed technical knowledge acquired in instabus
training courses is a prerequisite for the understanding of the system.
The functions of the device are softwaredependent. Detailed information
on the software and the functions implemented and the software itself are
available from the manufacturer's product data bank.
Planning, installation and commissioning of the device are effected with
the help of EIBA-certified software. For the productdatabase and
technical descriptions please refer to the internet at www.jung.de offering
up-to-date information.
Presence detector
Standard/Universal
Ref.-no.: 3360, 3360-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3360 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jung 3360

  • Page 1: Table Of Contents

    Planning, installation and commissioning of the device are effected with the help of EIBA-certified software. For the productdatabase and technical descriptions please refer to the internet at www.jung.de offering up-to-date information. Stand: Jan-08...
  • Page 2: Safety Warnings

    Presence detector Standard/Universal Ref.-no.: 3360, 3360-1 2. Safety warnings Attention: Electrical equipment must be installed and fitted by qualified electricians only. Non-observance of the installation instructions may damage the device and cause fire or other hazards. 3. Presence detector principles...
  • Page 3 The presence detector ‘Universal’ can also be used in combination with flushmounted automatic switches from JUNG in a master-slave configuration. For brightness-independent activation it is also possible to use a touch sensor as extension unit.
  • Page 4: Fitting

    Presence detector Standard/Universal Ref.-no.: 3360, 3360-1 the ceiling detector mode. It is only after twice the value of the preset brightness threshold (switch-off brightness) has been exceeded that the programmed telegram representing the end of detection is transmitted after ca. 10 minutes even if someone is still present. This switch-off brightness can be changed with a correction factor in the programmed parameters.
  • Page 5: Adjustment

    Presence detector Standard/Universal Ref.-no.: 3360, 3360-1 Sources of interference: Do not install the device in the direct vicinity of heat sources as, for instance, lamps (illustration on the left). Cooling of the lamp might be interpreted by the PIR sensor as a thermal change and trigger another detection cycle.
  • Page 6 Presence detector Standard/Universal Ref.-no.: 3360, 3360-1 (1) On-time: time The software-defined ‘supplementary transmit delay’ corresponds to the center position of the potentiometer and can be changed by +/- 50%, e.g.. 120 s +/- 60 s. (2) Brightness: lux Fine-tuning of the software-defined twilight threshold. The setting range depends on the mode of operation selected and comprises the full range of twilight values, e.g.
  • Page 7 Presence detector Standard/Universal Ref.-no.: 3360, 3360-1 Adjustment information If the software-defined values are not precise enough, they can be adapted within a limited range with the help of the lux and time potentiometers, if this function is enabled in the software. If the necessary readjustment exceeds the predefined range, the parameters must be corrected and the device reprogrammed thereafter.
  • Page 8: Field Of Detection

    Presence detector Standard/Universal Ref.-no.: 3360, 3360-1 7. Field of detection The presence detector has a detection range of 360°. The PIR sensor system works with 6 detection levels and 80 lenses. The field is ca. 5 m in diameter at desktop height (ca. 80 cm). The field diameter on the floor is ca.
  • Page 9: Snap-On Mask

    Presence detector Standard/Universal Ref.-no.: 3360, 3360-1 Important: In the event of movements directed straight towards the presence detector, a reduction of the detection range must be expected. In this case, detection in the outer 4m range is not ensured. If a person approaches the presence detector quickly, there may be the impression of a reduced range.
  • Page 10: Technical Data

    Presence detector Standard/Universal Ref.-no.: 3360, 3360-1 The mask is fastened with a snap on the lens system (picture on the left). 9. Technical data Connection: via AST (2 x 5 poles) Angle of detection: 360° Nominal field of detection ∅ ca. 5 m...
  • Page 11: Acceptance Of Guarantee

    We accept the guarantee in accordance with the corresponding legal provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Service-Center Kupferstr. 17-19 D-44532 Lünen Service-Line: 0 23 55 .
