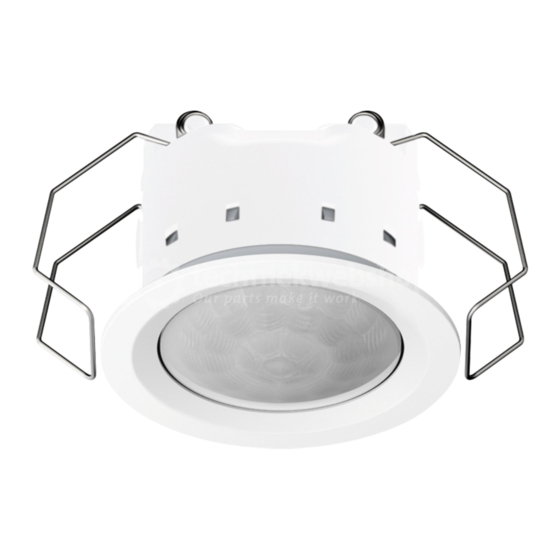

Motion detector mini basic
Motion detector mini basic
Art. no.: BM360MBWW
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. During installation and cable routing, comply with the regulations and
standards which apply for SELV circuits.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end customer.
2
Intended use
Intended use
–
Brightness-independent detection of motion indoors.
–
Connection to the KNX devices mentioned under accessories e.g. Multistation or push
button interface for the automatic switching of loads.
–
Power supply via the unchoked output of a KNX power supply or power supply unit with
safety extra-low voltage (SELV).
–
Clamp mounting in suspended ceilings.
–
Ceiling mounting on fixed ceilings in appliance box according to DIN 49073 or surface-
mounted housing (see accessories)
3
Function
–
Brightness-independent detection of motions in the detection field
–
Switch on: After detecting motion
–
Switch off: No motion in the detection field and run-on-time elapsed
–
Potential-free electronic switching contact
4
Information for electrically skilled persons
4.1 Fitting and electrical connection
Selecting installation location
The motion detector is installed on the ceiling and monitors the surface under it.
￭
Select a vibration-free installation location. Vibrations can lead to unwanted switching.
￭
Avoid interference sources in the detection area. Interference sources, e.g. heaters, vent-
ilation, air conditioners, and cooling light bulbs can lead to unwanted detections.
If necessary, the detection field can be limited using the push-on cover in order to minim-
ize the influence of interference sources.
82403103
J0082403103
1 / 6
29.09.2020
