Presence detector compact

Advertisement

Quick Links

Light Management
Presence detector compact
Presence detector compact
Art. No. : PMK 360 WW
Presence detector compact
Art. No. : PMK 360 AL
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Do not press on the lens. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Brightness sensor
(2) Sensor window
(3) Decor ring
(4) Connection box
(5) LED
(6) Adjuster time, run-on time
(7) Adjuster lux, Brightness
3 Function
Intended use
82552623
J0082552623

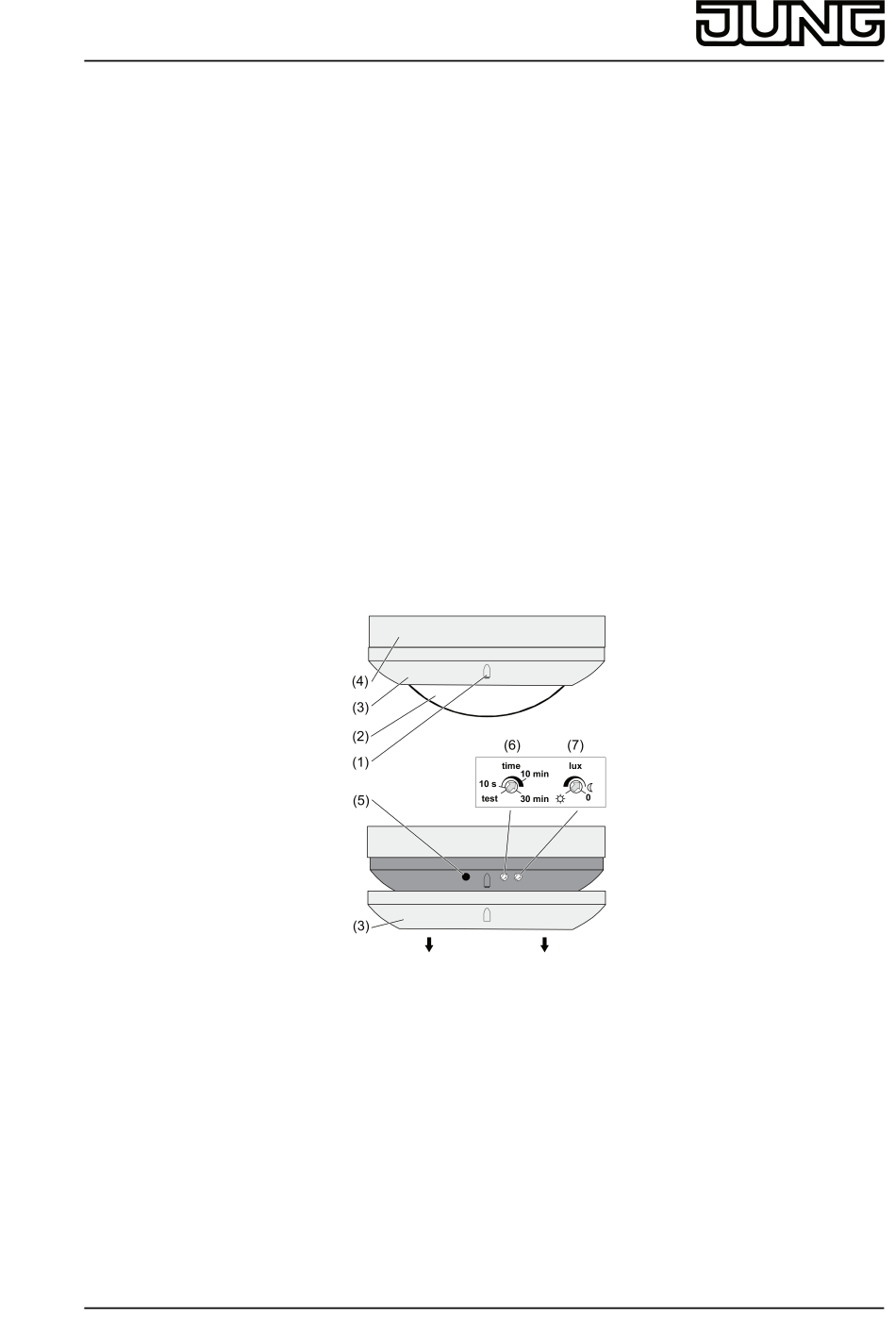

Figure 1: Device components
1/11
04.09.2015

Advertisement

loading
Need help?

Need help?

Do you have a question about the PMK 360 WW and is the answer not in the manual?

Questions and answers

Summary of Contents for Jung PMK 360 WW

  • Page 1 Light Management Presence detector compact Presence detector compact Art. No. : PMK 360 WW Presence detector compact Art. No. : PMK 360 AL Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons.
  • Page 2: Operation

    Light Management Presence detector compact Automatic switching of lighting depending on the heat motion and ambient brightness. Ceiling installation, surface-mounted Product characteristics 2-point light control Run-on time and brightness value settable Test operation for checking the detection area Push-on cover for limiting the detection area Parallel connection of multiple presence detectors possible Manual switch-on and switch-off possible with installation button Automatic operation...
  • Page 3 Light Management Presence detector compact The light is switched off for 3 minutes. Each detected motion extends the time by 3 minutes. After the 3 minutes have elapsed the presence detector is in automatic mode again. During these 3 minutes the light can only be switched on using the installation button.
  • Page 4 Light Management Presence detector compact Figure 3: Detection field The range is approx. 5 m in diameter at table height, e.g. approx. 80 cm. At floor level the range diameter is approx. 8 m (figure 3). These data are applicable for installation on the ceiling at an installation height of 2.5 m. At installation heights greater than 2.5 m the detection area becomes larger, while at the same time the detection density and sensitivity are reduced.
  • Page 5 Light Management Presence detector compact Installing the connection box Figure 5: Connection box (8) Fastening holes (9) Cable entry, surface-mounted (10) Thin points for optional cable entries For an additional flush-mounted cable entry or surface-mounted cable entry, break out the appropriate thin point (10) (figure 5).
  • Page 6 Light Management Presence detector compact Connect presence detector according to connection diagram (figure 6). If multiple miniature circuit breakers supply dangerous voltages to the device or load, couple the miniature circuit breakers or label them with a warning, to ensure release is guaranteed.
  • Page 7 Light Management Presence detector compact grey, GY, 1 Installation button connection Earth conductor Connect optional installation button (13) to all presence detectors (figure 7). This is only necessary if manual operation is also desired. i Lit installation buttons may only be connected if they have an N terminal. Screw presence detector to connection box (4) with screws (12) and mounting pins (11) (figure 4).
  • Page 8 Light Management Presence detector compact Without cover Ø approx. 8 m All data are applicable for an installation height of 2.5 m Pull off push-on cover. Using scissors, cut out push-on cover along the marked lines as required. Push on push-on cover. Calibrating the brightness value Brightness calibration is necessary to prevent light oscillations from occurring.
  • Page 9 Turn time adjuster (6) in the appropriate direction. The presence detector is ready for operation Attach decor ring (3). 6 Appendix 6.1 Technical data PMK 360 WW Rated voltage AC 230 / 240 V ~ Mains frequency 50 / 60 Hz Ambient temperature +5 ...
  • Page 10: Troubleshooting

    Light Management Presence detector compact Switch-off delay approx. 10 s ... 30 min Run-on time, test approx. 1 s Brightness setting approx. 10 ... 1000 lx Connected load at 25 °C Incandescent lamps 1000 W HV halogen lamps 1000 W Tronic transformers 750 W Inductive transformers 750 VA Fluorescent lamps, uncompensated 500 VA Fluorescent lamps, parallel compensated...
  • Page 11: Warranty

    6.3 Accessories Not combinable with devices from the light management system. 6.4 Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...

This manual is also suitable for:

Pmk 360 al
