- Page 1 Operating instructions JUNG HOME motion detector 2.2 m Art. no. BT..17182.. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 23.02.2023 32405403 J0082405403 www.jung.de...
-
Page 2: Table Of Contents
JUNG HOME motion detector 2.2 m Table of Contents Safety instructions ...................... 3 Device components...................... 4 Intended use ........................ 4 Product characteristics ...................... 5 Functional description ....................... 6 Operation .......................... 6 Operation on the cover .................. 6 Wireless operation .................... 7 Operation via extensions .................. 7 Mounting and electrical connection ................... 7... -
Page 3: Safety Instructions
The device is not suitable for use as a burglar alarm or other alarm. Read the instructions in full, observe them and keep them for future reference. You can find more information on JUNG HOME at www.jung.de/JUNGHOME 32405403 3 / 27 23.02.2023... -
Page 4: Device Components

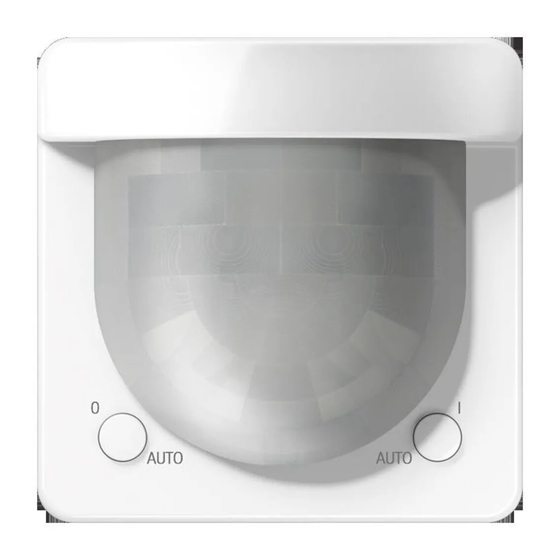

– Automatic switching of lighting depending on the heat motion and ambient brightness – Wireless connection to devices from the JUNG HOME system – Operation with system insert for switching or dimming, or 3-wire extension – Wall installation on system insert... -
Page 5: Product Characteristics
Commissioning and operation using JUNG HOME app on mobile end device (smartphone or tablet) via Bluetooth – Two buttons for continuously ON/OFF or automatic mode – Extension of the detection field by the combination of several JUNG HOME motion detectors or via the extension input – Multi-colour status display –... -
Page 6: Functional Description
If the device was not previously added to a Bluetooth Mesh network (project) by means of the JUNG HOME app, it will switch to pairing mode for two minutes when the mains voltage returns and the status LED will flash slowly at a regular interval in blue. -
Page 7: Wireless Operation
In order to switch automatic operation back on, press button ON (7) or OFF (5) again. Status LED (6) goes out. Wireless operation Wireless operation is done with linked JUNG HOME devices or via the JUNG HOME App, which is also used to link the JUNG HOME devices (see 'Commissioning via App'). - Page 8 – If JUNG HOME devices are installed on both sides of a solid wall, they should be positioned as close as possible to each other on the opposite sides of the wall.
- Page 9 To minimise the influence of interference sources, reduce the sensitivity or limit the detection field by switching off a sensor (JUNG HOME app). Mounting the cover DANGER! Electric shock when live parts are touched.
-
Page 10: Commissioning Via App
The detection field can be expanded wirelessly. For this purpose, use the three-wire extension with JUNG HOME presence or motion detectors and link it with the JUNG HOME app to the main unit. Alternatively, connect the three-wire extension with LB management presence or motion detectors to the main unit with the JUNG HOME presence or motion detector via an extension line. - Page 11 If the status LED flashes red very fast, pairing has failed and needs to be re- tried. The JUNG HOME app can then be used to link devices wirelessly and config- ure the parameters and operation (see list of functions and parameters).
-
Page 12: Resetting The Device To The Factory Setting
If the device has already been added to a project with the JUNG HOME app, it can be deleted from the app with the "delete device" function and simultan- eously reset to the default setting. -
Page 13: Technical Data
The status LED (6) flashes in red more slowly for approx. five seconds. The device has been reset to the default setting. After resetting the device to the default setting, it must be removed from the JUNG HOME app provided it has not already been deleted from the app. Default settings (selection) Function... -
Page 14: List Of Functions And Parameters
List of functions and parameters The JUNG HOME app can be used to configure all functions of the JUNG HOME device and its behaviour in the Bluetooth Mesh project for the respective individual purposes. - Page 15 JUNG HOME motion detector 2.2 m Presence detector settings (cover/sensor) nj Parameters Setting options, default Explanation setting Presence de- Off, On If the function is activated, the device tection** sends an additional telegram brightness- Default setting: Off independently if movements are detected,...
- Page 16 JUNG HOME motion detector 2.2 m Parameters Setting options, default Explanation setting Run-on time 0 s (off) ... 240 min, dy- This parameter is used, for example, if (sensor)** namic run-on time: off, the dynamic run-on time is to be used.
- Page 17 JUNG HOME motion detector 2.2 m Parameters Setting options, default Explanation setting Operating lock** No lock, factory reset Factory reset lock: prevents resetting on lock, operating lock the device and hence the removal from a project and pairing again by unauthorised Default setting: no lock persons.
- Page 18 10:00 pm. Set location** Geographic location The astro timer in the JUNG HOME devices needs the geographic location of the project to calculate the sunrise or sun- set time. The astro timer is calculated once a week for the localised place.
- Page 19 The run-on time is thereby prolonged by approx. 30 seconds. If a movement is detected by a linked JUNG HOME sensor cover or the load switched on again by operating an extension or by a linked JUNG HOME op-...
- Page 20 Presentation Off, On The presentation function is used in com- function bination with a linked JUNG HOME pres- Default setting: Off ence detector. The presentation function can be switched on or off with the app or a linked JUNG HOME push-button.
- Page 21 JUNG HOME motion detector 2.2 m Parameters Setting options, default Explanation setting Minimum 100 ms ... 10 s Limits the switching speed of the device switching repeat by increasing the value, in order to pro- Default setting: 100 ms time** tect the connected load, for example.
- Page 22 JUNG HOME sensor cover or the warning is switched on again by operating an ex- tension or by a linked JUNG HOME oper- ating cover, the run-on time will be restar- ted and the light switched back to the switch-on brightness.
- Page 23 Presentation Off, On The presentation function is used in com- function bination with a linked JUNG HOME pres- Default setting: Off ence detector. The presentation function can be switched on or off with the app or a linked JUNG HOME push-button.
- Page 24 JUNG HOME motion detector 2.2 m Parameters Setting options, default Explanation setting Colour temper- 2,000 ... 10,000 K Defines the adjustable colour temperature ature range range. The minimum and maximum value Default setting: 2,700 ... (min-max) (only depend on the colour temperature range...
-
Page 25: Troubleshooting
JUNG HOME motion detector 2.2 m Parameters Setting options, default Explanation setting Night light func- 5 ... 100% Defines the reduced switch-on brightness tion bright- to which the light is switched with the Default setting: 20% ness** "night light function" activated. The entry in percent applies to the maximum bright- ness of the dimming range. - Page 26 JUNG HOME motion detector 2.2 m Re-establish the link in the app on the detailed motion detector view. Device switches on without motions Cause: Heat sources in the detection field, device constantly detects movements. Remove the heat sources if possible.
-
Page 27: Accessories
Art. no. AS..50DS Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type art. no. BT..17182.. meets the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
