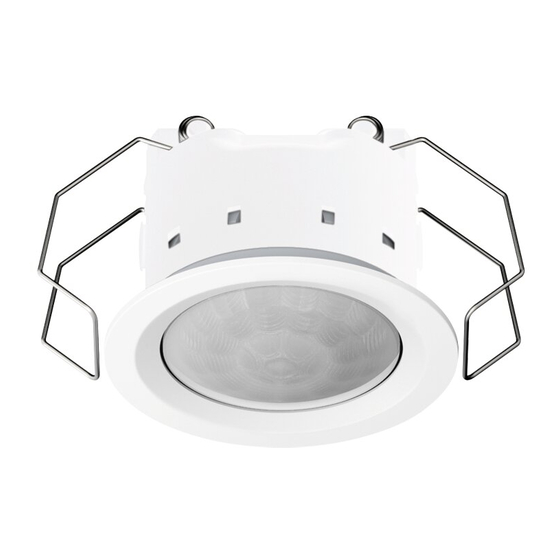

Motion detector mini basic
Motion detector mini basic
Art. no.: BM360MBWW
Motion detector mini basic
Art. no.: BM360MBWW-270
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. During installation and cable routing, comply with the regulations and
standards which apply for SELV circuits.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end customer.
2
Intended use
Intended use
–
Brightness-independent detection of motion indoors.
–
Connection to the KNX devices mentioned under accessories e.g. Multistation or push
button interface for the automatic switching of loads.
–
Power supply via the unchoked output of a KNX power supply or power supply unit with
safety extra-low voltage (SELV).
–
Clamp mounting in suspended ceilings.
–
Ceiling mounting on fixed ceilings in appliance box according to DIN 49073 or surface-
mounted housing (see accessories)
3
Function
–
Brightness-independent detection of motions in the detection field
–
Switch on: After detecting motion
–
Switch off: No motion in the detection field and run-on-time elapsed
–
Potential-free electronic switching contact
4
Information for electrically skilled persons
4.1 Fitting and electrical connection
Selecting installation location
The motion detector is installed on the ceiling and monitors the surface under it.
￭
Select a vibration-free installation location. Vibrations can lead to unwanted switching.
￭
Avoid interference sources in the detection area. Interference sources, e.g. heaters, vent-
ilation, air conditioners, and cooling light bulbs can lead to unwanted detections.
If necessary, the detection field can be limited using the push-on cover in order to minim-
ize the influence of interference sources.
82403113
J0082403113
1 / 7
17.11.2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung BM360MBWW
Summary of Contents for Jung BM360MBWW
- Page 1 Motion detector mini basic Motion detector mini basic Art. no.: BM360MBWW Motion detector mini basic Art. no.: BM360MBWW-270 Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
- Page 2 Motion detector mini basic Motion detection Figure 1: Tangential and radial direction of motion The device has a detection field of 360°. The diameter of the detection field depends on the in- stallation height and the direction of motion of persons in the detection field (Figure 1). The de- tection field becomes larger the greater the installation height, while the detection density and sensitivity are reduced at the same time.
- Page 3 Motion detector mini basic Terminal Motion detector Design ring The environment in the suspended ceiling must be dry. Max. thickness of the suspended ceiling approx. 25 mm. Installation depth min. 35 mm. Dis- tance between concrete ceiling and suspended ceiling min. 20 mm (Figure 2). ￭...
- Page 4 Motion detector mini basic Figure 6: Connection to Binary input 6-gang Figure 7: Connection to Binary input 8-gang, 24 V Figure 8: Connection to Push-button interface, 2-gang, Push-button interface, 4-gang Figure 9: Connection to flush-mounted actuators: Switch actuator, 2-gang / blinds actuator, 1- gang, Switch actuator, 1-gang, Universal dimming actuator, 1-gang Figure 10: Connection to Room temperature controller with push-button interface 4-gang, Room autostat with push-button interface 4-gang, CO2 multi-sensor 82403113...
- Page 5 Motion detector mini basic Figure 11: Connection to Valve drive (motor-operated) with controller Figure 12: Connection to KNX Push-button universal (Figure 4) (6) Motion detector mini basic (Figure 5) (7) Multi station, Art. no.: 23066REGHE, Rotary sensor, Art. NoD- S4092TS.: (Figure 6) (8) Binary input 6-gang, Art.
- Page 6 Motion detector mini basic Degree of protection IP44 Detection angle 360° Installation height Detection field Ø approx. 6 m Run-on time BM360MBWW approx. 10 s BM360MBWW-270 approx. 270 s Switching output Electric strength 40 V Current carrying capacity max. 50 mA Connected load max.
- Page 7 Motion detector mini basic ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82403113 17.11.2021 7 / 7 J0082403113...
