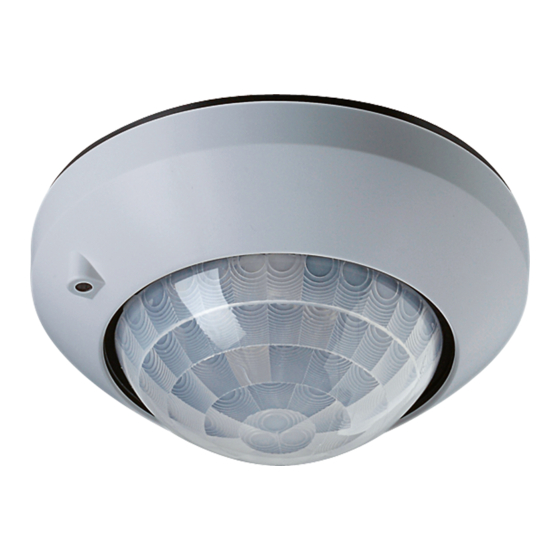

Presence detector
Presence detector Standard
Art. no.: 3361 WW
Presence detector Standard
Art. no.: 3361 AL
Presende detector Universal
Art. no.: 3361-1 WW
Presende detector Universal
Art. no.: 3361-1 AL
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end customer.
2
Battery safety instructions
This device or its accessories are supplied with batteries in the form of button cells.
DANGER! Batteries can be swallowed. This can lead directly to death by suffocation. Danger-
ous substances may cause severe internal burns leading to death within 2 hours.
Keep new and used batteries away from children.
Do not use devices if the battery compartment does not close securely and keep away from
children.
If you suspect that a battery has been swallowed or is in any orifice of the body, seek immediate
medical attention.
WARNING! Improper handling of batteries can result in explosion, fire or chemical burn due to
leakage.
Do not heat or throw batteries into fire.
Do not reverse polarity, short-circuit or recharge batteries.
Do not deform or disassemble batteries.
Replace batteries only with an identical or equivalent type.
Remove empty batteries immediately and dispose of in an environmentally friendly manner.
82585623
j0082585623
1 / 11
23.07.2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung Standard 3361 WW
Summary of Contents for Jung Standard 3361 WW
- Page 1 Presence detector Presence detector Standard Art. no.: 3361 WW Presence detector Standard Art. no.: 3361 AL Presende detector Universal Art. no.: 3361-1 WW Presende detector Universal Art. no.: 3361-1 AL Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible.
-
Page 2: Device Components
Presence detector Device components Figure 1: Device components Supporting frame Integrated bus coupling unit Decor ring Brightness sensor Sensor window with Programming LED, red Status LED, blue Adjuster Sens. for manual sensitivity adjustment Programming button Prog. Function Intended use – Requirement-oriented control of lighting, room thermostats and other electrical consumers in interior rooms –... -
Page 3: Operation
Presence detector – Adjuster for manual adjustment of sensitivity – Status LED: Flashes during motion detection; depending on programming in normal oper- ation or only during the walking test mode Additional characteristics of "Universal" version: – Manual operation with IR remote control possible (accessories) –... - Page 4 Presence detector Adjustable buttons IR remote control Button Function ´ Increasing sensitivity ² Reducing sensitivity ³ Resetting sensitivity to presetting Ê Function block 1: Brightness threshold 10 lx Ë Function block 1: Brightness threshold 50 lx Ì Function block 1: Brightness threshold 150 lx Í...
- Page 5 Presence detector ￭ Extend run-on-time: Depending on requirement, press 10 SEK button, 30 SEK button, 2 MIN button, 5 MIN button or 30 MIN button. Other values can be set with the START/ STOP buttons. Information for electrically skilled persons 6.1 Fitting and electrical connection Detection field and range Figure 2: Tangential and radial direction of motion...
- Page 6 Presence detector Installation height 1: 3.00 m 20 m 16 m 12 m 3.50 m 23 m 18.5 m 14 m 4.00 m 26 m 17 m 14.5 m*) – *) 5.00 m 28 m 18 m 15 m*) – *) Range for tangential movement on the ground Range for radial movement on the ground Range for typical movements at desks, e.g.
- Page 7 Presence detector Cover size Range on the ground (height 3 m) Complete push-on cover Ø approx. 4.5 m Area I cut out Ø approx. 7.5 m Areas I + II cut out Ø approx. 12 m without push-on cover Ø approx. 20 m ￭...
- Page 8 Presence detector ￭ When mounting the device, align it so that the alignment of areas A, B and C match the project design. Already pay attention to correct alignment when mounting the appliance box and support- ing frame. Connecting and fitting the device in a flush-mounted box Flush-mounted appliance box is mounted on the ceiling at the designated installation location.
-
Page 9: Disposal Of Batteries
Presence detector ￭ Limit detection area, if necessary, using the push-on cover. Adjust sensitivity with adjuster Sens. or IR remote control, or change the programming. ￭ Deactivate parameter "walking test after download" and download application software. Only for "Universal" version: If enabled, the walking test function can be activated with the button Ù... -
Page 10: Warranty
Presence detector Adjust parameter setting for brightness threshold. Light switches off briefly and then on again immediately Cause 1: Luminaires in the detection field. Set the configuration barrier parameter so that cooling light bulbs are not detected. Cause 2: The brightness threshold set is not reached after switching off. Device switches on again immediately during motion detection. - Page 11 Presence detector ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82585623 23.07.2019 11 / 11 j0082585623...
