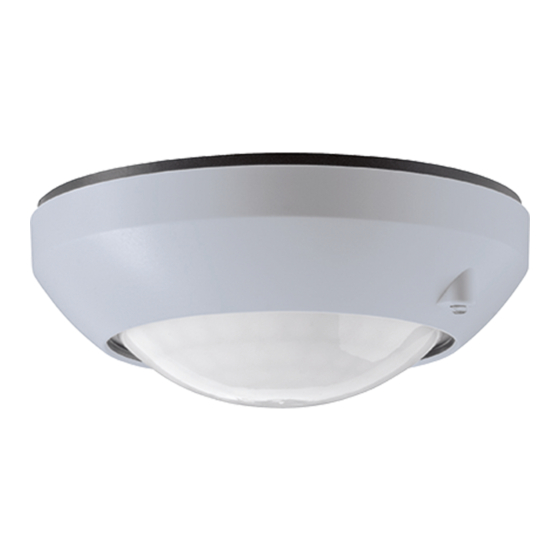

Motion and presence detector

Advertisement

Quick Links

LB management
Motion and presence detector
Motion and presence detector
Art. no.: DWPM17360WW
Motion and presence detector
Art. no.: DWPM17360AL

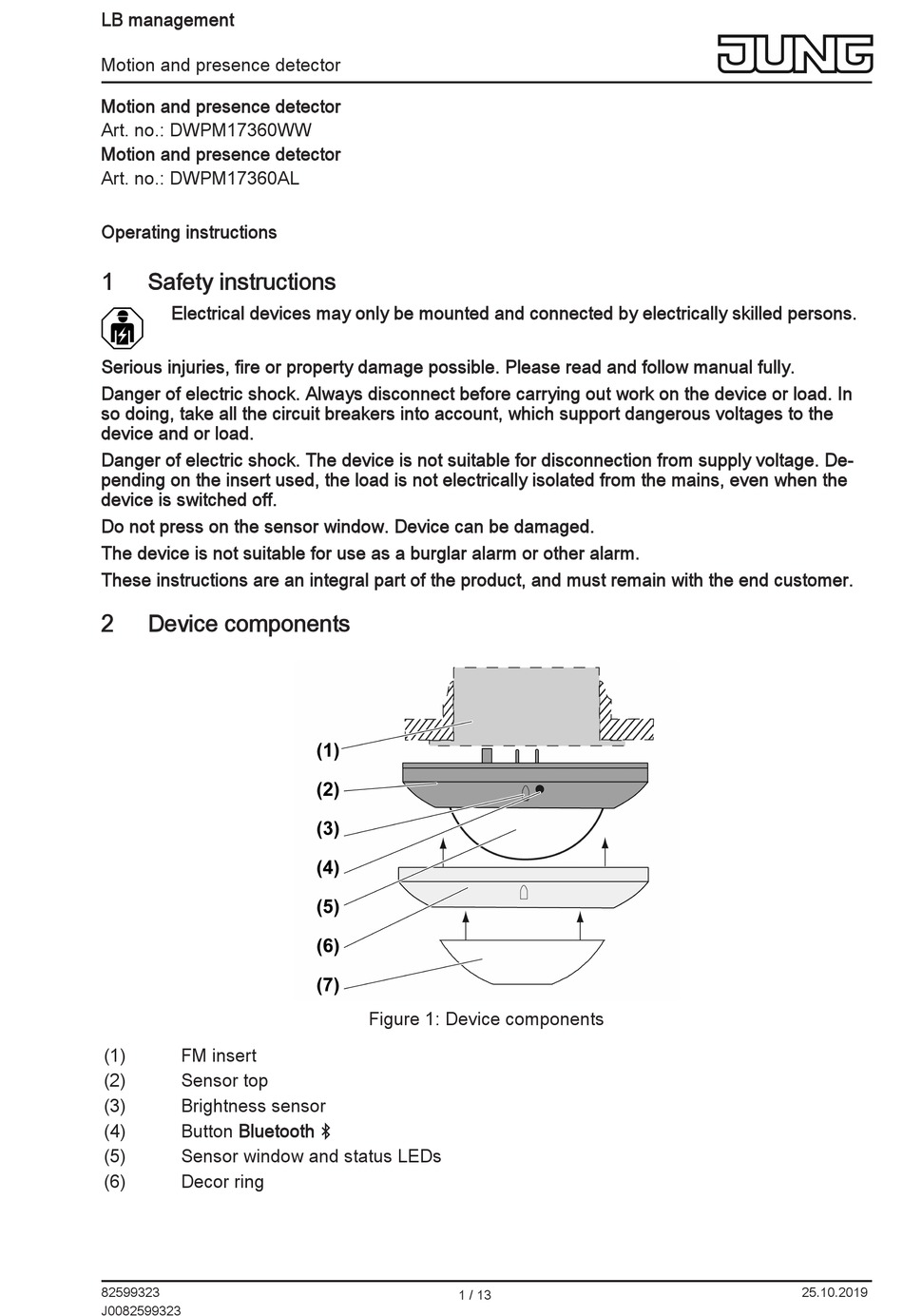

Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
Danger of electric shock. The device is not suitable for disconnection from supply voltage. De-
pending on the insert used, the load is not electrically isolated from the mains, even when the
device is switched off.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end customer.
2
Device components
(1)
FM insert
(2)
Sensor top
(3)
Brightness sensor
(4)
Button Bluetooth Ʃ
(5)
Sensor window and status LEDs
(6)
Decor ring
82599323
J0082599323
Figure 1: Device components
1 / 13
25.10.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWPM17360AL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jung DWPM17360AL

  • Page 1 Motion and presence detector Motion and presence detector Art. no.: DWPM17360WW Motion and presence detector Art. no.: DWPM17360AL Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
  • Page 2: Intended Use

    LB management Motion and presence detector Push-on cover Status LED Red LED lights up Self-test Red LED flashes 3 s on / 3 s off Alarm function active Red LED flashes 0.5 s on / 0.5 s off Alarm was triggered Red LED flashes three times followed by a 1 s Cover was previously connected to another in- pause...
  • Page 3: Operation

    LB management Motion and presence detector – Night light function – Constant light regulation Automatic operation The device detects heat motions of people, animals and objects. – The light is switched on if a person enters the detection field and the brightness threshold is below the set brightness threshold.
  • Page 4: Information For Electrically Skilled Persons

    LB management Motion and presence detector Operation using 2-wire or 3-wire extension with button cover or push-button Multiple extensions can be combined with each other. All operations described here are also possible via the app. Operation with the rotary dimmer extension is described in the rotary dim- mer extension instructions.
  • Page 5 LB management Motion and presence detector Figure 2: Detection range depending on the direction of movement Diameter of detection field for direction of movement Installation height 1: 2.20 m 14.50 m 11.50 m 8.00 m 6.00 m 2.50 m 16.50 m 13.00 m 10.00 m 7.00 m...
  • Page 6 LB management Motion and presence detector Figure 3: Detection field: areas A, B and C; installation height 2.20 m Figure 4: Arrangement of the areas A, B and C ■ Pay attention to correct alignment when mounting the appliance box and flush-mounted insert.
  • Page 7 LB management Motion and presence detector Limiting the detection field using the push-on cover The push-on cover can be used to limit the detection field, e.g. in order to mask out interference sources. Figure 5: Push-on cover Size Range on the ground (mounting height 3 m) Complete push-on cover Ø...
  • Page 8: Technical Data

    LB management Motion and presence detector Function Setting Sensitivity of sensors A-C 100 % Detection angle 360°, sensors A-C active Switch-on threshold 10 lux Run-on time 2 minutes Supplementary function switched-off Checking detection field Any motions detected are displayed in the app and by the red LED. The lighting is switched on for approx.
  • Page 9: Parameter List

    LB management Motion and presence detector Transmitting range typ. 10 m Parameter list Adjustable parameter list via app Depending on the insert, the following parameters can be changed with the app. Settings for switch and dimming inserts Parameters Setting options, default set- Explanation ting Operating func-...
  • Page 10 LB management Motion and presence detector Parameters Setting options, default set- Explanation ting creased if absence is detected. The maximum run-on time is the set run-on time. The shortest run-on time is 10 seconds. For run-on times times from 5 minutes, the brief presence detection function is also active.
  • Page 11 LB management Motion and presence detector Settings only for switch inserts Parameters Setting options, Explanation default setting Pulse operation On, Off If motion occurs, then a short pulse of approx. 0.5 seconds is triggered depending on the brightness. Default setting: The pulse is repeated approx.
  • Page 12: Troubleshooting

    LB management Motion and presence detector Parameters Setting options, Explanation default setting Night light func- On, Off When the function is activated, the light is not switched tion on to the switch-on brightness but to a defined bright- Default setting: ness value when motion is detected.
  • Page 13: Warranty

    Switch on the Bluetooth interface. 10 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type art. no. DWPM17360.. meets the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
