LB management
LB management

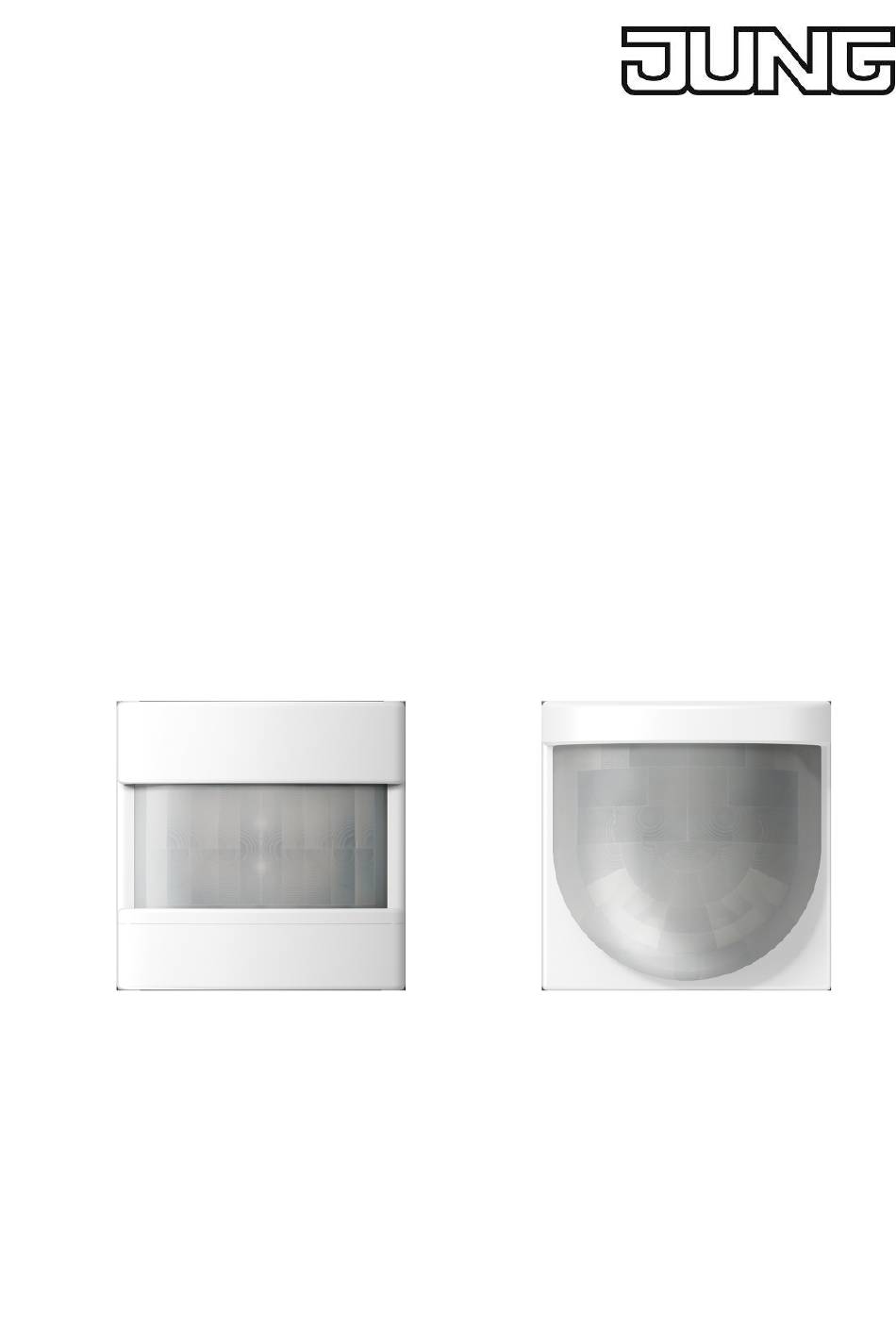

Operating instructions

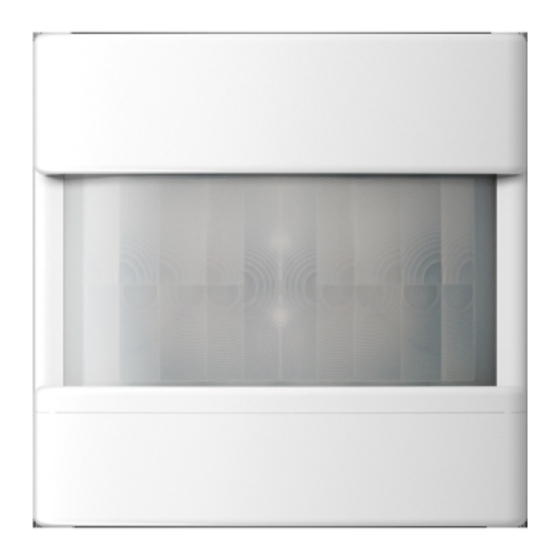

LB Management motion detector 1.1 m
Art. no. ..17180..
LB Management motion detector 1.1 m
Art. no. ..17182..
LB Management motion detector 2.2 m
Art. no. ..17280..
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
GERMANY
Telefon: +49 2355 806-0
Telefax: +49 2355 806-204
kundencenter@jung.de
www.jung.de
04.08.2022
32599613 J0082599613
Advertisement
Table of Contents
Related Manuals for Jung 17180 Series
Summary of Contents for Jung 17180 Series
- Page 1 Art. no. ..17180.. LB Management motion detector 1.1 m Art. no. ..17182.. LB Management motion detector 2.2 m Art. no. ..17280.. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
-
Page 2: Table Of Contents
LB Management motion detector Table of Contents Safety instructions ...................... 3 Intended use ........................ 3 Operation .......................... 4 Information for electrically skilled persons ................ 5 Mounting and electrical connection................ 5 Commissioning .................... 12 Technical data ......................... 14 Troubleshooting ...................... 14 Accessories ........................ 15 Warranty.......................... 15 32599613 2 / 15 04.08.2022 J0082599613... -
Page 3: Safety Instructions
LB Management motion detector Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Always disconnect before carrying out work on the device or load. -
Page 4: Operation
LB Management motion detector Motion detector 1.10 m – Screen for limiting the detection area Automatic operation The device detects heat motions of people, animals and objects. – The light is switched on if a person enters the detection field and the bright- ness threshold is below the set brightness threshold. -
Page 5: Information For Electrically Skilled Persons
LB Management motion detector ￭ Press the operating cover at the top or bottom or the push-button for longer than 0.4 seconds. Light becomes brighter or dimmer as far as the respective limit value. Push-button: The dimming direction is changed with each new long actuation. Saving the switch-on brightness Only in combination with a main device with a dimming insert. - Page 6 LB Management motion detector Direction of movement : Passing the motion detector tangentially results in a heat signal which can be evaluated well. If movement is radial to the sensor, the heat sig- nal is smaller and thus harder to evaluate, resulting in a smaller range. The following specifications on the extent of the detection field are general guide values.
- Page 7 LB Management motion detector Image 3: Range with radial direction of motion for motion detector 1.10 m, art. no. ..17180.. 25% sensitivity 50% sensitivity 75% sensitivity 100% sensitivity Image 4: Range with tangential direction of motion for motion detector 1.10 m, art. no.
- Page 8 LB Management motion detector Image 5: Range with radial direction of motion for motion detector 1.10 m, art. no. ..17182.. Detection field and range for motion detector 2.20 m Image 6: Detection field and mounting height for motion detector 2.20 m Image 7: Range with tangential direction of motion for motion detector 2.20 m, mounting height 2.20 m 25% sensitivity 50% sensitivity...
- Page 9 LB Management motion detector 100% sensitivity Image 8: Range with radial direction of motion for motion detector 2.20 m, mounting height 2.20 m 25% sensitivity 50% sensitivity 75% sensitivity 100% sensitivity Image 9: Range with tangential direction of motion for motion detector 2.20 m, mounting height 1.10 m 25% sensitivity 50% sensitivity...
- Page 10 LB Management motion detector Image 10: Range with radial direction of motion for motion detector 2.20 m, mounting height 1.10 m 25% sensitivity 50% sensitivity 75% sensitivity 100% sensitivity Selecting installation location ￭ Select a vibration-free installation location. Vibrations can lead to unwanted switching.
- Page 11 LB Management motion detector Image 11: Limiting the detection field, motion detector 1.10 m Mounting the panel Image 12: Dismounting the cover Image 13: Dismounting of design cover Image 14: Panel mounting, series CD/LS and A Series CD, LS ￭ Removing the cover (1) (see figure 12). ￭...
-
Page 12: Commissioning
LB Management motion detector Series A: ￭ Mount the cover from the front on the left or right side of the device (see figure 14). Commissioning Make settings Image 15: Motion detection adjuster 1.10 m art. no...17180.. Image 16: Motion detection adjuster 1.1 m art. no. ..17182.. 32599613 12 / 15 04.08.2022... - Page 13 LB Management motion detector Image 17: Motion detection adjuster 2.20 m art. no. ..17280.. The adjusters for brightness threshold and sensitivity as well as run-on time are loc- ated behind the cover (1) of the motion detector 1.10 m and on the rear of the device at the motion detector 2.20 m.
-
Page 14: Technical Data
LB Management motion detector Technical data Ambient temperature -20 ... +45 °C Storage/transport temperature -25 ... +70 °C Degree of protection Art. no. ..17180.., ..17182.., ..17280.. IP20 Brightness threshold approx. 5 ... 1000 lx (and day operation) Sensitivity Art. no. ..17180.., ..17280.. 25, 50, 75, 100% Run-on time Art. -
Page 15: Accessories
Sealing kit for motion detector 2.2 m Art. no. AS..50DS Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
