Parameters

6.1

Logic diagram

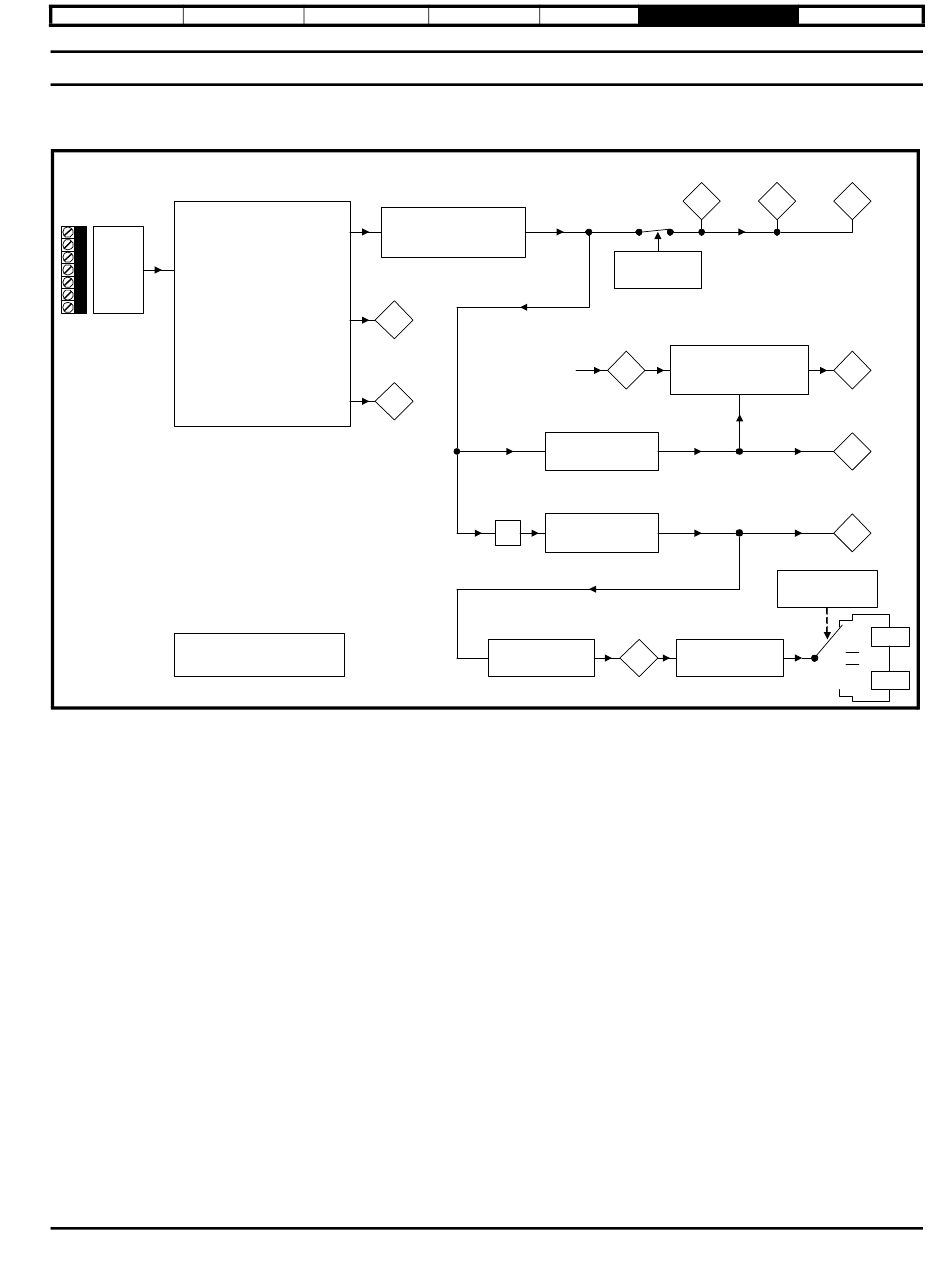

Figure 6-1 SI-Encoder V2 logic diagram
Encoder Feedback Interface
1 A, DATA Active Alarm (mm.022)
Supply Voltage (mm.036)
2 A\, DATA\
Device Type (mm.038)
3 B
Termination Select (mm.039)
4 B\
Error Detection Level (mm.040)
5 +V
Auto-configuration Select (mm.041)
6 0V
Additional Power-up Delay (mm.049)
Feedback Reverse (mm.056)
7 Shield
User Comms Enable (mm.067)
User Comms Transmit Register (mm.068)
User Comms Receive Register (mm.069)
Encoder Initialisation Mode (mm.075)
Module ID (mm.001)
Firmware Version (mm.002)
Module Temperature (mm.024)
SI-Encoder V2 User Guide
Mechanical Installation Electrical Installation
Turns Bits (mm.033)
Lines Per Revolution (mm.034)
Additional Configuration (mm.074)
Position Feedback
Signals
mm.070
Position Feedback
Initialised
mm.076
Getting Started
Revolution Counter
Position Feedback
Lock (mm.050)
Freeze Input State
Option Module
Freeze Signal
mm.113
from drive
Normalisation Turns
(mm.057)
d/dt Feedback Filter (mm.042)
Reference
Maximum Reference
mm.045
(mm.043)
Parameters Diagnostics
Position Fine Position
mm.028 mm.029 mm.030
Normalised Freeze
Position
Freeze Mode (mm.101)
Freeze Flag (mm.104)
mm.103
Freeze Sensor Delay (mm.114)
Normalised Position
mm.058
Speed Feedback
mm.027
Reference Destination
(mm.046)
Reference Scaling
(mm.044)
