AT90ICEPRO User Guide
Downloaded from Elcodis.com electronic components distributor

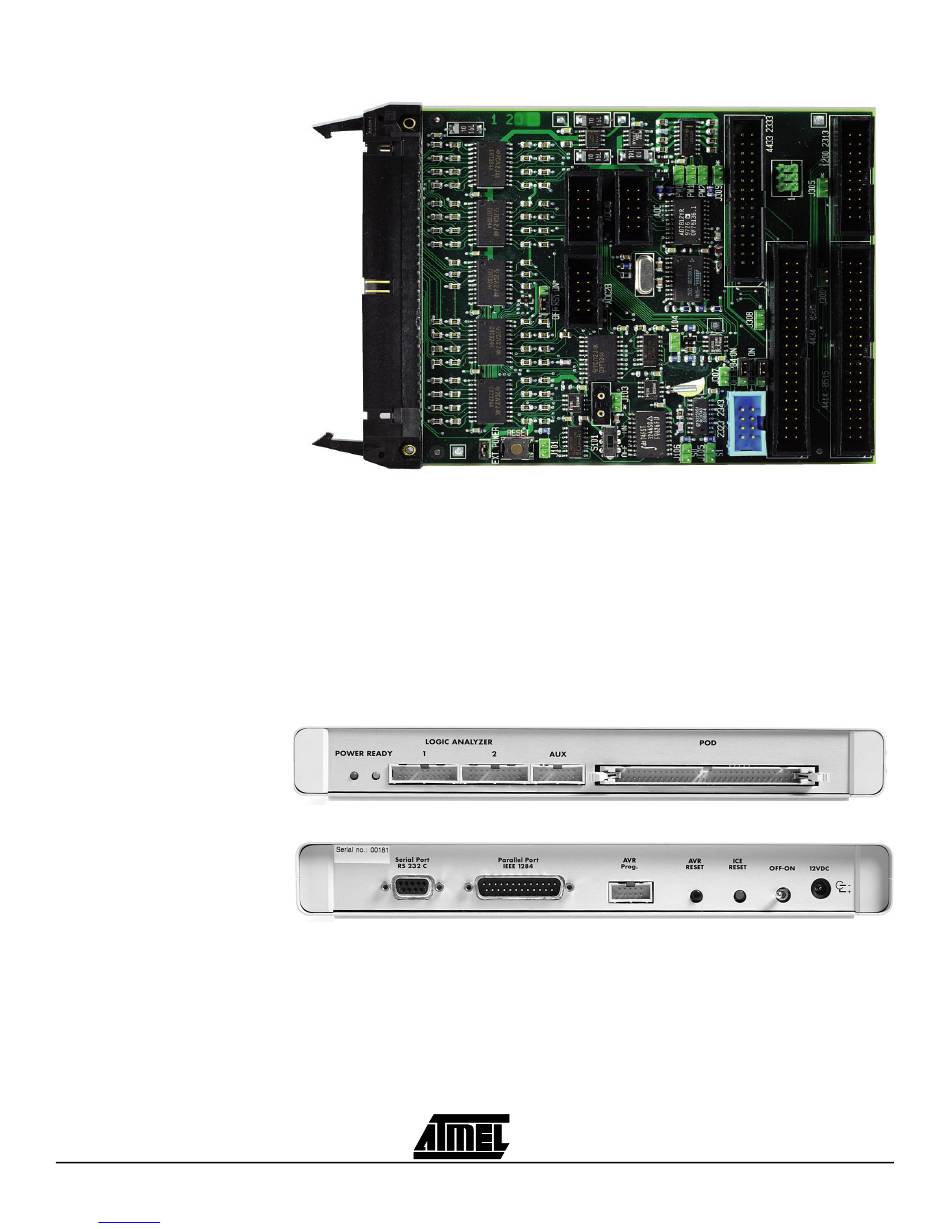

Figure 1-2. AT90ADCPOD
AT90ADCPOD is the pod card used for the processors, AT90S1200, -S2313, -S2323, -
S2333, -S2343, -S4414, -S4433, -S4434, -S8515, and -S8535. The pod contains the
analog comparator, the analog to digital converter, a clock circuit for handling of XTAL
and TOSC signals from the target application, a reset button and a voltage conversion
circuit. 11 different jumpers and one switch can be set on the pod card to select between
the different functions.
The pod card is connected to the AVR ICE unit using the pod cable (the wide cable),
and to the user application using the 8-pin, 20-pin, 28-pin, or 40-pin probe.
Note: It is extremely important that the probe cable is correctly connected to the user
application. The colored wire of the probe cable indicates pin 1 of the AVR
device.
Figure 1-3. AVR ICEPRO Front Panel
Figure 1-4. AVR ICEPRO Back Panel
Introduction
1-3
