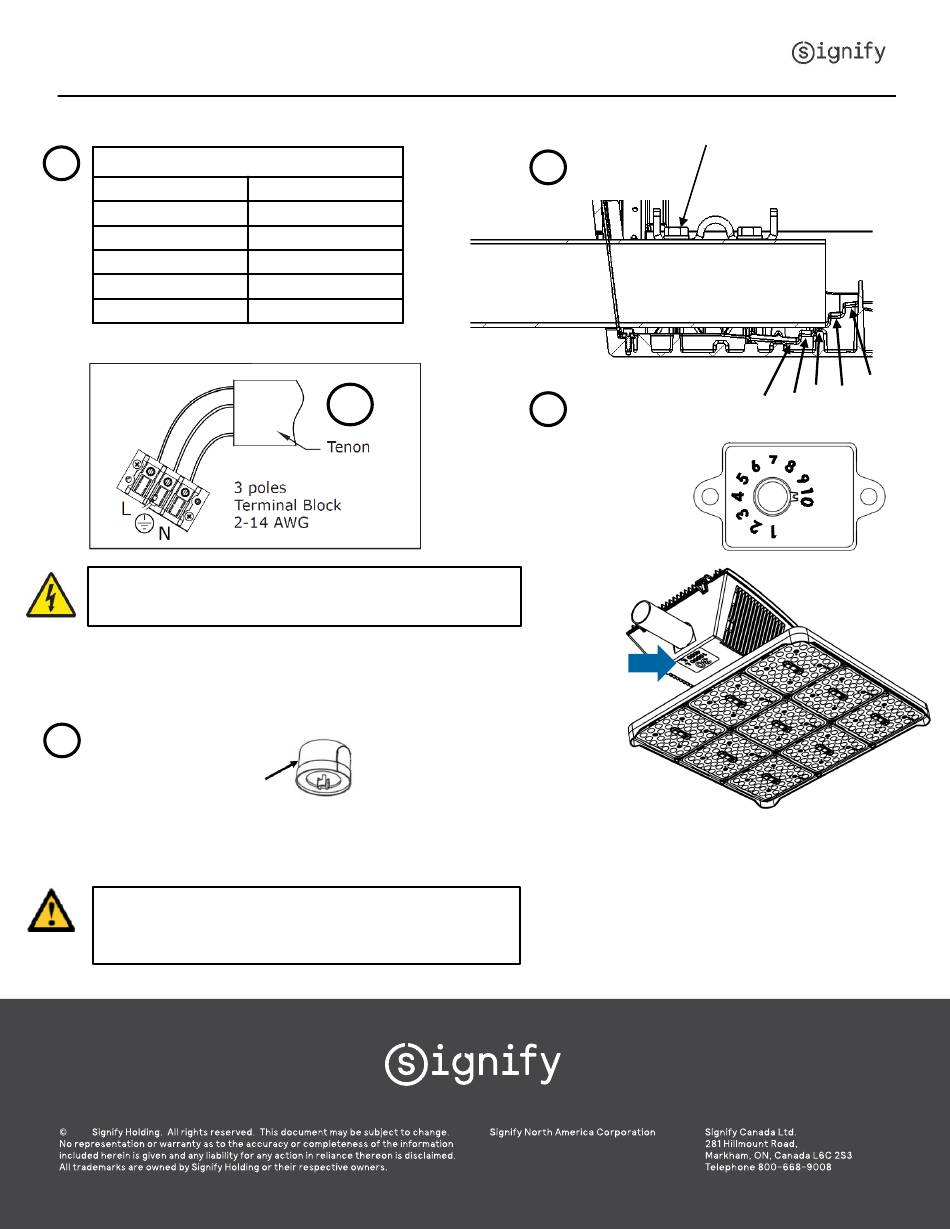

SIGNIFY LUMEC HighFocus Plus Installation Instruction page 3

HFP
2 Tenon penetration
Tilt angle:
-5.0⁰
-2.5⁰
0⁰
+2.5⁰
+5.0⁰
Tighten the bolts to 168 lbs.in (14 lbs.ft)
For safety reasons, the ground leads must always be
connected before any other leads.
8
A IP65 or IP66 rated
shorting cap, photo control
or other compatible device
must be installed
For safety reasons, this luminaire is designed to function
with a 2 3/8 inch outside diameter tenon only. FAILURE
TO DO SO VOIDS THE WARRANTY
2022
page 3
www.lumec.com
Installation Instructions
Penetration:
7-1/4''
6-7/8''
6-3/8''
6.0''
5-5/8''
4
If required, place
the supplied ANSI
sticker as shown
3
6
FAWS (option)
FCC Part 15 Class A Products FCC Markings
NOTE: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
CAN ICES-005 (A) / NMB-005 (A)
400 Crossing Blvd Suite 600
Bridgewater Township, NJ 08807
Telephone 732-563-3000
442295981861
Tenon bracket bolts (4x 3/8-16)
-5°
0° -2.5°
2.5°
5°
