READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLING THIS FIXTURE
CAUTION: THE ELECTRICAL POWER MUST BE DISCONNECTED BEFORE OPENING THE FIXTURE
FAILURE TO FOLLOW THE INSTALLATION DOCUMENTATION OR OPERATING THIS PRODUCT
OTHERWISE THAN FOR ITS INTENDED USE VOIDS THE WARRANTY

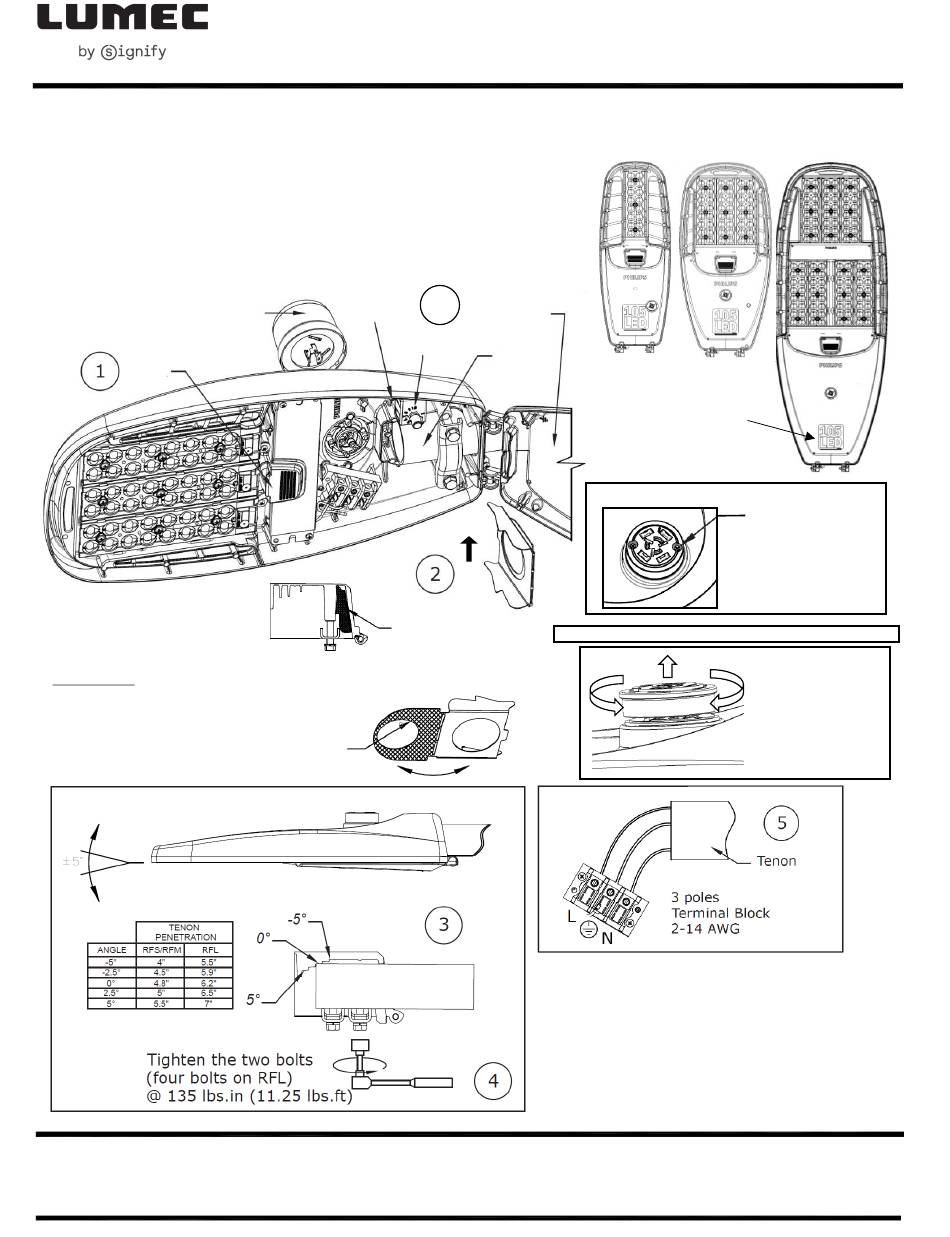

1.
Push the latch to release the access door
2.
Install the bird guard for ø1.9'' or ø1.66'' OD tenons before
sliding the fixture onto the tenon. See the important note below
3.
Disconnect power and slide the fixture onto the tenon. See table for
approximate penetration. Horizontal angle can be adjusted in 2.5° steps
A shorting cap, photo control
or other compatible device
must be installed
Latch
IMPORTANT: Install the bird guard for ø1.9" or ø1.66" OD tenons
FAILURE TO DO SO VOIDS THE WARRANTY
For ø1.9" tenon, unfold the bird guard
as shown and break away the smaller
diameter lid at the folding line

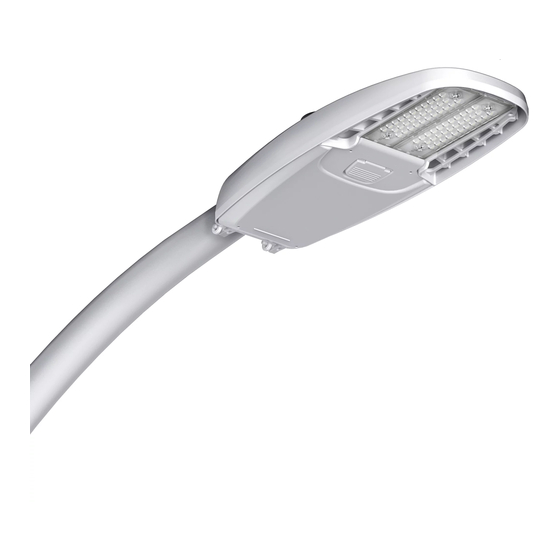

ROADFOCUS
RFS/RFM/RFL
INSTALLATION INSTRUCTIONS
Bubble
6
Level
Access door
FAWS
(option)
Tenon
Bird guard
installed location
www.lumec.com
RFS
RFM
If required, place
the supplied
ANSI sticker as
shown
If your fixture has screws on the receptacle
If your fixture doesn't have screws on the receptacle
4.
Evenly tighten the two bolts (4 on RFL) of
the bracket. IMPORTANT: Tighten the two
bolts at 135 lbs.in (11.25 lbs.ft)
5.
Connect the service leads to the
terminal block. Tighten the set-
screws between 20 and 25 lbs.in
6.
Set FAWS to position 10 if using other dimming
or controls
1/2
442294521841
RFL
To change the
orientation of the
socket, loosen the
two screws, orient
it and tighten both
screws
To change the
orientation of the
socket, just pull up
the receptacle and
rotate it directly
