Signify Classified - Internal
Read and understand these instructions before installing luminaire (fixture).
This luminaire is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at fuse box before proceeding. Allow fixture to cool
before handling. Retain these instructions for maintenance reference.

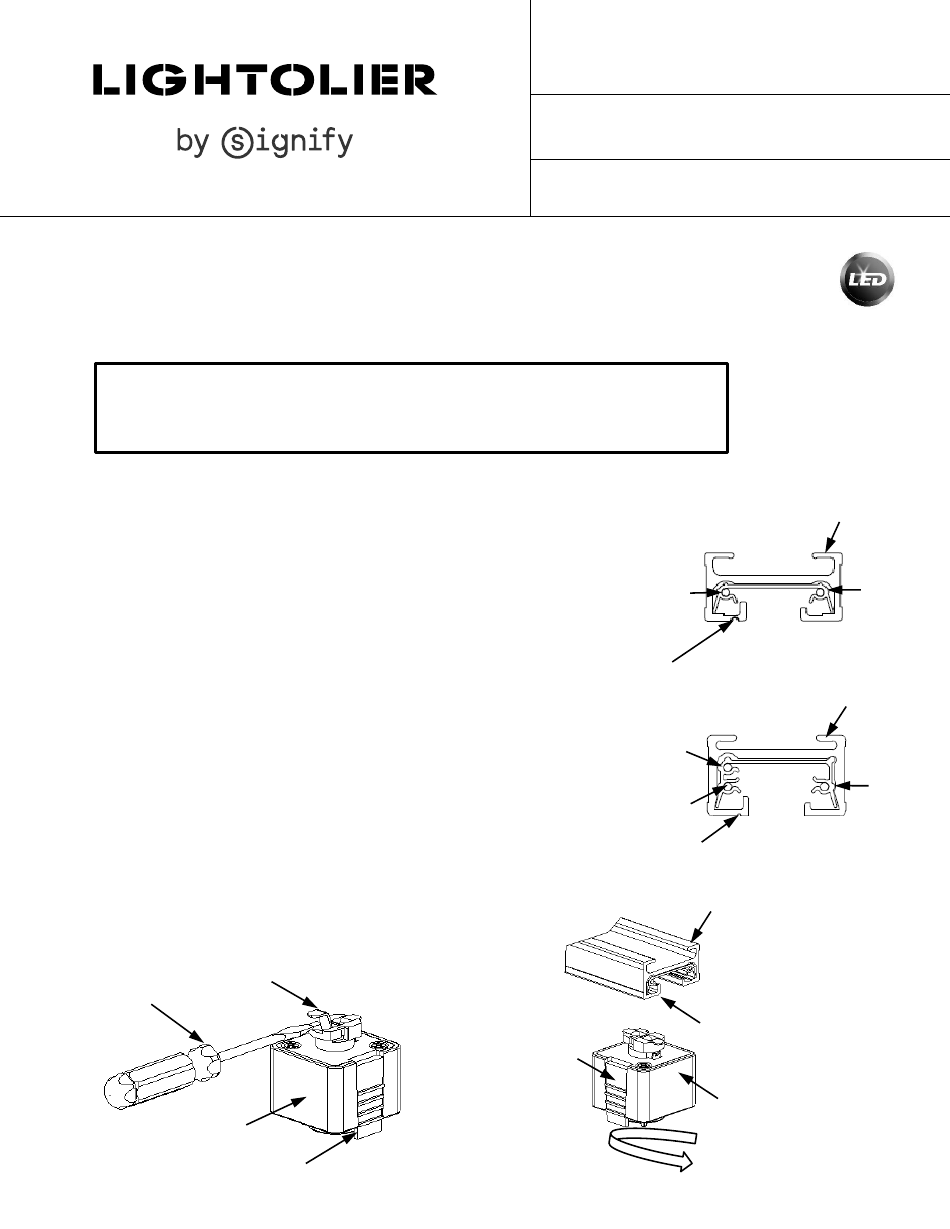

INSTRUCTIONS FOR INSTALLING AND OPERATING LWWJ20 AND LWWJ40 SERIES TRACK HEAD.
FOR USE WITH 120V JUNO T, TU AND R SERIES OR CON-TECH LT SERIES TRACK SYSTEMS ONLY
Con-Tech is a registered tracked mark of Conservation Technology L.L.C.
-
Compatible with ceiling mounted track..
-
Compatible with certain types of dimmers. See specification sheets for compatible dimmers.
-
Compatible with 81LV4 Louver and 81VZ4 Visor.
-
CAUTION: HOT SURFACE. Keep away from curtains and any other combustible materials.
-
CAUTION: Turn power off and allow fixture to cool before handling.
-
CAUTION: No consumer serviceable parts. Contact factory if service is required.
-
CAUTION: For use in dry locations only.

INSTRUCTIONS FOR ATTACHING LUMINAIRE TO TRACK.

1.
Turn off power to TRACK.
A. JUNO TRACK FIG. 1
1. Insert luminaire into TRACK. LOCKING TAB on ADAPTER on GROOVE side of track. FIG. 3
2. Rotate ADAPTER clockwise 90° until LOCKING TAB snaps into track. FIG. 3
3. TO REMOVE: Pull down on LOCKING TAB and rotate ADAPTER counterclockwise.
B. JUNO 2 CIRCUIT TRACK FIG. 2
TO POWER ON LOWER CIRCUIT:
1. Ensure CONTACTS are at the same level. Push down contacts if needed.
2. Follow instructions on page 1 for installing into track.
TO POWER ON UPPER CIRCUIT:
1. Raise MOVEABLE CONTACT (on the left side of the LOCKING TAB)
by using a FLAT HEAD SCREW DRIVER as high as stop permits. FIG. 4
2. Follow instructions on page 1 for installing into track.
MOVEABLE
FLAT HEAD
CONTACT
SCREW DRIVER
ADAPTER
1/28/2019
page
1
www.lightolier.com
Juno is a registered trademark of Juno Manufacturing Inc.
FIG. 4
LOCKING TAB

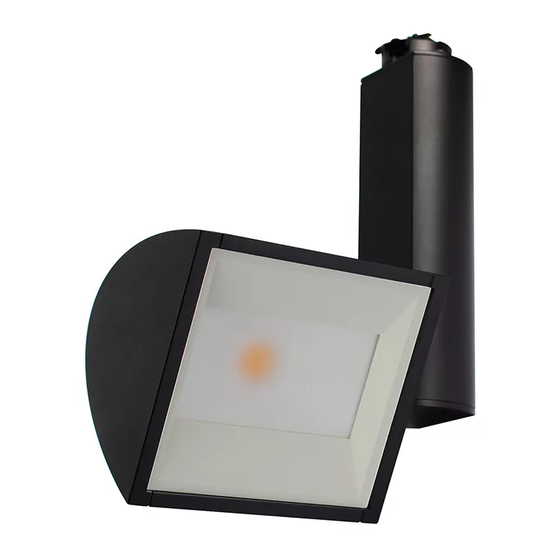

Track Lighting
LyteSpan BoldFlood
LWWJ Series
NEUTRAL
CIRCUIT
GROOVE
UPPER
CIRCUIT
LOWER
CIRCUIT
GROOVE
LOCKING
TAB
Fig. 3
TRACK
HOT
CIRCUIT
Fig. 1
JUNO TRACK
SINGLE CIRCUIT
TRACK
NEUTRAL
CIRCUIT
FIG. 2
JUNO TRACK
TWO CIRCUIT
TRACK
GROOVE
ADAPTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIGHTOLIER LyteSpan BoldFlood LWWJ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIGNIFY LIGHTOLIER LyteSpan BoldFlood LWWJ Series

  • Page 1 Signify Classified - Internal Track Lighting LyteSpan BoldFlood LWWJ Series Read and understand these instructions before installing luminaire (fixture). This luminaire is intended for installation in accordance with the National Electrical Code and local regulations. To assure full compliance with local codes and regulations, check with your local electrical inspector before installation.
  • Page 2 Signify Classified - Internal IS:LWWJ20/LWWJ40 LyteSpan BoldFlood INSTRUCTIONS FOR INSTALLING LOUVER 81LV4 : 1. Turn off power to TRACK. 2. First insert BOTTOM SPRINGS on the LOUVER into the BOTTOM GROOVE in the luminaire (Fig. 5 & 6) 3. While pushing down TOP SPRING TABS, rotate LOUVER toward the TOP GROOVE in the luminaire until it hits the FRONT STEP on the luminaire.
  • Page 3 Signify Classified - Internal IS:LWWJ20/LWWJ40 LyteSpan BoldFlood Bien lire et comprendre ces directives avant d’installer le luminaire (projecteur) Ce luminaire doit être installé en respectant les réglementations du Code électrique national et des codes locaux. Afin de bien respecter les codes et réglementations locaux, veuillez vérifier auprès de votre inspecteur électrique local avant d’installer. Pour prévenir les chocs électriques, veuillez couper l’alimentation au panneau avant de débuter.
  • Page 4 Signify Classified - Internal IS:LWWJ20/LWWJ40 LyteSpan BoldFlood DIRECTIVES POUR INSTALLER LE PARALUME 81LV4 : 1. Couper l’alimentation du RAIL. 2. Installer d’abord les RESSORTS INFÉRIEURS sur le PARALUME dans la RAINURE INFÉRIEURE du luminaire (Fig. 5 et 6) 3. Tout en appuyant vers le bas sur la LANGUETTE DU RESSORT SUPÉRIEUR, faire pivoter le PARALUME vers la RAINURE SUPÉRIEURE du luminaire jusqu’à...
