FireProtect 2 (CO) Jeweller User manual

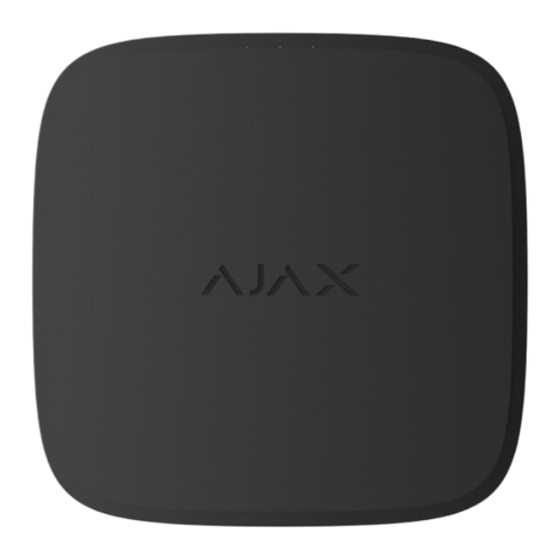

FireProtect 2 (CO) Jeweller is a wireless re detector with a built-in siren.
Designed for indoor installation. Detects dangerous CO (carbon monoxide) level.
The detector also can work without a hub.
It is available in two modi cations: with sealed batteries (has SB in the name)
that run 10 years, and with replaceable ones (has RB in the name) that run up to
7 years.
A list of compatible hubs and range extenders is
detector is compatible only with hubs on
The detector operates as part of the Ajax system, communicating with the hub
via the
Jeweller
secure radio protocol. The hub communication range is up to
1,700 meters without obstacles.
Buy FireProtect 2 (CO)
Updated August 4, 2023
available here
OS Malevich 2.15
. FireProtect 2 (CO)
and higher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FireProtect 2 (CO) Jeweller and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX FireProtect 2 (CO) Jeweller

Summary of Contents for AJAX FireProtect 2 (CO) Jeweller

  • Page 1 FireProtect 2 (CO) Jeweller User manual Updated August 4, 2023 FireProtect 2 (CO) Jeweller is a wireless re detector with a built-in siren. Designed for indoor installation. Detects dangerous CO (carbon monoxide) level. The detector also can work without a hub.

  • Page 2: Functional Elements

    Versions of the detector with other sensor combinations are also available. All Ajax re detectors are available here Functional elements 1. The front panel of the detector with a Test/Mute button . To activate the button, press the center of the panel.

  • Page 3: Operating Principle

    7. Siren. 8. Information about the detector’s end of life date. 9. Green LED indicator. 10. Yellow LED indicator. 11. Red LED indicator. Operating principle 00:00 00:12 FireProtect 2 (CO) is a wireless re detector designed for indoor installation. Available in two versions: With sealed batteries.
  • Page 4 . The tamper controls the removal of the detector from the SmartBracket mounting panel: the detector reacts with LED indication and sends noti cations to users in Ajax apps and the CMS. Ajax automation devices respond to FireProtect 2 alarms and perform user-...
  • Page 5 Тo activate the Test/Mute button, press lightly on the centre of the front panel with your hand. Use a suitable item (mop handle) if you can’t reach up the detector with your hand. Test/Mute is a mechanical button placed under the front panel of the detector.

  • Page 6: Adding To The System

    4. Make sure that the hub is on and has Internet access via Ethernet, Wi-Fi, and/or mobile network. You can do this in the Ajax app or by looking at the LED indicator of the hub: it should light up white or green.
  • Page 7 , rst connect the detector to the hub and then to the range extender. You can do this in the range extender settings in Ajax apps. How to connect FireProtect 2 to a hub 1. Open the Ajax app 2.
  • Page 8 Ajax apps. Autonomous operation mode FireProtect 2 detectors can be used autonomously without connecting to an Ajax hub. In this case, the detector noti es of dangerous CO level with only a built-in siren and LED indication .
  • Page 9 CO level drops below 50 ppm. You can also mute the alarm by pressing the Test/Mute button or in the Ajax The siren beeps in app. The alarm The red LED ashes 3 time with the LED Alarm by dangerous...
  • Page 10 Test/Mute button The alarm cannot be muted if the CO level exceeds 300 ppm. The detector stops The red LED ashes alarming as soon as Muted alarm. every 4 seconds. its source is eliminated. If the source of the The red LED ashes 2 alarm is removed, the Restore after alarm.
  • Page 11 Jeweller Signal Strength Test mode. All malfunctions are displayed in the States detector Ajax apps. Fields with malfunctions are The siren beeps in The yellow LED highlighted in red. time with the LED ashes 2 times in a Malfunction detected.

  • Page 12: Detector Testing

    Detector testing Functionality testing The test allows you to check the status of the detector’s sensors. You can run it in two ways: by pressing the Test/Mute button of the detector and in Ajax apps.
  • Page 13 To run the test using the Test/Mute button, press the center of the front panel and hold it for 1.5 seconds. To run the test in the Ajax app: 1. Open the Ajax app. 2. Select the hub if you have several of them or if you are using the Ajax PRO 3.
  • Page 14 The default value is 36 seconds. You can change the detector ping interval in the Jeweller (or Jeweller/Fibra) menu in the hub settings. Icons The icons show some of the detector states. You can view them in Ajax apps in the Devices tab.
  • Page 15 Malfunction detected. The list of malfunctions is available in the detector States The detector has tamper triggering events deactivated. Learn more States The states include information about the device and its operating parameters. You can see FireProtect 2 (CO) states in Ajax apps. To access them:...
  • Page 16 1. Open the Ajax app. 2. Select a hub if you have several of them or if you are using the Ajax PRO app. 3. Go to the Devices tab. 4. Select the device from the list. Parameter Meaning Air temperature in the room where FireProtect 2 is installed.
  • Page 17 Battery low — detector batteries are discharged. When the batteries are discharged, users and the CMS receive a noti cation. After the low battery noti cation, the detector is able to operate for another month under normal conditions. In case of an alarm, the battery charge is enough to ensure 4 minutes of the sound and LED indication operation.
  • Page 18 CMS with this number. Settings To change FireProtect 2 (CO) settings in the Ajax app: 1. Open the Ajax app. 2. Select the hub if you have several of them or if you are using the Ajax PRO 3.
  • Page 19 Room noti cations in the events feed. To change the room, click on the eld. Alert with a siren Ajax sirens When this option is enabled, the If CO detected connected to the system are activated when the detector registers a dangerous CO level.
  • Page 20 Learn more Opens FireProtect 2 User Manual in the Ajax User Guide app. Allows to deactivate the device without removing it from the system. Three options are available: No — the device operates in normal mode. Lid only — detector’s tamper triggering noti cations are disabled.

  • Page 21: Selection Of Installation Place

    1. Open the Ajax app. 2. Select the hub with FireProtect 2 detectors connected. 3. Go to: Hub → Settings → Service → Fire Detectors Settings. 4. Disable the Battery Life Optimization toggle. 5. Click Back to save the settings.

  • Page 22: Signal Strength

    Presence of barriers for radio signal passage between devices: walls, inter oor ceilings, large objects located in the premises. Consider the placement recommendations when designing your Ajax system for the object. The security system must be designed and installed by specialists.

  • Page 23: Installation

    Do not install the detector 1. Outdoors. This can lead to the detector failure. 2. In places with low or unstable Jeweller signal strength. This can result in the connection loss. 3. Inside premises with temperature and humidity outside the permissible limits.
  • Page 24 Use double-sided adhesive tape for temporary xation only. The device xed by the adhesive tape can peel off the surface at any time, which can lead to damage if the device is dropped. 3. Run the Jeweller Signal Strength Test .
  • Page 25 If the alarm was silenced by the Test/Mute button (for CO level under 300 ppm), check the CO level at the Ajax app. If it is safe to enter the premises, press the Test/Mute button again to check the CO level.
  • Page 26 Blocked or damaged vents or chimneys/ ues. The tightness of rooms where appliances for burning fuel or replaces are installed. Bad ventilation in rooms with portable gas/para n heaters. IMPORTANT: A CO alarm should not be used as a substitute for proper installation, use, and maintenance of fuel-burning appliances, including appropriate ventilation and exhaust systems.
  • Page 27 Malfunctions If FireProtect 2 malfunction is detected (for example, there is no connection with the hub), the malfunction counter is displayed in the device eld in the Ajax apps. All malfunctions are displayed in the detector States .

  • Page 28: Maintenance

    We recommend running a self-test periodically to familiarize people with the alarm sound and LED indication. FireProtect 2 devices connected to the Ajax hubs generally do not require routine testing. All connected devices are constantly monitored for possible Faults, Low battery, and EOL signals.
  • Page 29 Ensure the batteries are installed with the correct polarity. The polarity is marked inside the enclosure. Please run a self-test with Ajax apps or by pressing the Test/Mute button after the batteries are replaced to check the correct operation of the detector.

  • Page 30: Technical Speci Cations

    Situations to avoid whenever possible Situation Possible consequences Sensor failure because of the exposure to silicone adhesives, hair Exposure to silicone vapors grooming materials, or silicone rubber/putty. The clog of gas diffusion route or deterioration of the sensing Dew condensation membrane.

  • Page 31: Warranty

    Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support rst. In most cases, technical issues can be resolved remotely.
