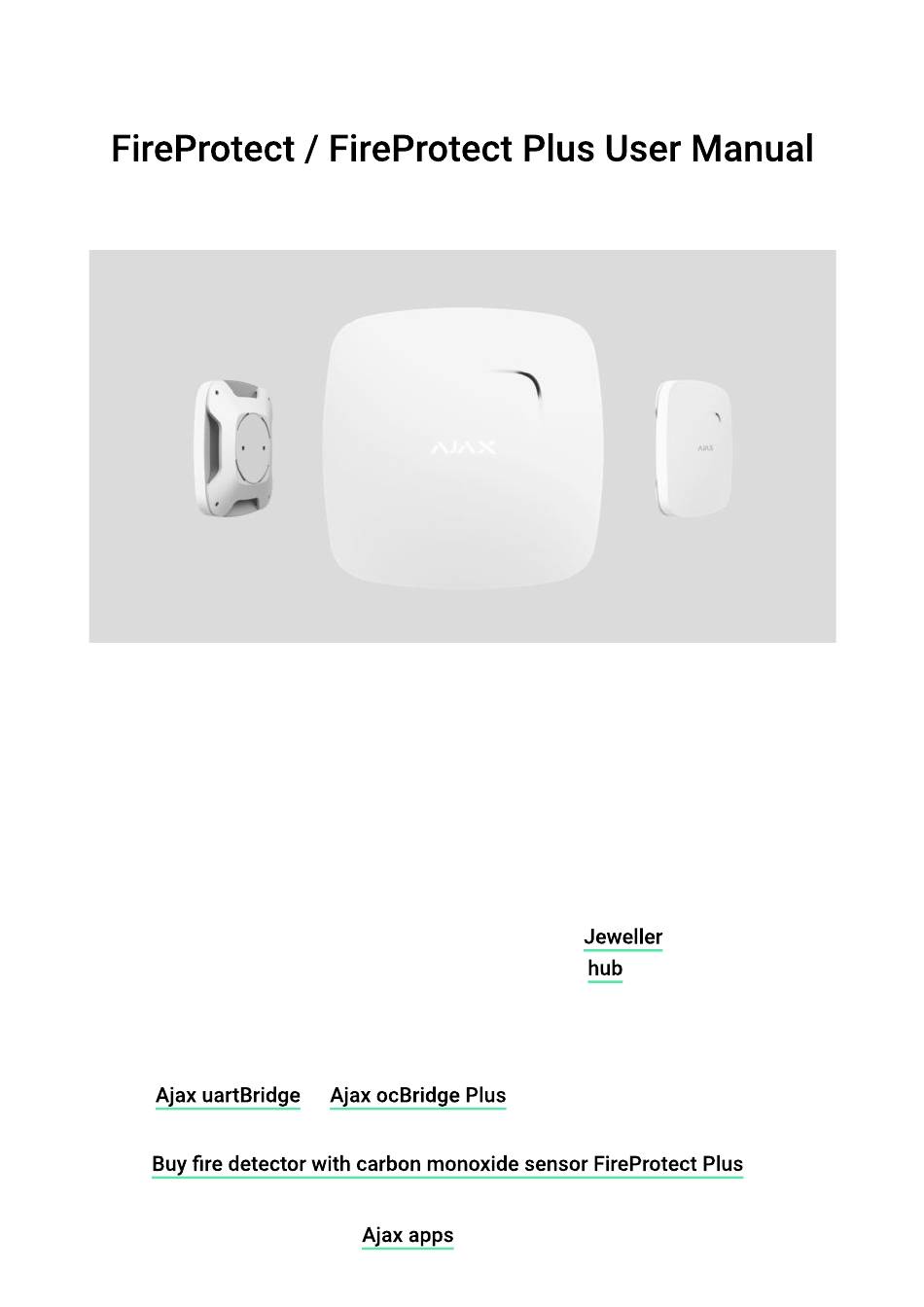

Updated April 22, 2021

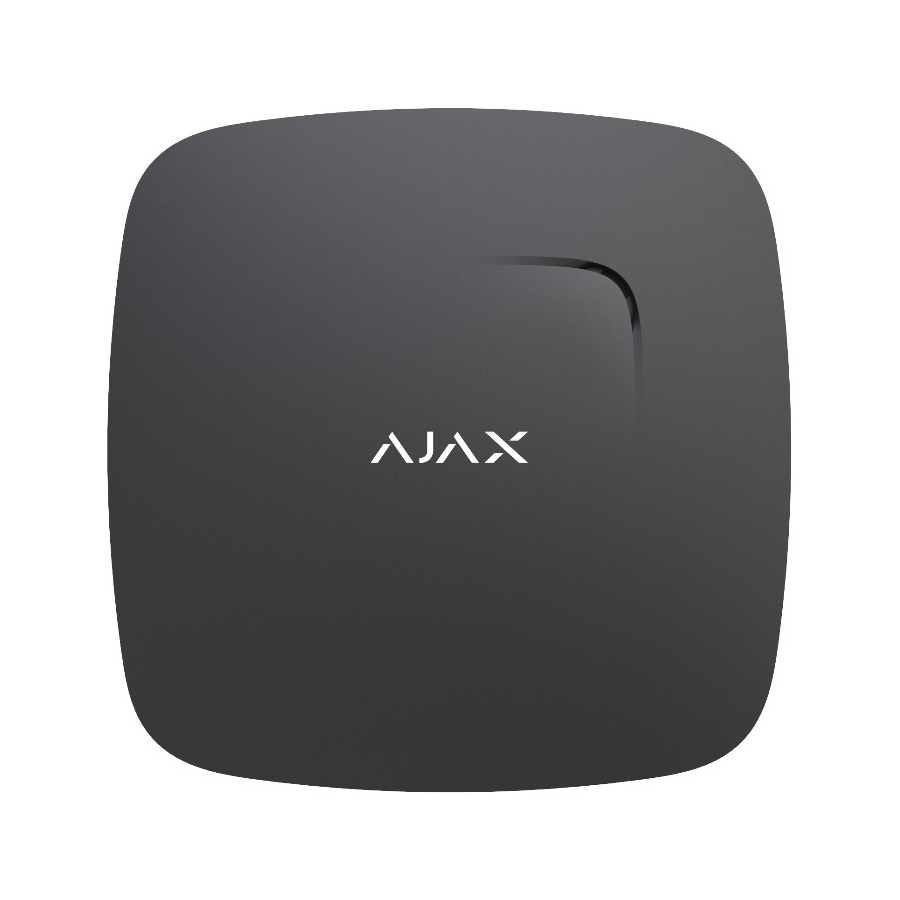

FireProtect
(FireProtect
Plus) is a wireless indoor fire detector with an in-built
buzzer and a battery, ensuring up to 4 years of autonomous operation.
FireProtect can detect smoke and rapid temperature increase.
Aside from these functions, FireProtect Plus additionally can alert of dangerous
CO level. Both detectors can function independently from the hub.
Connecting to the Ajax security system via a secured
radio protocol,
FireProtect
(FireProtect
Plus) communicates with the
at a distance of up to
1,300 m in line of sight.
The detector can be a part of third-party security systems, connecting to them
via the
or
integration module.
The detector is set up via the
for iOS, Android, macOS, and Windows.
The system notifies the user of all events through push notifications, SMS, and
calls (if activated).

Advertisement

loading
Need help?

Need help?

Do you have a question about the FireProtect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX FireProtect

Summary of Contents for AJAX FireProtect

  • Page 1 4 years of autonomous operation. FireProtect can detect smoke and rapid temperature increase. Aside from these functions, FireProtect Plus additionally can alert of dangerous CO level. Both detectors can function independently from the hub.
  • Page 2 The Ajax security system can be connected to a central monitoring station of a security company. 1. Siren hole 2. Light indicator (acts as the sensor and Test button) 3. Smoke chamber hole with the temperature detector behind the net 4.
  • Page 3 The life span of the FireProtect Plus detector lasts up to 7 years (up to 10 years for the ). In the event of a detector failure, you will receive a corresponding notification — it will need to be replaced or submitted for FireProtect Plus has an additional sensor to detect a dangerous CO level.
  • Page 4 Please note that for this to work you need to priorly select Mute Interconnected Fire Alarm command for this button in the KeyPad settings. If smoke and/or temperature levels do not restore to normal values, in 10 minutes, the FireProtect/FireProtect Plus turns on the siren again.
  • Page 5 Only users with administrator rights can add the device to the hub Pairing the detector with hub: 1. Select Add Device in the Ajax app. 2. Name the device, scan or type the QR Code (located on the detector body and packaging), and select the location room.
  • Page 6 The smoke detector always operates in the active mode. When connecting FireProtect to third party security systems, it is appropriate to place it in a permanently active protection zone.
  • Page 7 2. FireProtect | FireProtect Plus Parameter State Temperature of the device. Measures on the Temperature device processor and changes gradually Signal strength between the hub and the Jeweller Signal Strength detector Connection status between the hub and the Connection device Battery level of the device.
  • Page 8 1. Devices 2. FireProtect | FireProtect Plus 3. Settings Setting Value First field Device name, can be edited Selecting the virtual room to which the device is Room assigned Dangerous CO Level Alarm (FireProtect Plus If active, the detector alerts of exceeding the...
  • Page 9 5. Go to the Fire detectors settings menu and activate the Interconnected FireProtect Alarms option Interconnected alarms are supported by FireProtect and FireProtect Plus detectors with firmware versions 3.42 and later. Please note that when you turn on the interconnected alarms, you cannot set the hub–detector ping interval (Jeweller settings) of more than 48...
  • Page 10 The function works as follows: 1. One of the FireProtect/FireProtect Plus detectors detects an alarm. 2. Delay of Interconnected Alarms starts. 3. The built-in siren of the fire detector informs the alarm. Users receive notifications in the Ajax app (if are enabled).
  • Page 11 00:00 00:14 During the delay of the interconnected alarms, the triggered detector reports a different type of alarm (for example, the detector report the exceeding of the temperature threshold after a smoke alarm). 00:00 00:13 During the interconnected alarm delay, another fire detector in the system raised an alarm.
  • Page 12 Through Ajax apps. By pressing the KeyPad function button (in the interconnected fire alarm muting mode). By pressing the Button in the interconnected fire alarm muting mode. By eliminating the cause of the alarm (fire detectors at the facility no longer detect an alarm).
  • Page 13 7. If necessary, activate the Ignore First Alarm option. This setting is recommended for premises with potential sources of false alarms. For example, if the device is installed in a place where dust or steam can get into the detector. The option functions as follows: 1.
  • Page 14 (the logo center) for a few seconds – the detector will test the smoke chamber with electronic simulation of smoke generation and then will switch on the siren for 6 seconds. You will receive the notification in the Ajax app regarding the test result and detector status.
  • Page 15 of signal reception. Check the Jeweller signal level at the installation location If the detector has low or unstable signal strength even after moving, use a Install the detector at the ceiling in the highest point where hot air and smoke are concentrated in case of fire.
  • Page 16 Use double-side adhesive tape only for temporary attachment of the detector. The tape runs dry with time, which can cause falling, false triggering, and detector malfunction. 2. Put the detector on the attachment panel by turning it clockwise on SmartBracket. When the detector is fixed in SmartBracket, it blinks with LED, signaling that the tamper is closed.
  • Page 17 In case of autonomous use, the detector notifies of the detected fire/smoke with the siren sound and light of the logo. To switch off the siren, press the logo (there is a sensor button) or eliminate the cause of the actuated alarm. Check the operational capability of the detector regularly.
  • Page 18 +59°С ±2°С Tamper protection 868.0 – 868.6 MHz or 868.7 – 869.2 MHz Frequency band depending on the region of sale Operates independently or with all Ajax Compatibility Maximum RF output power Up to 20 mW Radio signal modulation GFSK...
  • Page 19 4. Battery CR2032 (pre-installed) — 1 pcs 5. Installation kit 6. Quick Start Guide Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery.
