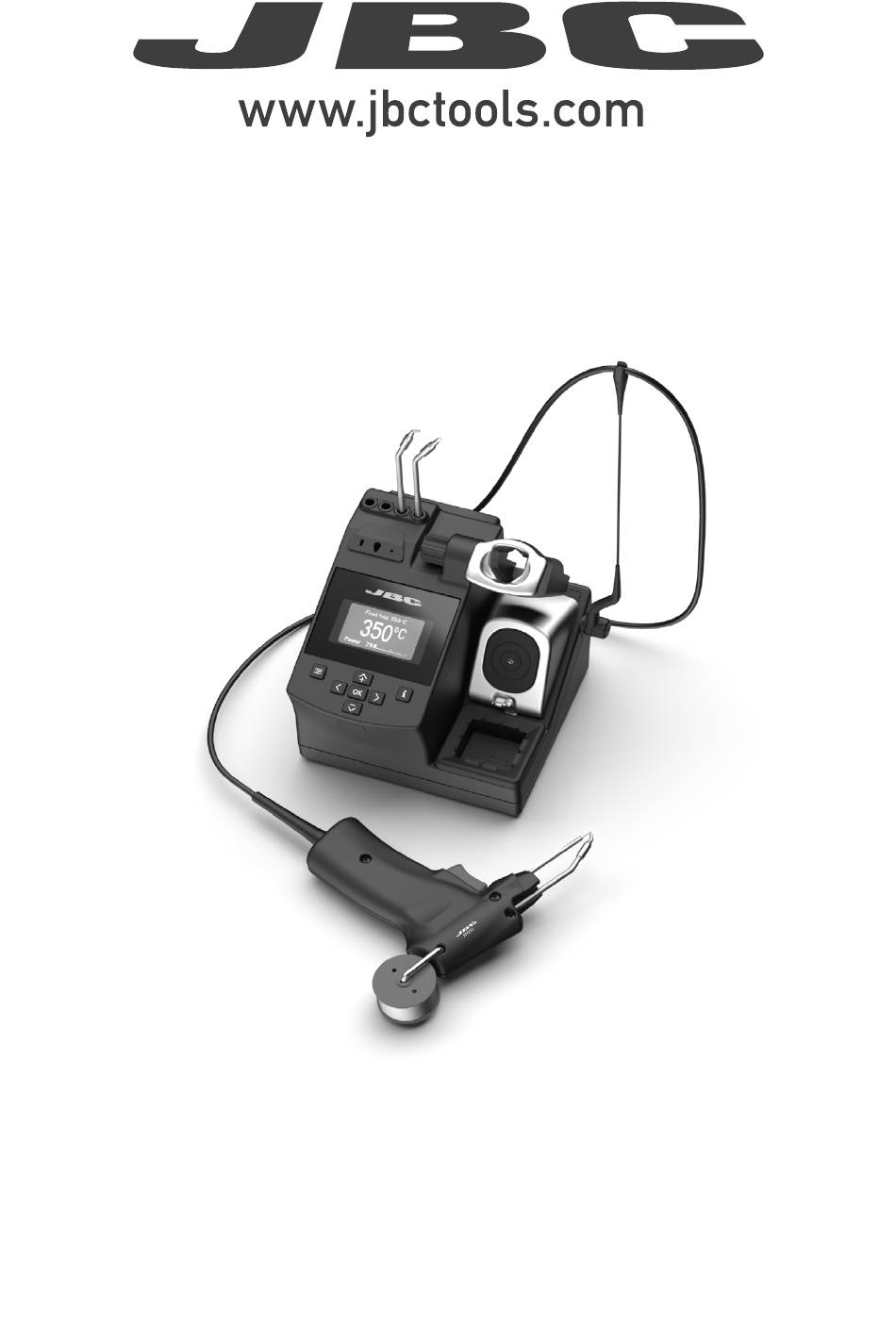

- Page 1 INSTRUCTION MANUAL Manual-Feed Soldering Station...
- Page 2 This manual corresponds to the following references: CA-1QF (120V) CA-2QF (230V) CA-9QF (100V) Packing List The following items are included: Manual-Feed Manual-Feed Feeder Nozzle Soldering Station ..1 unit Soldering Iron ....1 unit Ø 1.5mm ......1 unit Ref. AP250-A Ref.
- Page 3 w w w.jbctools.com Features and Connections Adjustable Adjustable Tool Holder Cable Collector Cartridge Holder Tip Aligner Screen Tip Cleaner with Antisplash Membrane (Brass Wool inside) Wiper AP250 Manual-Feed Soldering Iron Equipotential Connection Main Switch Earth Fuse Fuse USB-B Connector Power Socket Fume Extractor Connector...
- Page 4 Leaves a small layer of solder on the tip preventing oxidation between cleaning and rewetting. If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder. Wiper Ref. CL7984 A temperature-resistant receptacle for removing...
- Page 5 w w w.jbctools.com Removing the Splashguard 1. Unlock the splashguard. 2. Lift off. Lock More cleaning options: Inox Wool Metal Brush CL6205* CL6220* Stronger cleaning method When used carefully, it than brass wool. provides more thorough cleaning. Wiper Sponge CL7984 S0354 Tapping: Wiping:...
- Page 6 R560 Changing Cartridges To change a catridge safely, unplug the tool or turn off the station before following these guide- lines. 1. Removing 2. Inserting Mark P250 Loosen the screw and remove the cartridge. Important: Insert the cartridge as far as the Use PLR195 pliers if still hot.
- Page 7 w w w.jbctools.com Compatible Cartridges The CA stations work with C250 cartridges and AP250 Solder Feed Irons. Find the model that best suits your soldering needs in www.jbctools.com ø 3,5 1,8x0,8 ø 1,5 Bevel Conical Bent Chisel Chisel Bent Replacing Solder Wire 1.
- Page 8 Changing Feeder Nozzle Unplug the tool or turn off the station before following these guidelines 1. Unscrew the rear screw, than remove the reel and the solder wire from the nozzle. AP250 2. Unscrew the two screws on the other side of the solder feeder.
- Page 9 w w w.jbctools.com 4. Take out the feeder nozzle and replace it with the new one while holding the three components, identified in the picture, in place. AP250 Reassemble the cover and tighten the three screws. Feeder Nozzle Note: Do not disassemble these 3 components and it is imperative to hold them in its place.
- Page 10 Operation The JBC Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases by 5. 1. Work 2. Sleep 3.
- Page 11 w w w.jbctools.com Control Process Work Screen Displays a specific fixed temp. Fixed temp. 3 5 0 3 5 0 Shown when you have selected Levels ºC 2 7 0 2 7 0 3 5 0 3 5 0 4 0 0 4 0 0 temp.
- Page 12 (e. g. riveting). (e.g. multilayered or high Min. temp. by default is 200ºC dissipation boards), JBC (392ºF). This is considered to strongly recommends using be a proper starting point for other aids like preheaters.
- Page 13 w w w.jbctools.com Tool Settings Parameter Description Recommendations Warnings Ideal for soldering more than Fix One Temperature Fix a value within the one component at a specific temperature range of the temperature. The station will station (90-450ºC/190-840ºF). reject any attempt to change the temperature.
- Page 14 Set values within ±50°C It provides a more precise (± 90°F) to achieve zero error. When the user changes adjustment between the JBC strongly recommends the cartridge type, the selected temperature and the the use of TID-A or TIA-A parameter should be reset actual one.
- Page 15 Update the station software via USB connection: Cable USB A-B Updater JBC Web Manager Lite www.jbctools.com/manager.html Manage and monitor as many stations as your PC can handle by using JBC Web Manager Lite. Data can be exported to another PC. any JBC station Cable USB A-B...
- Page 16 - Periodically check all cables and tubes. - Replace any defective or damaged pieces. Only use original JBC spare parts. - Repairs should only be performed by a JBC authorized technical service. EARTH When this warning appears on the main FUSE screen earthing fuse must be replaced.
- Page 17 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 18 Notes...
- Page 19 w w w.jbctools.com Specifications Manual-Feed Soldering Station Ref.: CA-1QF 120V 50/60Hz. Input fuse: T2A. Output: 23.5V. Ref.: CA-2QF 230V 50/60Hz. Input fuse: T1A. Output: 23.5V. Ref.: CA-9QF 100V 50/60Hz. Input fuse: T2A. Output: 23.5V. - Output Peak Power CA-F: 130 W - Temperature Range: 90 - 450 °C / 190 - 840 °F - Idle Temp.
- Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
