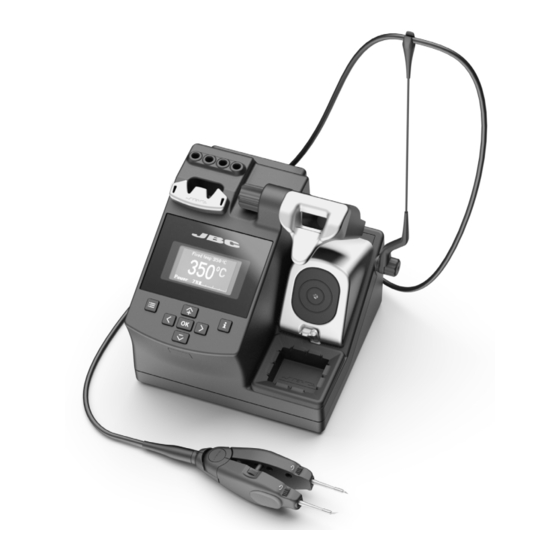

jbc CP-QF Instruction Manual

Compact micro tweezers station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.jbctools.com

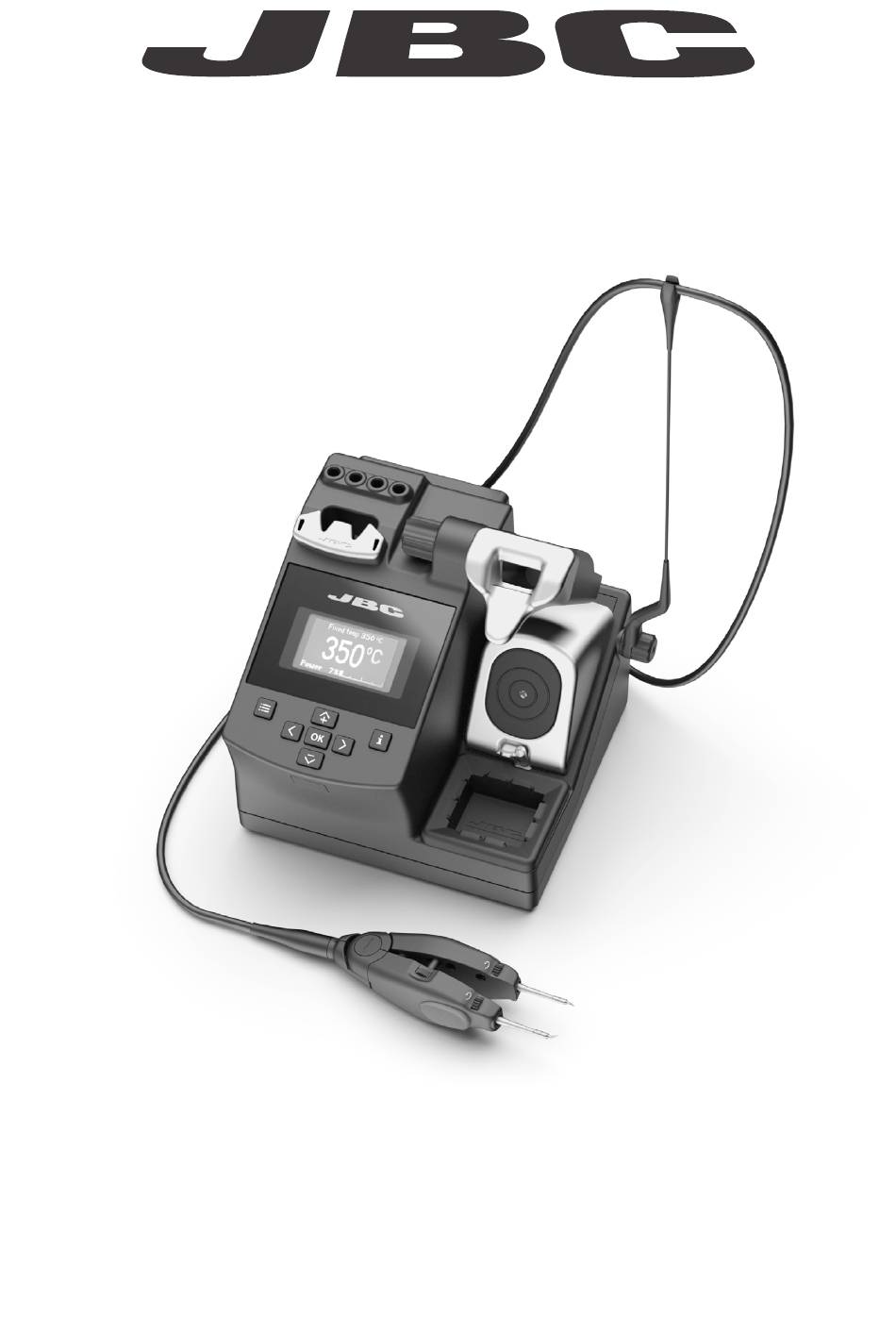

INSTRUCTION MANUAL
Compact
Micro Tweezers Station
Ref. CP-QF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-QF and is the answer not in the manual?

Questions and answers

Related Manuals for jbc CP-QF

Summary of Contents for jbc CP-QF

  • Page 1 INSTRUCTION MANUAL Compact Micro Tweezers Station Ref. CP-QF...

  • Page 2: Packing List

    Packing List The following items are included: CP Control Unit ......... 1 unit Adjustable Micro Tweezers ....1 unit Ref. CP-1F (120V) Ref. AM120-A CP-2F (230V) CP-9F (100V) Power Cord ........... 1 unit Brass Wool ............ 1 unit Ref. 0023715 (120V) Ref.
  • Page 3 w w w.jbctools.com Features Cable Collector Adjustable Stand: Intelligent Heat Management Cartridge Storage Quick Tip Changer Process Screen Tip Cleaner Brass Wool with Antisplash Membrane and Wiper Adjustable Micro Tweezers Ref. AM120-A Equipotential Connection Main Switch Earth Fuse Fuse USB-B Connector Power Socket Fume Extractor Connector...

  • Page 4: Adjustable Stand

    If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder. Wiper Ref. CL0160 A temperature resistant receptacle for removing...

  • Page 5: Removing The Splashguard

    w w w.jbctools.com Removing the Splashguard 1. Unlock the splashguard. 2. Lift off. Lock More cleaning options (not supplied): Inox Wool Metal Brush Ref. CL6205 Ref. CL6220 Stronger cleaning When used carefully, method than brass it provides a more wool. thorough cleaning.

  • Page 6: Changing Cartridges

    Changing Cartridges 1. Removing 2. Positioning Place the cartridges in the extractor and pull Place the tweezers on top of the new cartridge to remove the cartride. and press down slightly. 3. Inserting Use the holes for fixing the cartridges *Important It is essential to insert the cartridges as far as the mark for a proper connection.

  • Page 7: Compatible Cartridges

    w w w.jbctools.com 4. Rotational Cartridge 5. Vertical Cartridge Alignment Alignment Slightly turn the wheels to align Close the tweezers and the rear wheel allows the cartridges to the cartridges as required. be equally aligned en vertical direction. TOOL Compatible Cartridges TOOL The CP stations work with C120 cartridges and AM120 Ajustable Micro Tweezers.

  • Page 8: Operation

    Operation The JBC Exclusive Heating System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases by 5. 1. Work 2. Sleep 3. Hibernation...

  • Page 9: Control Process

    w w w.jbctools.com Control Process Work Screen Displays a specific fixed temp. Fixed temp. 3 5 0 3 5 0 Shown when you have selected Levels ºC 2 7 0 2 7 0 3 5 0 3 5 0 4 0 0 4 0 0 temp.

  • Page 10: Station Settings

    (e. g. riveting). (e.g. multilayered or high Min. temp. by default is 200ºC dissipation boards), JBC (392ºF). This is considered to strongly recommends using be a proper starting point for other aids like preheaters.

  • Page 11: Tool Settings

    w w w.jbctools.com Tool Settings Parameter Description Recommendations Warnings Fix One Temperature Ideal for soldering more than Fix a value within the one component at a specific temperature range of the temperature. The station will station (90-450ºC/190-840ºF). reject any attempt to change the temperature.
  • Page 12 Set values within ±50°C It provides a more precise (± 90°F) to achieve zero error. When the user changes adjustment between the JBC strongly recommends the cartridge type, the selected temperature and the the use of TID-A or TIA-A parameter should be reset actual one.

  • Page 13: Usb Connector

    Update the station software via USB connection: Cable USB AB Updater JBC Web Manager www.jbctools.com/manager.html Manage and monitor as many stations as your PC can handle by using the JBC Web Manager. You can export data to another PC. any JBC station Cable USB AB...

  • Page 14: Maintenance

    2. Insert the new fuse into the fuse holder and return it to the station. EARTH TOOL When this warning appears on the FUSE main screen Earthing Fuse must be replaced - Repairs should only be performed by a JBC authorized technical service. TOOL...
  • Page 15 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
  • Page 16 Notes...
  • Page 17 w w w.jbctools.com Notes...
  • Page 18 Notes...

  • Page 19: Specifications

    w w w.jbctools.com Specifications CP-1QF 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CP-1F CP-2QF 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. Control Unit model: CP-2F CP-9QF 100V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CP-9F - Output Peak Power CP-F: - Temperature Range: 90 - 450 °C / 190 - 840 °F...
  • Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.

This manual is also suitable for:

Ca-1qf 1Ca-2qfCa-9qf
