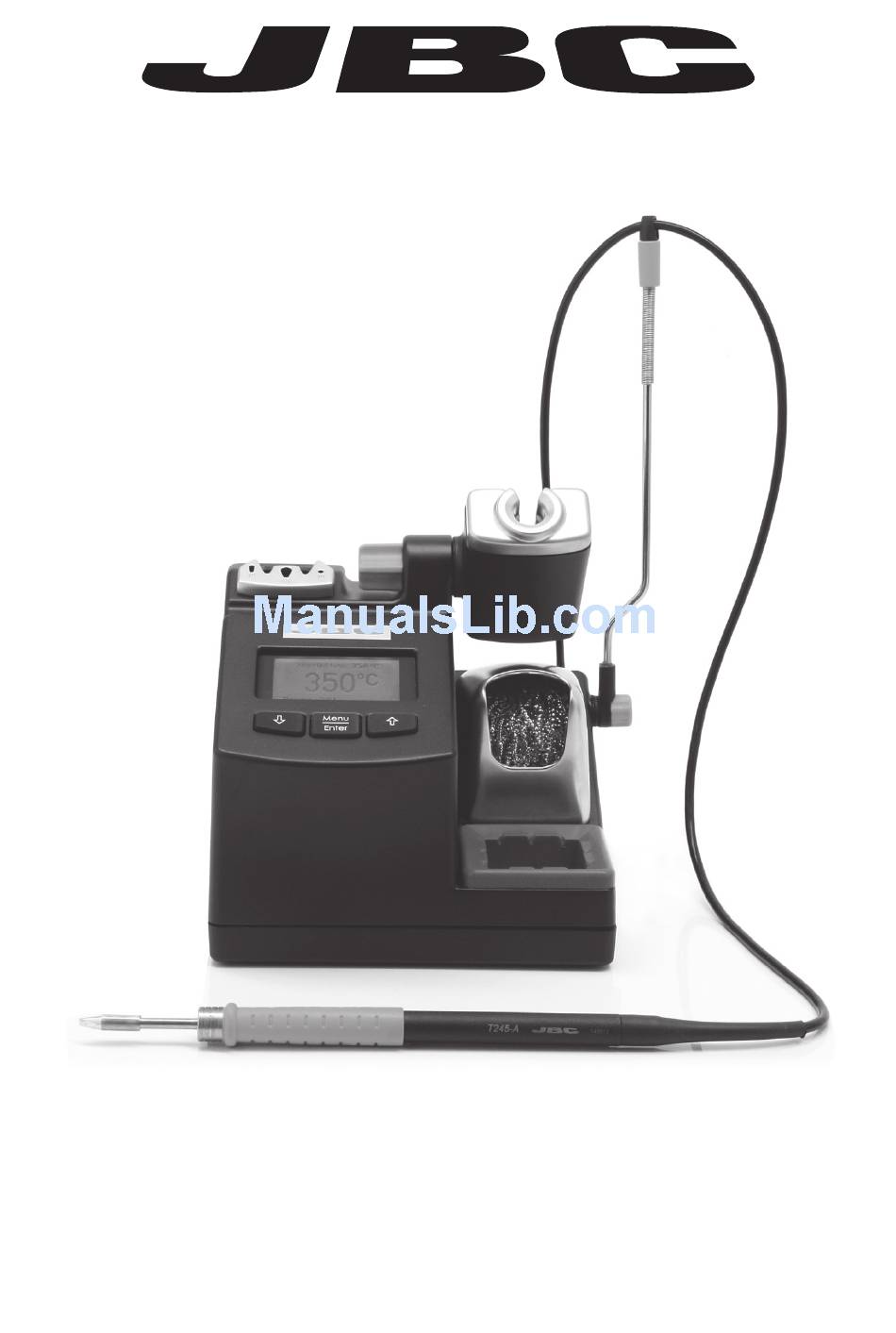

- Page 1 www.jbctools.com CD-1BC/2BC/9BC SOLDERING STATION...
-
Page 2: Soldering Station
CD-1BC/2BC/9BC - SOLDERING STATION SAFETY It is imperative to follow safety guidelines to protect health and prevent electric shock, injury, fire or explosions. - The mains cable must be plugged into approved bases. - The tool should be placed in the stand when not in use. This way the sleep mode will be activated. - The soldering tip and the metal part of the tool may still be hot even when the station is turned off. - Page 3 CD-1C / CD-2C / CD-9C T245-A Control Unit Handpiece C245903 C245741 CL6210 Brass Wool Cartridges MANUAL S0354 Sponge Power Cord w w w.jbctools.com CD-1BC/2BC/9BC SOLDERING STATION...
-
Page 4: Installation
CD-1BC/2BC/9BC - SOLDERING STATION INSTALLATION CONTROL UNIT T245-A Handpiece Main switch Fuse Power Cord Socket USB-B connector to PC: Equipotential connection - Update station software - Create graphs of the soldering process Cable collector - Manage and monitor parameters via PC PART NAMES Intelligent Heat Management Quick Tip Changer... -
Page 5: Adjustable Stand
ADJUSTABLE STAND The tool stand is easily adjustable. Loosen the tightening knob to adjust the position. CABLE COLLECTOR Loosen the tightening knob to adjust the Slide the green piece down to place the wire. position of the cable collector. - Page 6 CD-1BC/2BC/9BC - SOLDERING STATION CLEANING OPTIONS Full set of clean option: sponge, metal wool and brush S0331 Sponge S0354 Sponge The smoothest cleaning method. The sponge has to be kept wet (not soaked) using distilled water. CL6205 Inox Wool CL6220 Brushes Provides a deeper cleaning on the tip.
- Page 7 CARTRIDGE RANGE ø 3,5 ø 1 ø 1,5 C245 cartridge range is the widest one of JBC with many shapes, sizes and special models. They are appropriate for general soldering purposes and they are perfect for both SMD components or for applications with high power requirements such as ground plane soldering.
- Page 8 CD-1BC/2BC/9BC - SOLDERING STATION HANDPIECE T245-A Handpiece These handpieces are perfect for both SMD components and for jobs with high power requirements. Use C245 cartridge range ACCESSORIES F3449 Fume Extractor (not included) Easily clips onto the handpiece and can be quickly removed for easy maintenance.
-
Page 9: Control Screen
CONTROL SCREEN Selected temp. 3 5 0 Tip temperature P o w e r 1 0 % % Instant power supplied to the tool Decrease & Increase & move up move down Access Menu & Confirm Selection SETTINGS MENU Original PIN: 0105 M a i n m e n u Exit Reset settings... -
Page 10: Heat Management
CD-1BC/2BC/9BC - SOLDERING STATION HEAT MANAGEMENT JBC stations intelligently manage the tool temperature and it helps to extend the tip life: Expected life (hours)* Temp (ºC) Sleep Working Temp Temp Work mode: Lift tool from the stand and the tool tip heats up to the selected temperature. -
Page 11: Maintenance
REPAIR - Repairs should be performed only by a JBC’s authorized technical service. - JBC offers you a professional after-sales service for your equipment. - Use original JBC spare parts only. Otherwise this may lead to accidents. -
Page 12: Technical Specifications
- Safety transformer, mains separator and double isolation. - CD-1BC 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CD-1C - CD-2BC 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. Control Unit model: CD-2C - CD-9BC 100V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CD-9C - Total unit weight: 2,6 Kg.
