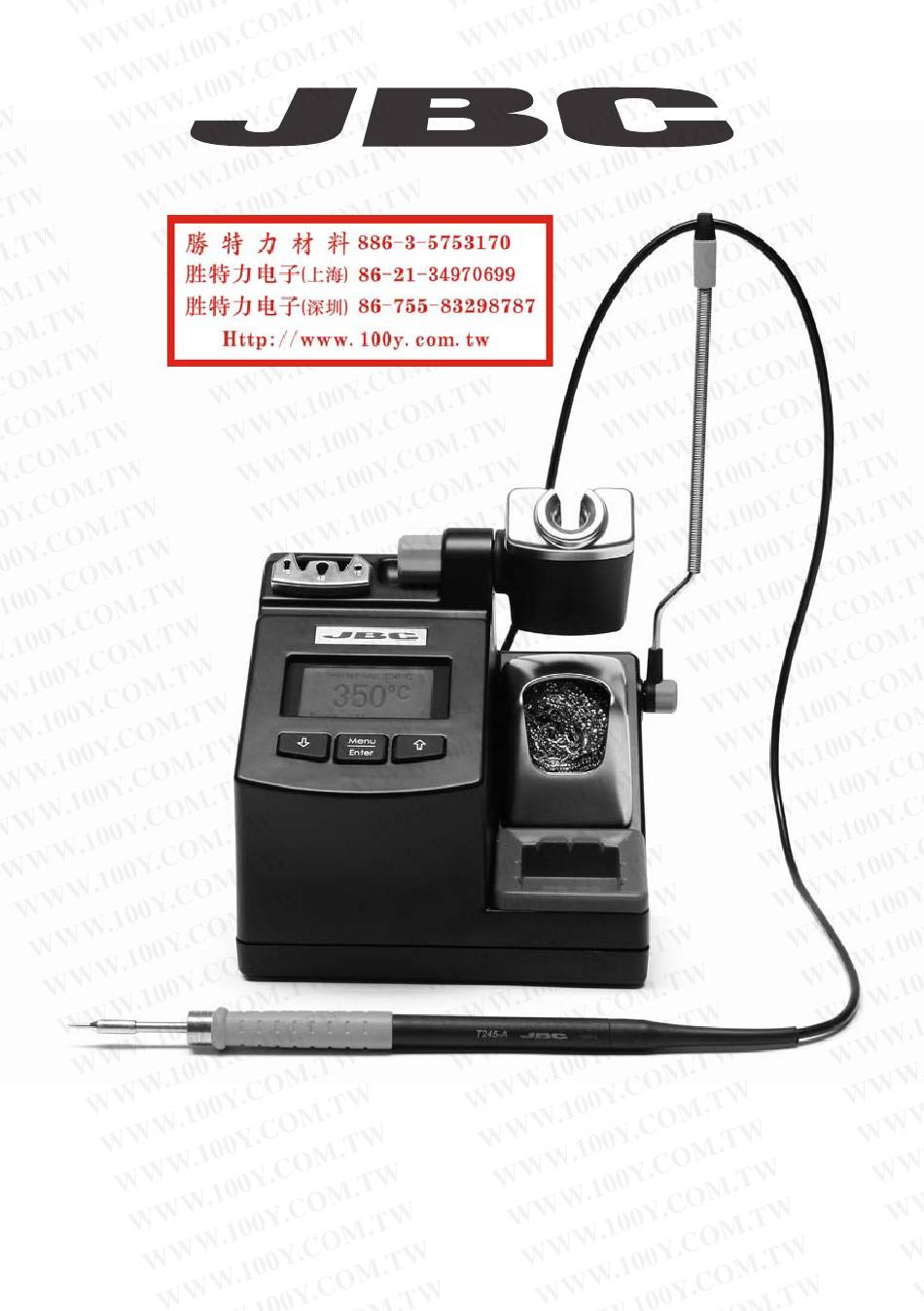

- Page 1 SOLDERING STATION...
-
Page 2: Soldering Station
CD / SOLDERING STATION CONTROL UNIT SUPPLIED WITH SUPPLIED WITH CD-2SC / CD-1SC / CD-9SC CD-2BC / CD-1BC / CD-9BC T210-A T245-A SOLDERING IRON SOLDERING IRON CL6210 Brass Wool C210001 C245903 C210008 C245741 CARTRIDGES CARTRIDGES S0354 Sponge MANUAL MANUAL POWER CORD w w w.jbctools.com... -
Page 3: Installation

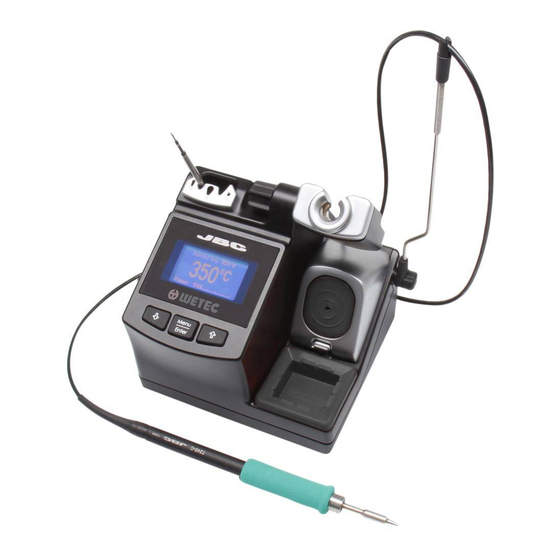

INSTALLATION CONTROL UNIT T210-A or T245-A SOLDERING IRON Main switch Power Cord Socket USB connector to PC: Equipotential connection - Update station software - Create graphs of the soldering process - Manage and monitor parameters via PC PART NAMES Cable collector Smart stand Cartridge extractor Friendly display control... -
Page 4: Adjustable Stand
ADJUSTABLE STAND CABLE COLLECTOR... -
Page 5: Cleaning Options
CLEANING OPTIONS Full set of clean option: sponge, metal wool and brush S0331 Sponge S0354 Sponge The smoothest cleaning method. The sponge has to be kept wet (not soaked) using distilled water. CL6205 Inox Wool CL6220 Brushes Provides a deeper cleaning on the tip. More agressive on the tip than the wool. -
Page 6: Heat Management
Push gently and place a new one HEAT MANAGEMENT Expected life (hours)* JBC stations intelligently manage the tool temperature and it helps to extended the tip life: Work mode: Lift tool from the stand and the tool tip heats up to the selected temperature. -
Page 7: Control Screen
CONTROL SCREEN Selected temp. 3 5 0 Tip temperature P o w e r 1 0 % % Instant power supplied to the tool Decrease & move down Increase & move up Access Menu & Confirm Selection SETTINGS MENU ORIGINAL PIN: 0105 M a i n m e n u Exit Reset settings... - Page 8 - Output Peak Power CD-S: 40W. - Safety transformer, mains separator and double isolation. - CD-2BC / CD-2SC 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. - CD-1BC / CD-1SC 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. - CD-9BC / CD-9SC 100V 50/60Hz. Input fuse: 2A. Output: 23,5V.
