jbc CS-1F Instruction Manual

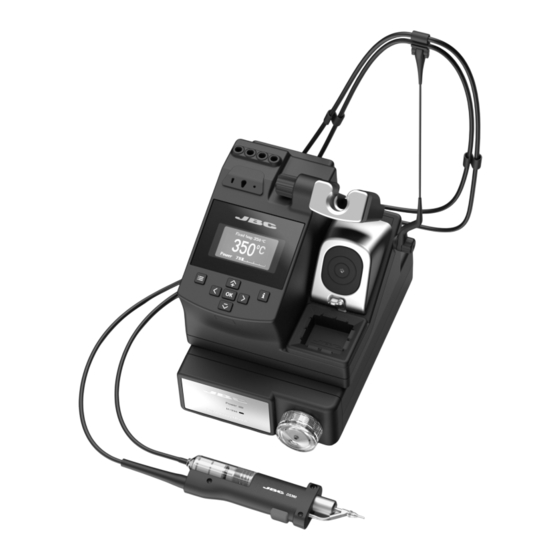

Desoldering station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
CDD
Desoldering Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-1F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc CS-1F

Summary of Contents for jbc CS-1F

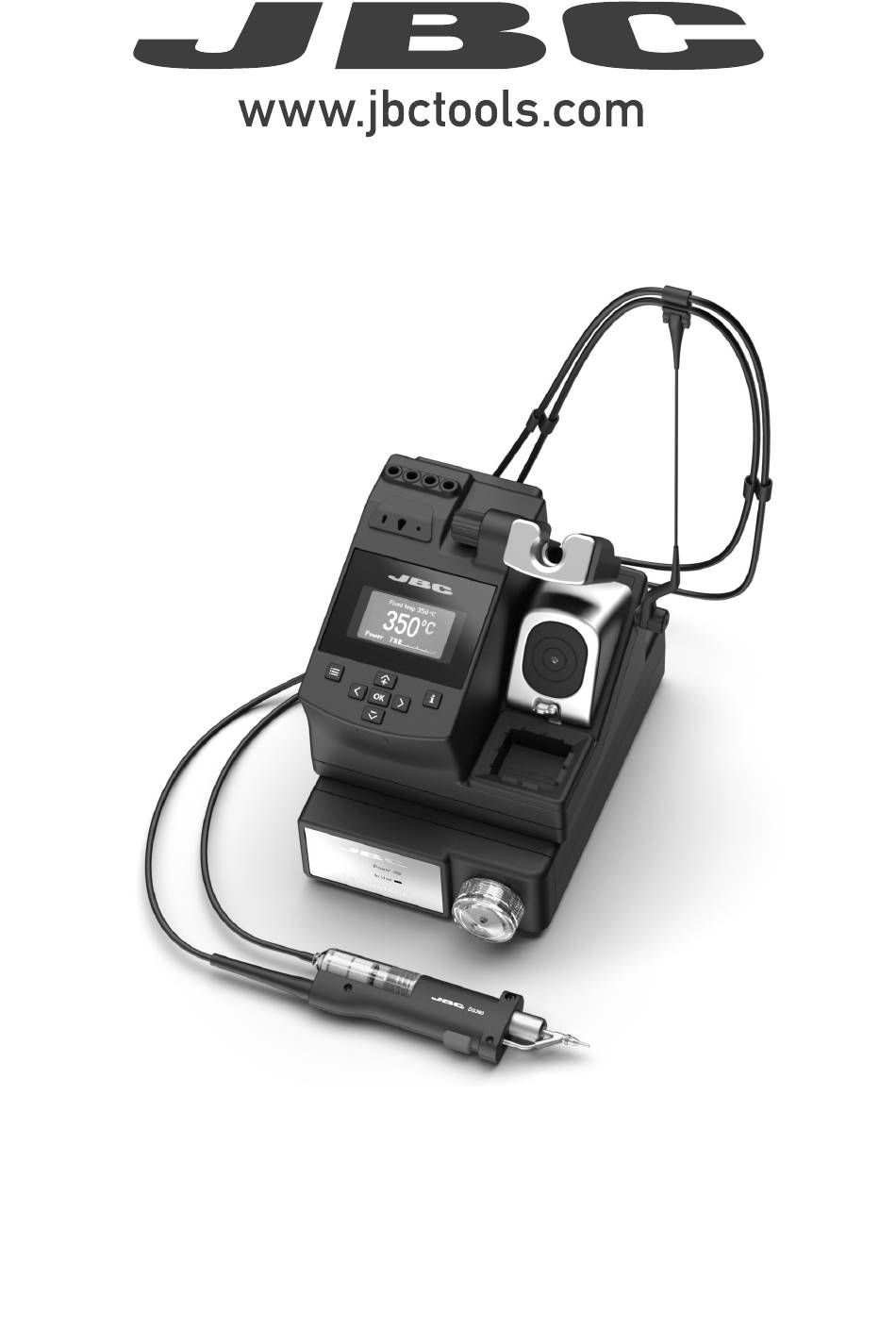

  • Page 1 INSTRUCTION MANUAL Desoldering Station...

  • Page 2: Packing List

    This manual corresponds to the following references: - CS-1F (120V) - CS-2F (230V) - CS-9F (100V) Packing List The following items are included: Control Unit ........... 1 unit Micro Desoldering Iron ......1 unit Ref. DS360-A C360004 already inserted Power Cord .....1 unit Sponge ......
  • Page 3 para manuales - color gris 200 mm 130 mm 130 mm DS360 Accessories Ref. 0010259 100 mm Tips ......10 units Union Flanges ..2 units Filter ......2 units 80 mm Ref. C360002 (x5) Ref. 0011356 Ref. 0008473 C360004 (x5) 60 mm 50 mm 40 mm...

  • Page 4: Features And Connections

    Features and Connections Cable Collector Adjustable Stand: Intelligent Heat Management Process Screen Tip Cleaner Brass Wool with Antisplash Membrane and Wiper Micro Desoldering Iron DS360 Power Socket USB-B Connector Equipotential Connection Fuse Earth Fuse Main switch Fume Extractor Connector Module Cable Ref.

  • Page 5: Adjustable Stand

    If the tip is very dirty, JBC recommends cleaning it with the wiper first to remove excess solder. Wiper CL7984 (red) / CL0160* (black) A temperature resistant receptacle for removing excess solder by gently tapping or wiping.

  • Page 6: Removing The Splashguard

    Removing the Splashguard 1. Unlock the splashguard. 2. Lift off. Lock More cleaning options: Inox Wool Metal Brush CL6205* CL6220* Stronger cleaning When used carefully, method than brass it provides a more wool. thorough cleaning. Wiper Sponge CL7984 (red) / CL0160* (black) S0354 Tapping: Wiping:...

  • Page 7: Cleaning Tips

    para manuales - color gris 200 mm Tip Care 130 mm 130 mm To prevent tip oxidation cover tip with solder tin when not in use. Note: Do not press the vacuum pump button while tinning the desoldering tip, as the fumes given off by the flux would quickly block the ducts and the air filter.
  • Page 8 Compatible Tips The CDD stations work with C360 tips and DS360 irons. Find the model that best suits your needs in www.jbctools.com Through-Hole Desoldering Tips C360001 C360002 Ø A= 1 mm (0.04 in) Ø A= 1,2 mm (0.05 in) Ø B= 0,6 mm (0.02 in) Ø...
  • Page 9 para manuales - color gris 200 mm Desoldering Process 130 mm 130 mm When desoldering, use a tip with a diameter larger than the pad being desoldered. This will achieve maximum suction and thermal efficiency. 100 mm 1. Apply the tip so that it fits 2.
  • Page 10 3. Insert the new heating element into the tool. 4. Tighten the fixing screw and insert the filter. Changing Iron Filter 1. Remove the tube from the filter. 2. Remove the filter form the tool. 3. Insert a new filter (ref. 0008473) into the tool and mount the tube onto the filter.
  • Page 11 para manuales - color gris 200 mm Cleaning Solder Collector 130 mm 130 mm Note: For this operations, turn off the station or disconnect the tool and wait until the tool temperature drops to room temperature. 100 mm 1. Remove the filter before cleaning the solder 2.
  • Page 12 Electric Desoldering Module Note: Before carrying out maintenance, always unplug the equipment. If there is loss of suction, check that there is no obstruction in the tool (tip, heating element, tool filter), tube or suction filters. Changing Pump Filters Periodically check the filters and replace them if they are yellowish. Note: Do not use sharp pointed objects to open the suction filter.

  • Page 13: Operation

    200 mm Operation 130 mm 130 mm The JBC Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. 100 mm As a result, tip life increases up to 5.

  • Page 14: Control Process

    Control Process Work Screen Displays a specific fixed temp. Fixed temp. 3 5 0 3 5 0 Shown when you have selected Levels ºC 2 7 0 2 7 0 3 5 0 3 5 0 4 0 0 4 0 0 temp.

  • Page 15: Station Settings

    (e. g. riveting). (e.g. multilayered or high Min. temp. by default is 200ºC dissipation boards), JBC (392ºF). This is considered to strongly recommends using be a proper starting point for other aids like preheaters.

  • Page 16: Tool Settings

    Tool Settings Parameter Description Recommendations Warnings Ideal for soldering more than Fix One Temperature Fix a value within the one component at a specific temperature range of the temperature. The station will station (90-450ºC/190-840ºF). reject any attempt to change the temperature. Temperature Levels Set This allows a quick change Similar to “Fix one temp”...
  • Page 17 40 mm It provides a more precise (± 90°F) to achieve zero error. When the user changes adjustment between the JBC strongly recommends the cartridge type, the selected temperature and the the use of TID-A or TIA-A parameter should be reset actual one.
  • Page 18 Update the station software via USB connection: Cable USB A-B Updater JBC Web Manager Lite www.jbctools.com/manager.html Manage and monitor as many stations as your PC can handle by using JBC Web Manager Lite. Data can be exported to another PC. any JBC station Cable USB A-B...

  • Page 19: Maintenance

    - Periodically check all cables and tubes. 40 mm - Replace any defective or damaged pieces. Only use original JBC spare parts. - Repairs should only be performed by a TOOL JBC authorized technical service.
  • Page 20 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
  • Page 21 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 22 Notes...

  • Page 23: Specifications

    130 mm 130 mm Desoldering Station 100 mm Ref. CS-1F 120V 50/60Hz. Input fuse: T2A. Output: 23.5V. Ref. CS-2F 230V 50/60Hz. Input fuse: T1A. Output: 23.5V. Ref. CS-9F 100V 50/60Hz. Input fuse: T2A. Output: 23.5V. - Output Peak Power CS-F:...
  • Page 24 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
