- Page 1 INSTRUCTION MANUAL Manual-Feed Soldering Station...
-
Page 2: Packing List

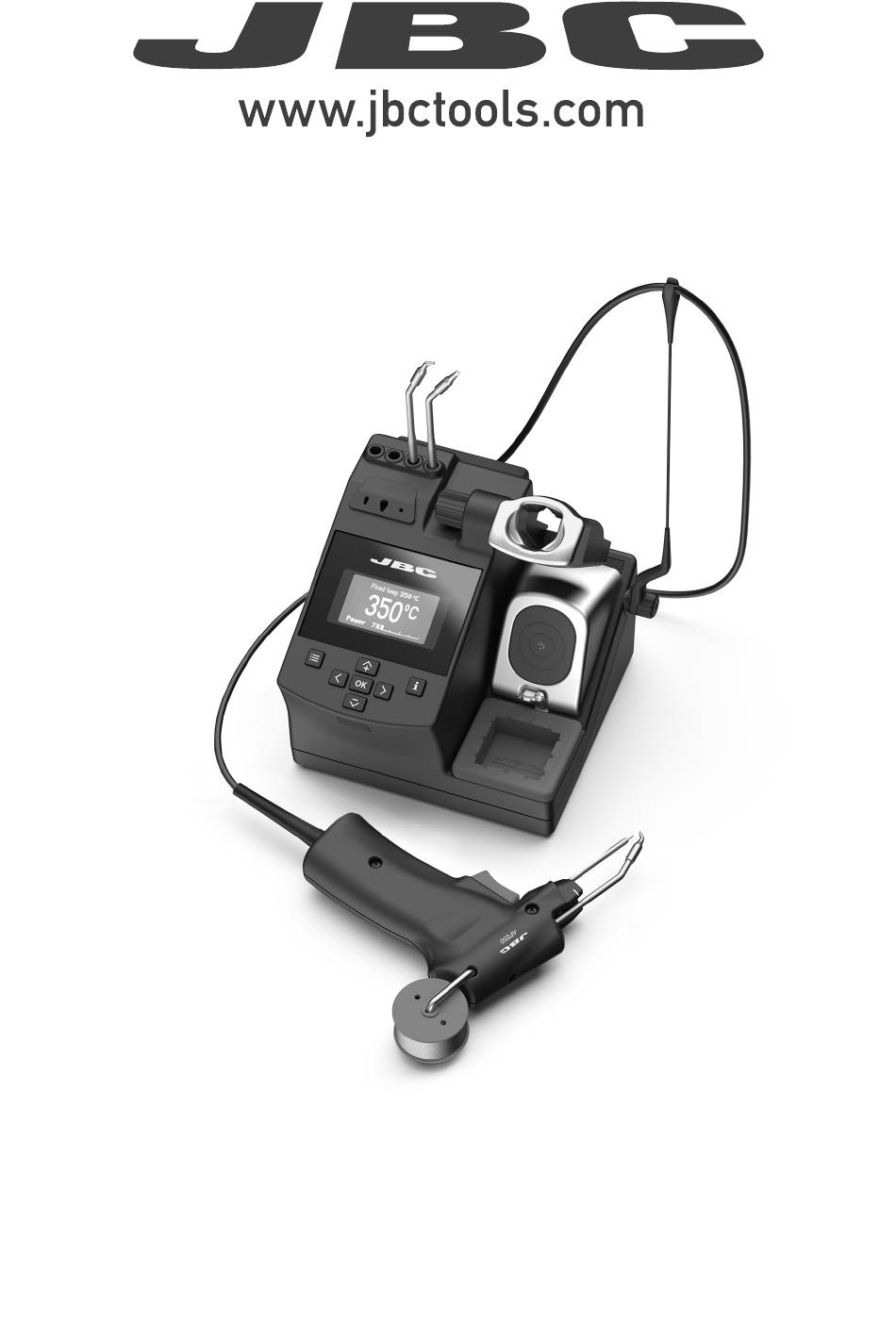

This manual corresponds to the following references: CA-9QG (100V) CA-1QG (120V) CA-2QG (230V) Packing List The following items are included: Cartridge * Solder Reel Feeder Nozzle Manual-Feed Soldering Station ..1 unit Manual-Feed Soldering Iron ....1 unit Ref. AP250-B Supplied with: - Feeder Nozzle for wire Ø 0.8 - 1 mm... - Page 3 para manuales - color gris 200 mm 130 mm 130 mm 100 mm Brass Wool ..........1 unit Sponge ............1 unit Ref. CL6210 Ref. S0354 80 mm 60 mm 50 mm 40 mm Pliers ............. 1 unit Philips Screwdriver PH1x50 ....1 unit Ref.
-
Page 4: Features And Connections
Features and Connections Adjustable Adjustable Tool Holder Cable Collector Cartridge Holder Tip Aligner Display Tip Cleaner with Antisplash Membrane (Brass Wool inside) Wiper C250 Cartridge Range (not included, sold separately) AP250 Manual-Feed Soldering Iron Equipotential Connector Main Switch Earth Fuse Fuse USB-B Connector Power Socket... -
Page 5: Tip Cleaner
Leaves a small layer of solder on the tip preventing oxidation between cleaning and rewetting. If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder. CL7984 Wiper A temperature-resistant receptacle for removing... - Page 6 Wool/Brush Replacement 1. Unlock the splashguard. 2. Lift off the splashguard and change the worn brasswool/brush for a new one. Wool Lock More cleaning options: CL6205 CL6220 Inox Wool* Metal Brush* Stronger cleaning method than When used carefully, it provides brass wool.
-
Page 7: Changing Cartridges
para manuales - color gris 200 mm Changing Cartridges 130 mm 130 mm To change a catridge safely, unplug the tool or turn off the station before following these guide- lines. 100 mm 1. Removing 2. Inserting Mark 80 mm 60 mm 50 mm Loosen the screw and remove the cartridge. -
Page 8: Compatible Cartridges
Compatible Cartridges CA stations work with C250 cartridges and AP250 Solder Feed Irons. Find the model that best suits your soldering needs in www.jbctools.com ø 3,5 1,8x0,8 ø 1,5 Bevel Conical Bent Chisel Chisel Bent Replacing Solder Wire 1. Removing 2. - Page 9 para manuales - color gris 200 mm Changing Feeder Nozzle 130 mm 130 mm Unplug the tool or turn off the station before following these guidelines 100 mm 1. Unscrew the rear screw, than remove the reel and the solder wire from the nozzle. 80 mm 60 mm 50 mm...
- Page 10 4. Take out the feeder nozzle and replace it with the new one while holding the three components (trigger, slider and lever), identified in the picture, in place. Reassemble the cover and tighten the three screws. Feeder Nozzle Note: Do not disassemble these 3 components and it is imperative to hold them in its place.
-
Page 11: Operation
130 mm 130 mm JBC’s Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life is five times longer than with other brands. -
Page 12: Control Process
Control Process Work Display Displays a specific fixed temp. Fixed temp. 3 5 0 3 5 0 Shown when you have selected Levels ºC 2 7 0 2 7 0 3 5 0 3 5 0 4 0 0 4 0 0 temp. - Page 13 (e. g. riveting). (e.g. multilayered or high Defaut min. temp. is 200 ºC dissipation boards), JBC (392 ºF). This is considered to strongly recommends using be a proper starting point for other aids like preheaters.
- Page 14 Tool Settings Parameter Description Recommendations Warnings Ideal for soldering more than Fix One Temperature Fix a value within the one component at a specific temperature range of the temperature. The station will station (90-450 ºC/190- reject any attempt to change 840 ºF). the temperature.
- Page 15 It provides a more precise / ± 90 °F to achieve zero error. When the user changes adjustment between the JBC strongly recommends the cartridge type, the selected temperature and the the use of TID-A or TIA-A parameter should be reset actual one.
-
Page 16: Usb Connector
USB Connector Download the latest software from our website to improve your soldering station. JBC Updater www.jbctools.com/software.html Update the station software via USB connection: USB A-B cable Updater... -
Page 17: Maintenance
- Periodically check all cables. - Replace any defective or damaged pieces. Only 40 mm use original JBC spare parts. - Repairs should only be performed by a JBC authorized technical service. EARTH When this warning appears on the main FUSE display, earthing fuse must be replaced. - Page 18 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
-
Page 19: Specifications
Specifications 130 mm 130 mm Manual-Feed Soldering Station Ref.: CA-9QG 100V 50/60Hz. Input fuse: T2A. Output: 23.5V. Ref.: CA-1QG 120V 50/60Hz. Input fuse: T2A. Output: 23.5V. 100 mm Ref.: CA-2QG 230V 50/60Hz. Input fuse: T1A. Output: 23.5V. - Nominal Power:... - Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
