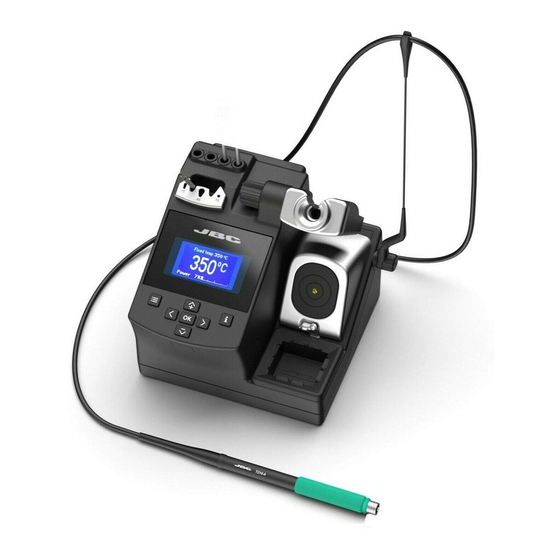

jbc CD-F Manual

Blue Screen Soldering Stations

Model references: CD-F, CA-F, CP-F, CSV-F
Error num. Displayed message
WARNING #1
Short circuit. Check the tool. Replace the
1 cartridge and/or the tool. If the problem
persists, contact the JBC Technical Service
via service@jbctools.com.
WARNING #2
Open circuit. Check the tool. Replace the
2 cartridge and/or the tool. If the problem
persists, contact the JBC Technical Service
via service@jbctools.com.
WARNING #3
Not accepted tool. Replace the tool. Make
3 sure it is compatible with the station. If the
problem persists, contact the JBC Technical
Service via service@jbctools.com.
WARNING #10
Current use is overloading the unit.
Continued use will cause the system to stop.
STOP #10
10
Station overheated. Switch off and wait until
it has cooled down before a new operation.
Consider to use HDE Station if this warning
appears frequently
STOP #11
Transformer temperature sensor error.
11 Restart the station. If the problem persists,
contact the JBC Technical Service via
service@jbctools.com.
STOP #12
Memory error. Restart the station. If the
12
problem persists, contact the JBC Technical
Service via service@jbctools.com.
STOP #13
Mains frequency error. Reset the station
13 after connecting the proper power supply. If
the problem persists, contact the JBC
Technical Service via service@jbctools.com.
WARNING #16
Earthing fuse is blown. Replace the
damaged fuse by a new one. You can press
16
"OK" to continue working, but be aware that
tip to ground resistance would not meet the
specifications in that case.
If problem not solved, contact us:
www.jbctools.com
Solution
Replace the cartridge and/or the tool.
Replace the tool.
Make sure it is compatible with the station.
Unit is overheated
Switch off and wait to cool down before new operation.
Consider working with a more powerful equipment as HDE Heavy Duty station.
Restart the station.
Make sure the station is connected to a 50/60 Hz power source without
interference and restart the station.
Replace the blown earth fuse for a new one.
