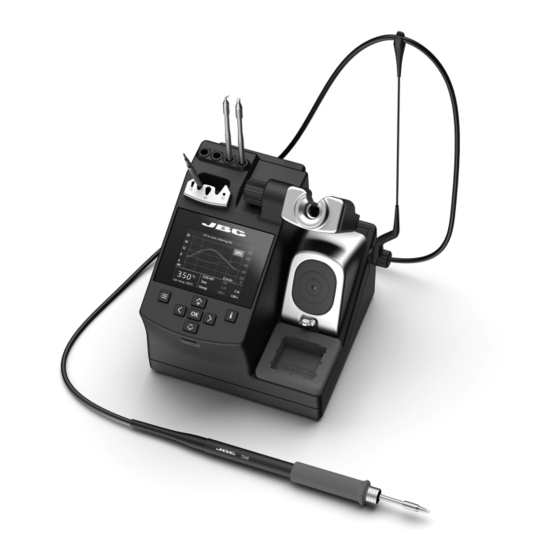

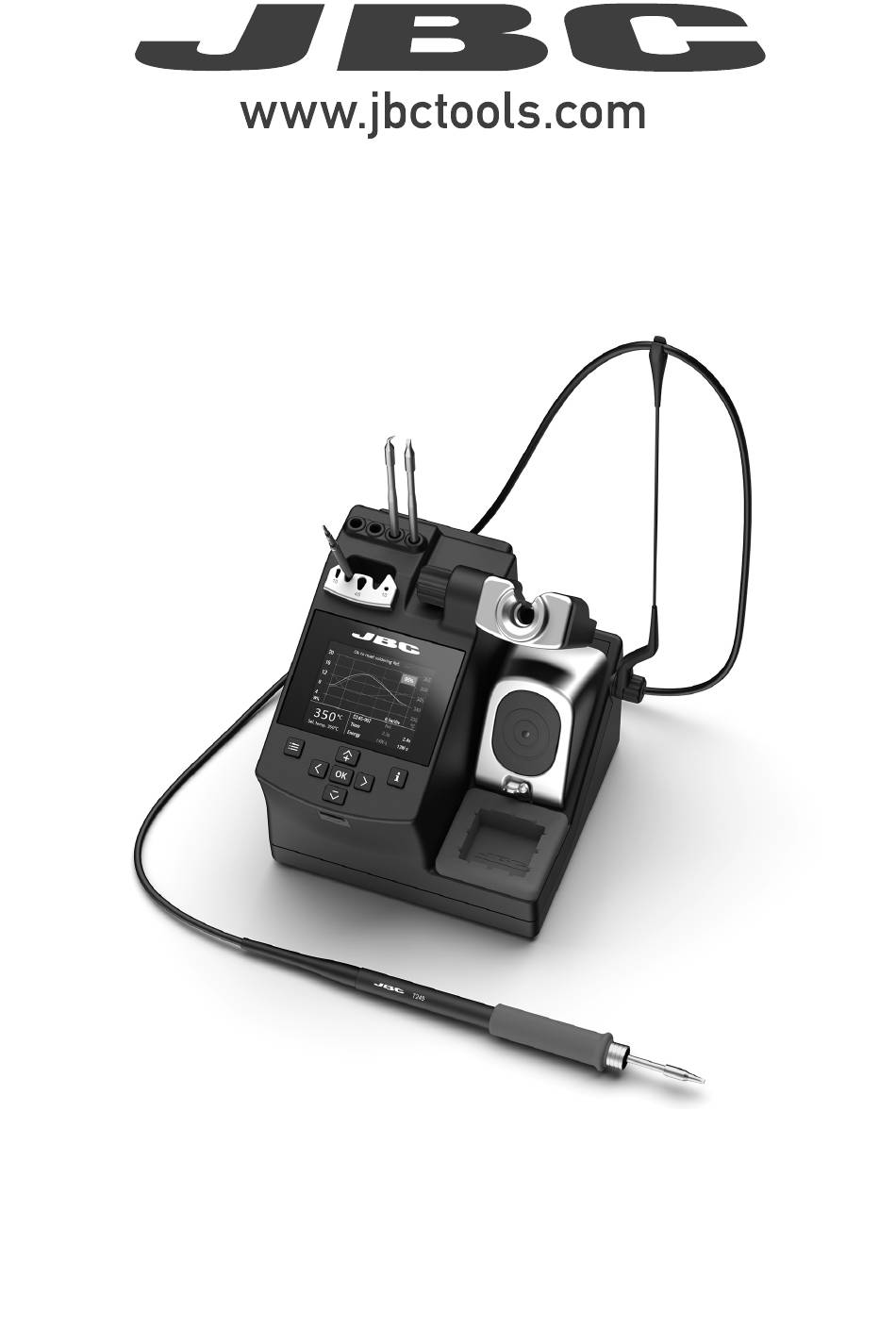

- Page 1 INSTRUCTION MANUAL CDEB Soldering-Assistant Station...
-
Page 2: Packing List
This manual corresponds to the following references: CDE-9BQA (100V) CDE-1BQA (120V) CDE-2BQA (230V) Packing List The following items are included: Control Unit .......... 1 unit General Purpose Handle ...... 1 unit Ref. T245-A Power Cord ............ 1 unit Brass Wool..........1 unit Ref. -
Page 3: Features And Connections
Features and Connections Adjustable Stand: Cable Collector Intelligent Heat Management Cartridge Storage Q u ick Tip Changer Process Screen Tip Cleaner Brass Wool USB-A Connector with Antisplash Membrane and Wiper General Purpose Handle Ref. T245-A... -
Page 4: Troubleshooting
CDEB Work Screen The CDE offers an intuitive user interface which provides quick access to station parameters. Original PIN: 0105 System Notifications Current Tip Temperature System Notifications (Status Bar) USB flash drive is connected. Station is controlled by a PC. Warning. - Page 5 Soldering Assistant The Soldering Assistant allows to analyze and compare manual soldering processes in real time, obtaining a qualification of the process. The station compares all new solderings with the reference soldering profile. According to the soldering performed the station gives the user feedback, displaying a color - red or green - along with the percentage of similarity.
- Page 6 Back Back Tool Settings Tool Settings Counters Counters Reset Reset Exit Exit 1. Soldering Assistant Activation Access to station menu by pressing Back Back Mode Mode Language Language Basic Basic Mode Mode Back Cartridge Back Cartridge Language Language Soldering-Assistant Soldering-Assistant Station Settings Station Settings Mode...
- Page 7 4. Acceptance Limits Setting The JBCs default percentage is: 0-60% 61-100% Red percentage: Green percentage: Less energy was applied (white curve) There is a huge similarity between two than the reference (blue curve), therefore solder joints (white and blue curves) and less time.
- Page 8 6. Working With Soldering Assistant Perform solderings and the station will compare them with the soldering reference. 7. Soldering Joint Information Screen By pressing the access to the detailed parameters for each solder joint. With you can select the curve comparision of the last five solder joints.
