- Page 1 INSTRUCTION MANUAL CLU / CLUP Senior Tip Cleaner with Metal Brushes / Non-Metal Brushes...
-
Page 2: Packing List
Senior Tip Cleaner ........1 unit Metal Brushes for CLU/CLUP & CLR ........2 units Ref. CLMU-A8 Non-Metal Brushes HMP for CLU/CLUP & CLR ......2 units Ref. CLMU-P2 AC Adapter ..........1 unit Manual ............1 unit 0022529 0027496... -
Page 3: Features And Connections

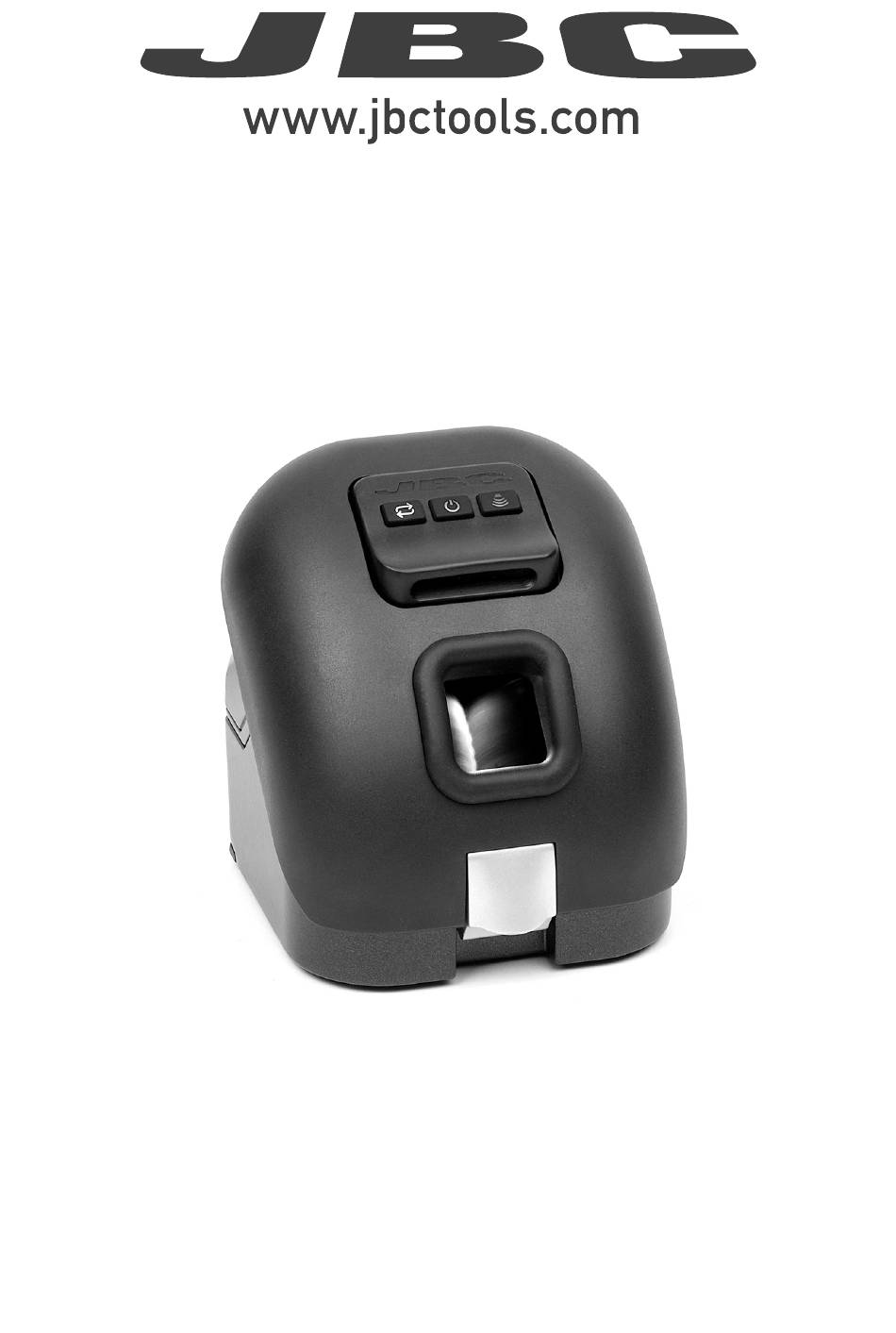

para manuales - color gris 200 mm Features and Connections 130 mm 130 mm 100 mm Switch Panel Splashguard Sensors Window 80 mm Window 60 mm 50 mm 40 mm Locking Tab USB-B Connector Feets for Vertical Power Cord ESD Safe Access Socket Connector... - Page 4 Set Up The CLU/CLUP allows you to choose between continuous operation and sensor operation. The tip cleaner contains a sensor that detects when the soldering cartridge approaches the window and automatically starts the brush rotation. You can choose between 3 different settings for sensor operation:...
-
Page 5: Operation
para manuales - color gris 200 mm Keypad 130 mm 130 mm 100 mm On / Off Sensor Continuous Mode Mode 80 mm Led status - White: Off - Blue: Standby - Green: Brushes activated - Blinking Red: Brushes jammed 60 mm Operation 50 mm... -
Page 6: Changing Brushes
Changing Brushes Before opening the tip cleaner, unplug it from the mains. For CLR, open the side closures and remove For CLU pull the locking tab to open the the slashguard. splashguard. Splashguard Press the brush buttons (1) to remove the brus- Align the brushes with axis and push them in hes (2). - Page 7 para manuales - color gris 200 mm Accessories: Brush Range 130 mm 130 mm All brushes are offered with black and blue core, to distingish them when working with lead-free and leaded solder. 100 mm Note: As a refereance, the cleaning process should last around 1 second. 80 mm CLU8 CLUP1...
-
Page 8: Usb Connector
Update the cleaner software via USB connection: USB AB Cable Updater JBC Manager www.jbctools.com/manager.html Manage and monitor as many stations as your PC can handle by using the JBC Manager. You can export data to another PC. any JBC Station USB AB Cable... -
Page 9: Maintenance
- Check periodically that the sensors window is clean. Use a cotton bud with alcohol to clean it. - Maintain the brushes and the solder collection tray clean. 60 mm - Replace any defective or damaged piece. Use original JBC spare parts only. - Repairs should be performed only by a JBC authorized technical service. 50 mm... - Page 10 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the appliance for any purpose other than tip cleaning. It is not a tool stand. - The AC Adapter power supply must be plugged into approved bases. - Do not leave the appliance unattended when it is running.
-
Page 11: Specifications
- color gris 200 mm Specifications 130 mm 130 mm CLU / CLUP Senior Tip Cleaner with Metal Brushes / Non-Metal Brushes Ref.: CLMU-A with metal brushes 100 mm Ref.: CLMU-PB with HMP non-metal brushes - AC Adapter:... - Page 12 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
