1.19 LOCKING BAND ASSEMBLY
The locking band has a unique profile and must be installed
using the correct orientation. It MUST be located so the snap
lock is only closed from left to right.
1. Attach the drawer to the latch See Fig. 1-4
2. Pull the drawer handle to the left to lock in place. See
Fig. 1-5.
1.20 REPLACING A SEAL
The Elastomer Seal offers many years of troublefree service.
However, improper installation or assembly of the vent can
potentially damage the seal which can cause leakage.
Follow these steps to replace a seal:
1. Remove the old seal and fully clean the location groove for
residue.
2. Apply a thin bead of silicone sealant around the internal
circumference of the seal groove making sure there
is enough to bond the seal to the vent.
3. Position the new seal in the groove and make sure the
vanes of the seal are facing down toward the male end.
4. Once in place, make sure the seal is firmly located back
against the rear end of the seal groove. Make sure there
is no silicone residue on the vanes which can impact the
pressure and condensate resistance of the joint. Allow 24
hours to cure before installing.

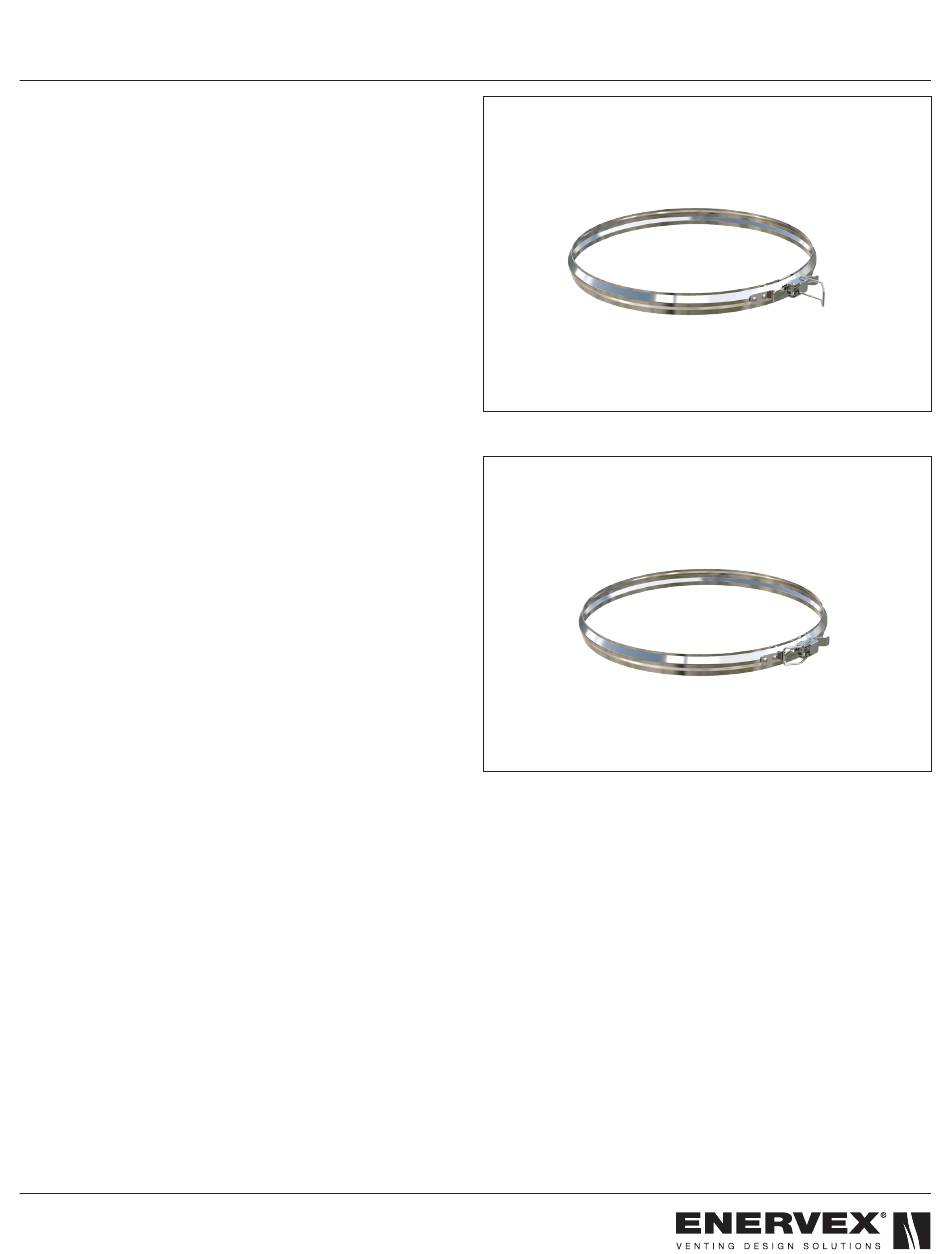

Fig 1-4: Snap Lock - Open
Fig 1-5: Snap Lock - Closed
